B95W
Operation
248 / 306
7
07_Bedienung_en.fm - V1.0 - 1.8.17
26
Actuation – auxiliary control circuit 2 and 3 (optional)
Operating level
for auxiliary
control circuit 2
and 3 (1 or 3)
Depending on the additional tool attached, the operating lever functions for the
additional control circuit (9 or 17) will differ:
• Operating the grab
• Open and close grab
• Rotate grab
Possible additional tools are:
• Sorting grab
• Mowing bucket
•HammerI

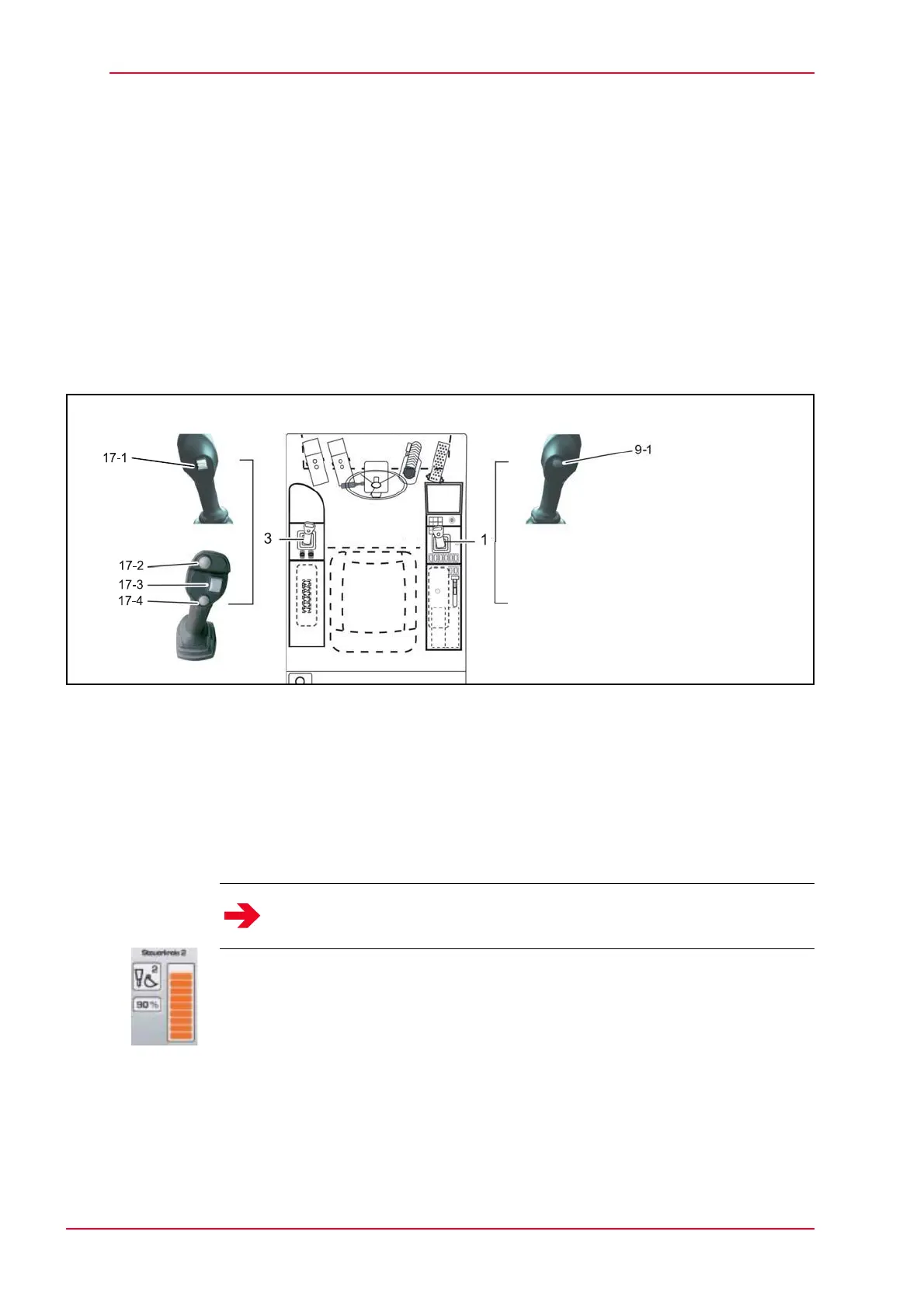

Fig. 7-22 Operating the auxiliary control circuit 2 and 3
9 Joystick – excavating equipment, right
9-1 Continuous operation for additional control circuit (save key)
17 Joystick – excavator equipment, left
17-1 Auxiliary control circuit 3
17-2 Slewing pressure switch
17-3 Actuate dial for auxiliary control circuit 2
17-4 Signal horn
Operating the
hammer
Set max. available oil volume for control circuit 2 or 3 on the display.
J See chapter 5.3.4 “Display”.
Make fine adjustments to the breaker using the dial on the joystick (4 or 6).
Notice
The mounting and operating instructions of the hydraulic rock breaker
manufacturer must be observed.
