Mounting work attachments
Procedure for
changing work
attachments
using the
mechanical
quick-attach
system

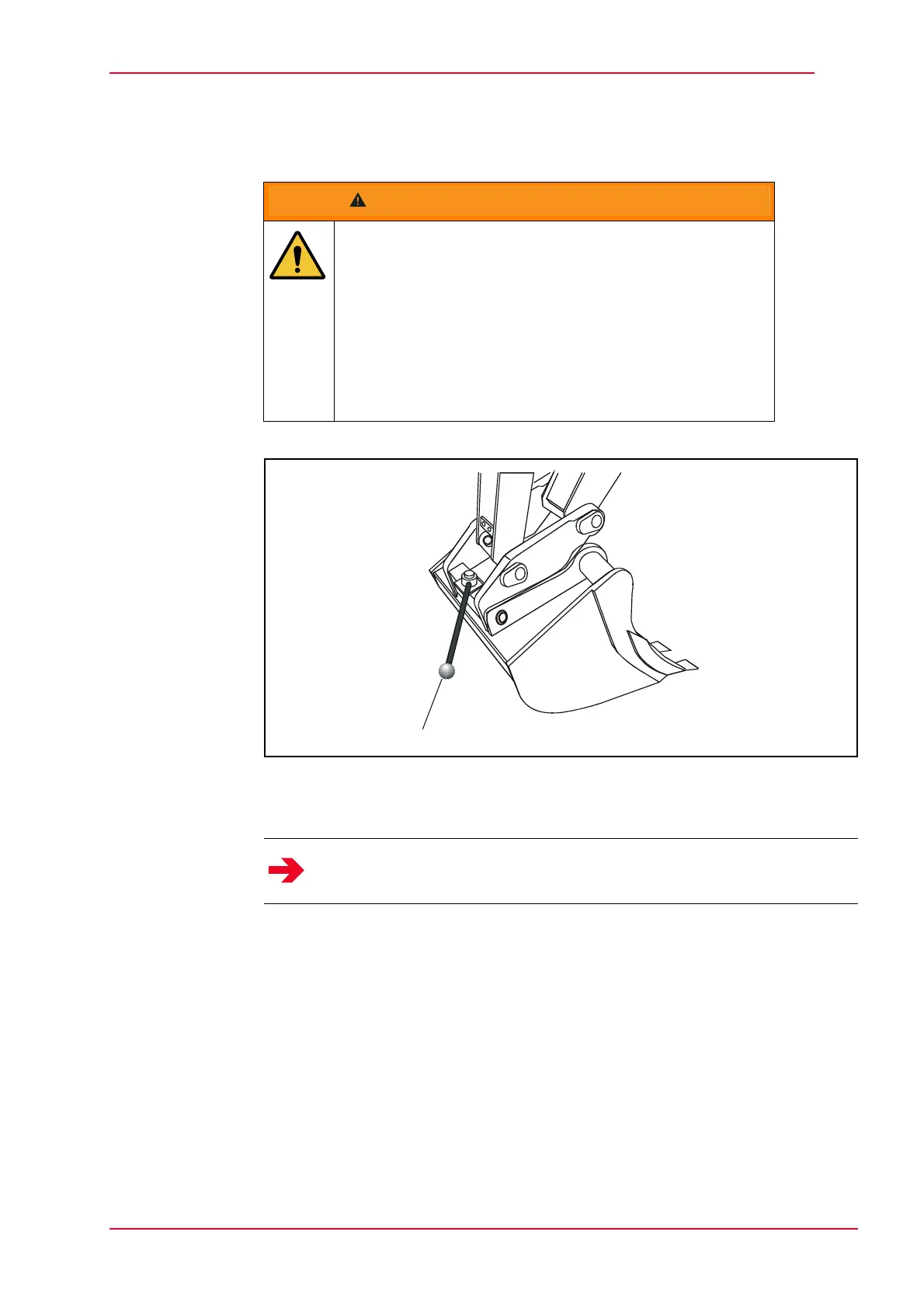

Fig. 7-23 Install working tools
1 Control rod
Place the work attachment on the ground such that it cannot tip or turn over.
Open the quick-attachment system using the control rod (1), until the locking
pins are completely retracted.
Check the function of the quick-attach system lock and grease the bolts, if
required.
J See chapter 6.5.1 “Lubrication schedule”.
Attach another work attachment and close the quick-attach system until the
locking pins are completely extended and the lock has engaged.
Keep the control rod in the driver's cab in the compartment intended for it on
the left of the driver's seat.
Danger due to heavy load
Machine parts may move by accident. Work attachments
may fall down.
Danger of serious injuries.
Z Wear personal protective equipment.
Z Always begin by ensuring that work attachments will not tilt.
Z Do not enter the danger area.
Z After removing work attachments, secure them to prevent
them from tipping over.
Notice
In the case of a hydraulically actuated auxiliary tool, the hydraulic connection
must be loosened. The hydraulic system must be depressurized.
