Hydraulic quick-attachment system (optional)
Picking up work
attachments
Opening the quick-attachment system:
Release the lock on the toggle switch and hold it in the “open quick-attachment
system” position.
At the same time, move the right joystick (9) to the “bucket on”. function, until
the quick-attachment system is unlocked and the tool has been released.
J The locking pins on the quick-attachment system retract.
J The work attachment can be picked up.
Closing the quick-attachment system:
When the tool is released, move the toggle switch to the “Close quick-attachment
system”. and lock the switch.
At the same time move the right joystick (9) until the quick-attachment system
is locked.
J When the rocker switch is not operated, the quick-attach system receives
pressure via the pump control and consequently extends automatically; when
it is extended there is always pump pressure available. This prevents the
locking pins from being opened unintentionally.

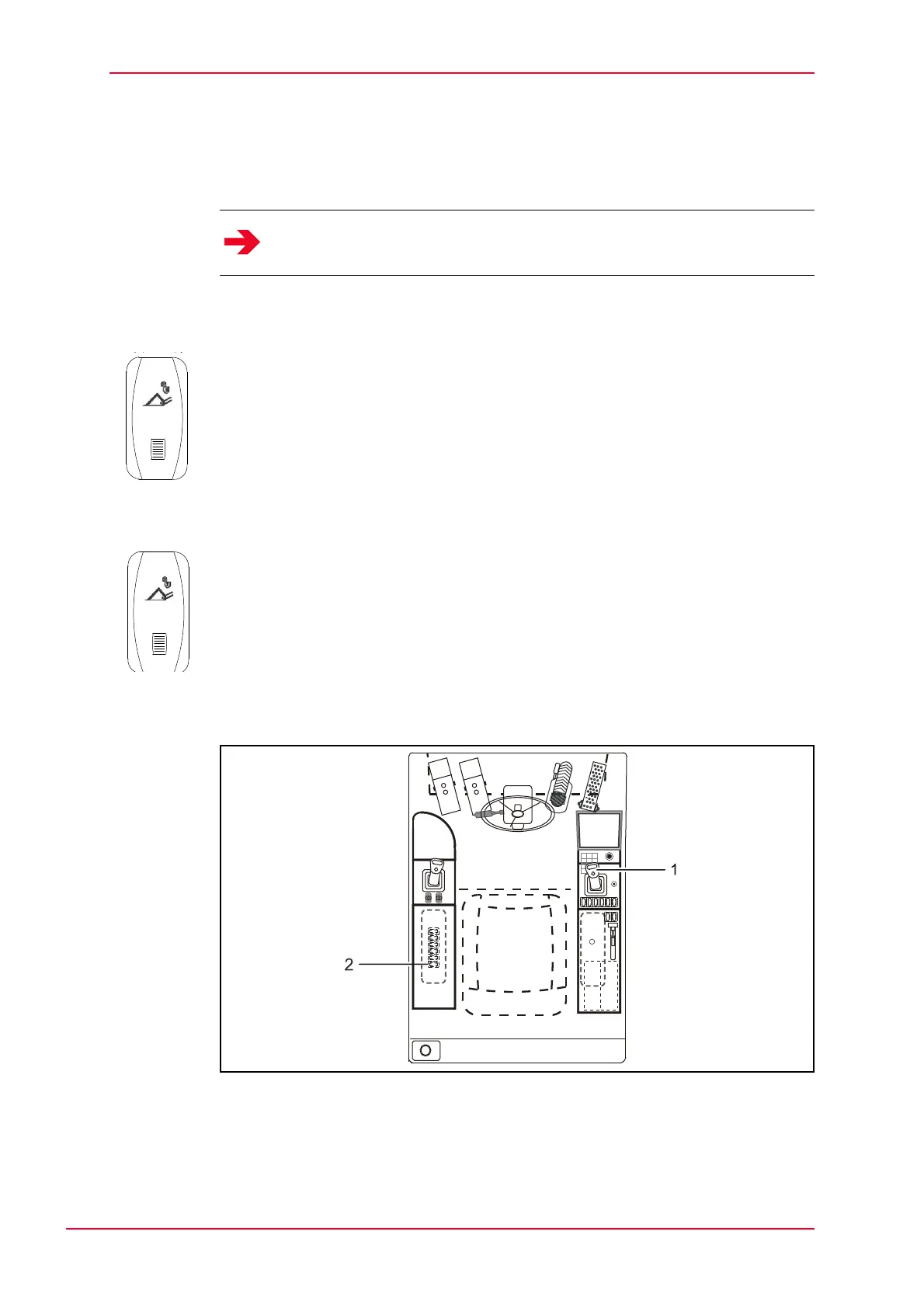

Fig. 7-24 Open/close quick-attachment system
1 Joystick - excavator equipment right
2 Toggle switch to open quick-attach system
Notice
Two-handed operation (safety switching) is required to operate the hydraulic
quick-attachment system.
