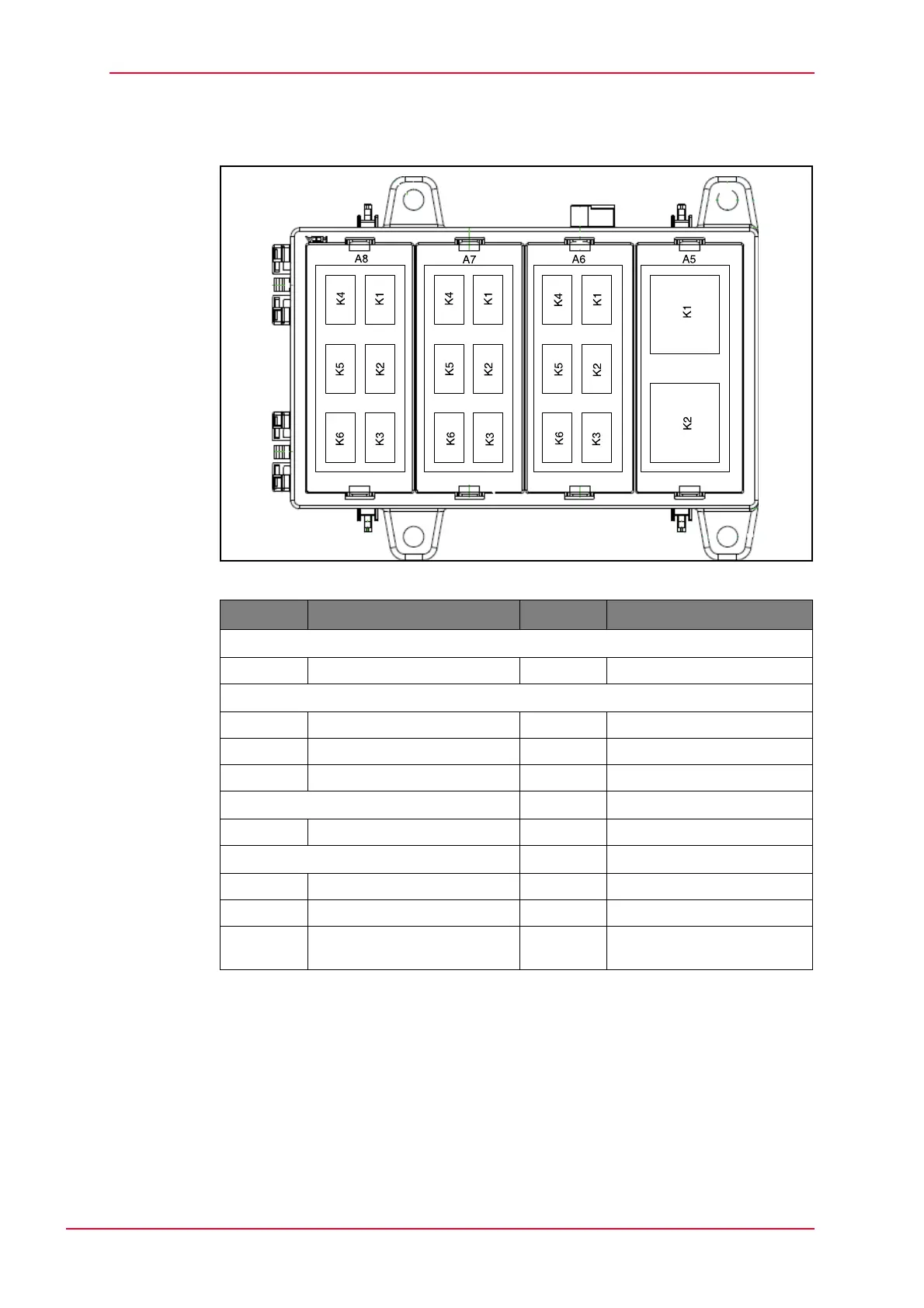

Fig. 5-8 Relay box
Tab. 5-2 Assignment relay box
Location Assigned with relay Position Assigned with relay
Relay block A5
K1 Fuel Pump K2 Hazard warning lights
Relay block A6
K1 Rotating beacons K4 Working floodlight boom
K2 Front working floodlight K5 Changeover ISO/SAE
K3 Rear working floodlight K6 Mirror heating
Relay block A7
K1 Windscreen washer K2 Heater fan
Relay block A8
K1 -- K4 AdBlue
®
heating pressure line
K2 AdBlue
®
heating system K5 AdBlue
®
heating return pipe
K3 AdBlue
®
heating supply module K6 AdBlue
®
heating
Suction Hose
