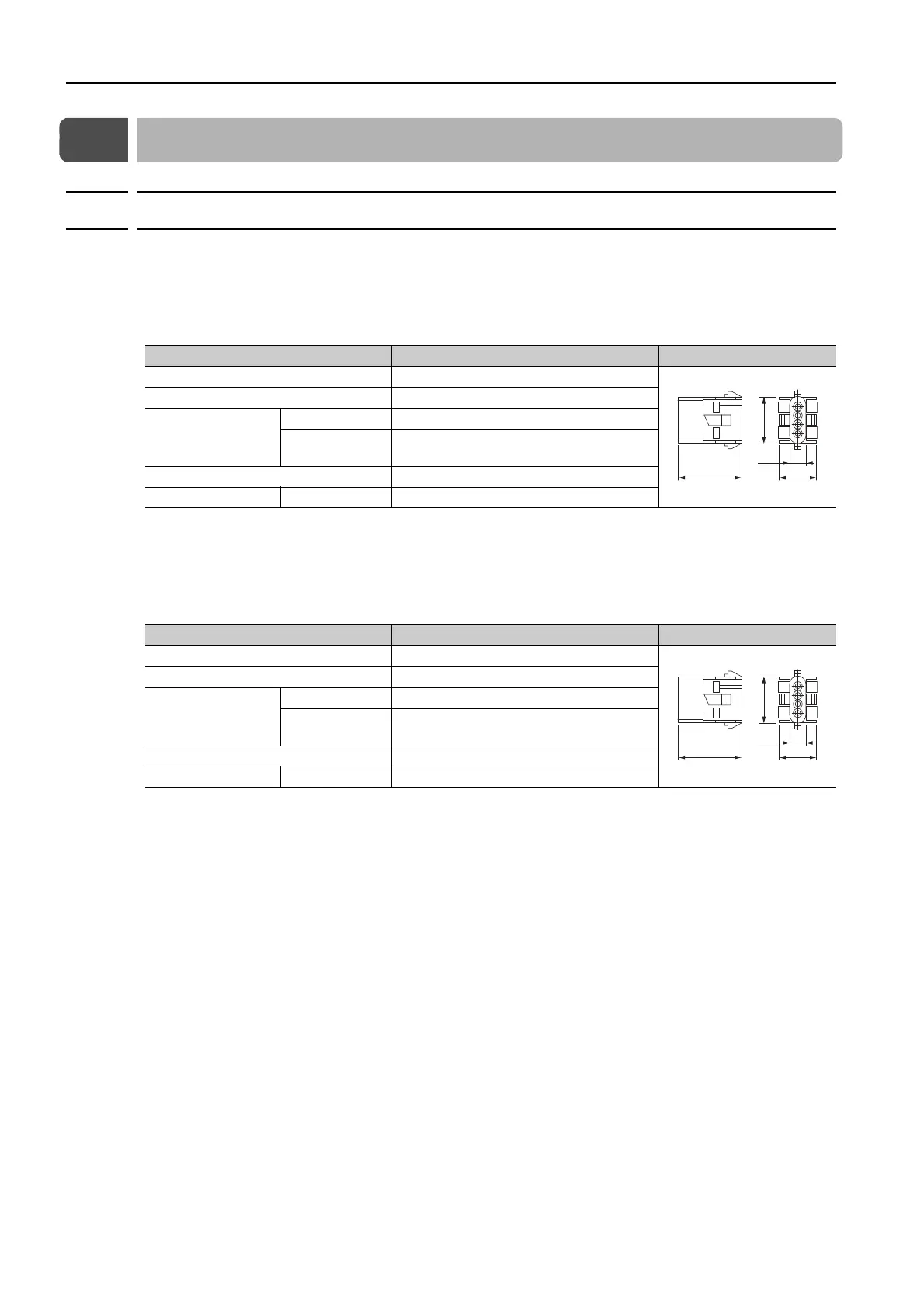

8.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.1 Servomotor Connector Kits
8-12
8.3
User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.1
Servomotor Connector Kits
SGM7D Servomotors
SGM7D-01G, -05G, -H, and -K
(for Standard or Flexible Cables)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
SGM7D-
F, -
G (Excluding -01G and -05G), -
I, -
J,
and -
L (for Standard or Flexible Cables)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CMM9-3-E
Components
Cap 350780-1
Socket
Reeled Sockets: 350570-3,
Loose Sockets: 350689-3
Applicable Wire Sizes AWG18 to AWG24
Crimping Tool* Hand Tool 91510-1
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CMM9-3-E
Components
Cap 350780-1
Socket
Reeled Sockets: 350536-3,
Loose Sockets: 350550-3
Applicable Wire Sizes AWG14 to AWG20
Crimping Tool* Hand Tool 91500-1
