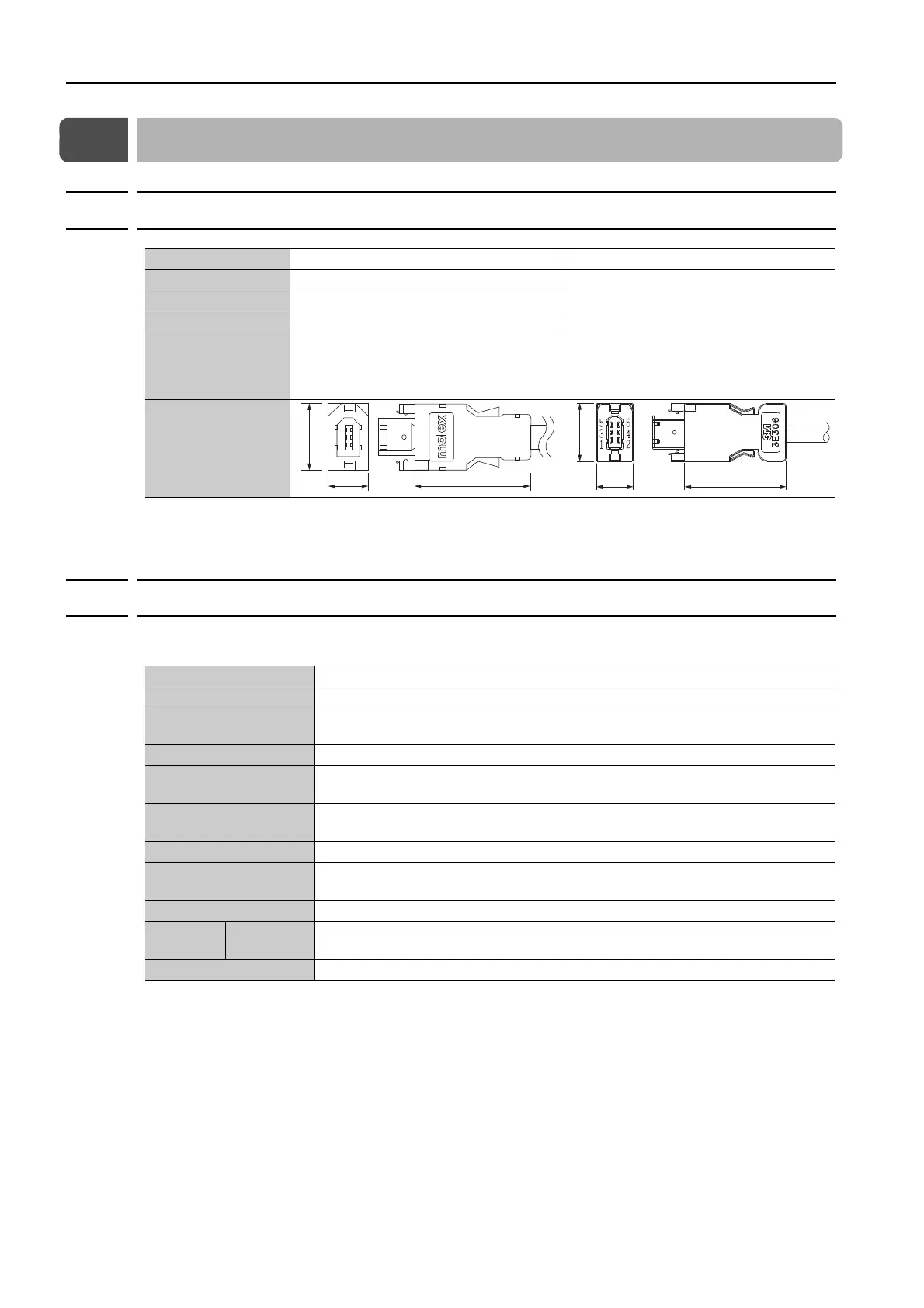

3.6 User-Assembled Wiring Materials for Encoder Cables
3.6.1 SERVOPACK Connector Kits
3-14
3.6 User-Assembled Wiring Materials for Encoder Cables
3.6.1 SERVOPACK Connector Kits
* This item is not available from Yaskawa Controls Co., Ltd. Order it directly from 3M Japan Limited
Note: Cables are not included. Purchase them separately.
3.6.2 Encoder Connector Kits
 Servomotor Connectors
Type Standard Connector Kit Compatible Connector Kit*
Inquires Yaskawa Controls Co., Ltd.
3M Japan LimitedManufacturer Molex Incorporated
Order Number JZSP-CMP9-1-E
Specifications
55100-0670 (soldered)
Product specifications: PS-54280
Receptacle: 3E206-0100 KV (soldered)
Shell Kit: 3E306-3200-008
Product specifications: JNPS-1042
and JNPS-1043
External
Dimensions [mm]
12
3 4
56
(19)
(12)
(33)
(33)
(12)
(19)
Order Number JZSP-C7P9-1-E
Manufacturer Molex Incorporated
Components
504678-0070
Loose Connectors: 56161-8181 (crimped), Reeled: 56161-8081 (crimped)
Applicable Wire Sizes AWG22 to AWG26
Applicable Cable
Diameter
6.3 mm to 7.7 mm
Outer Diameter of
Insulating Sheath
1.05 mm to 1.4 mm
Mounting Screws M2 pan-head screws (two)
Application
Specifications
AS-504682
Crimping Specifications CS-56161
Crimping
Tool*
Hand Tool 57175-5000
Shell Caulking Tool 57331-5100
Continued on next page.
