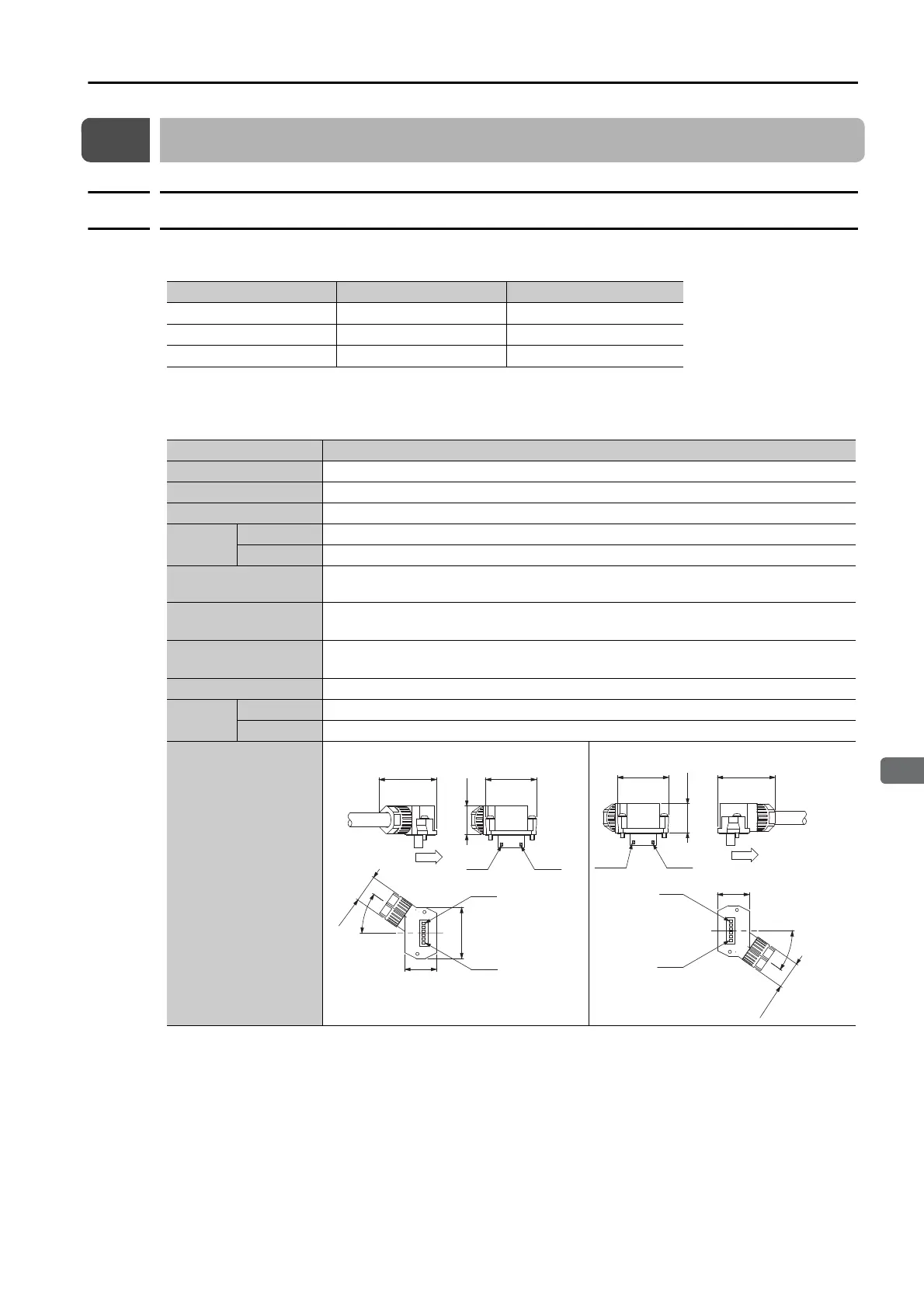

3.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
3.3.1 Servomotor Connector Kits
3-5
3
Cables and User-Assembled Wiring Materials for SGM7J Rotary Servomotors
3.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
3.3.1 Servomotor Connector Kits
Selection Table
* Cables are not included. Purchase them separately.
 SGM7J-A5 to -C2 (for 50 W to 150 W)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Servomotor Model Servomotor Capacity Order Number*
SGM7J-A5 to -C2 50 W to 150 W JZSP-C7M9-1-E
SGM7J-02 to -06 200 W to 600 W JZSP-C7M9-2-E
SGM7J-08 750 W JZSP-C7M9-3-E
Item Description
Order Number JZSP-C7M9-1-E
Manufacturer J.S.T. Mfg. Co., Ltd.
User Instructions JFA Connector J-1700
Compo-
nents
Receptacle J17S-06FMH-7KL-M-CF
Contacts SJ1F-01GF-P0.8
Applicable Wire Sizes
Power terminals: AWG20
Holding brake terminals: AWG20 to AWG24
Applicable Cable
Diameter
7 mm ±0.3 mm
Outer Diameter of
Insulating Sheath
1.11 mm to 1.53 mm
Mounting Screws M2 pan-head screws
Crimp-
ing Tool*
Hand Tool YRS-8841
Applicator APLMK SJ1F/M01-08
External Dimensions
[mm]
 Cable on Non-load Side
 Cable on Load Side
16.1
(29.2)
25.8
14 dia.
35°
25.8
14.7
Motor mounting
surface
Pin 1
Pin 6
Pin 1
Pin 6
25.8
14.7
16.1
(29.2)
14 dia.
35°
Pin 1
Pin 6
Motor mounting
surface
Pin 1
Pin 6
