YASKAWA SGD7W - Servomotor Main Circuit Cables for Servomotors Without Holding Brakes

4.2 Servomotor Main Circuit Cables
4.2.1 Servomotor Main Circuit Cables for Servomotors without Holding Brakes
4-6

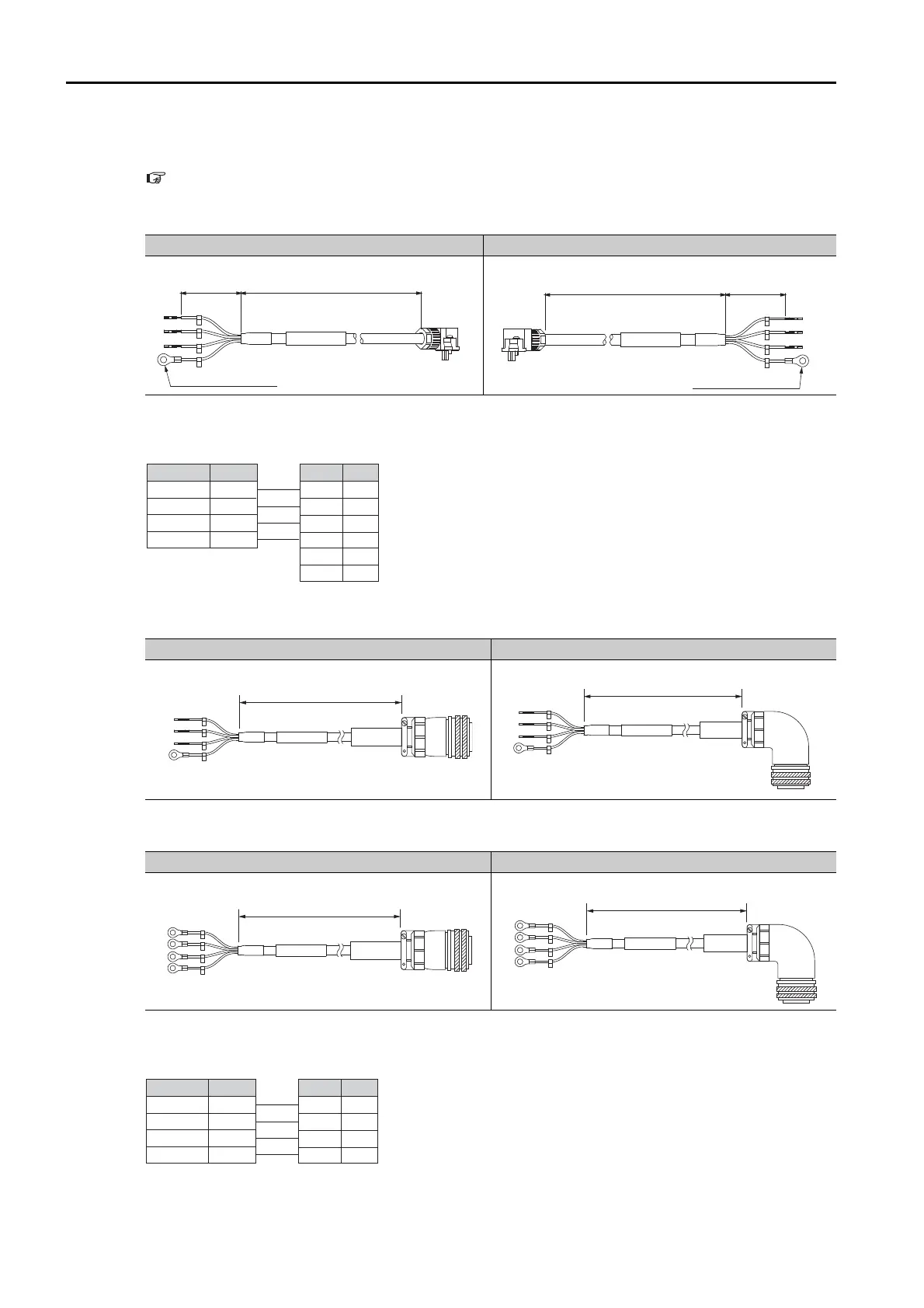

Lead Structure
Note: Refer to the following section for information on connector manufacturers and order numbers.
4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables on page 4-11
 SGM7A-A5 to -10 (50 W to 1.0 kW)
Wiring Specifications
 SGM7A-15 (1.5 kW)
 SGM7A-20 to -70 (2.0 kW to 7.0 kW)
Wiring Specifications
Cable Installed away from Load Cable Installed toward Load
Straight Connector Right-Angle Connector
Straight Connector Right-Angle Connector
U
V
W
G
SERVOPACK end Motor end
50 mm L
M4 crimped terminal
U
V
W
G
SERVOPACK endMotor end
50 mm
L
M4 crimped terminal
PinSignal
SignalWire Color
1
2
3
4
5
6
Servomotor Connector
Phase U
Phase V
Phase W
FG
−
−
Phase U
Phase V
Phase W
FG
Red
White
Blue
Green/yellow
SERVOPACK Leads
L
SERVOPACK end Motor end
L
SERVOPACK end Motor end
L
SERVOPACK end Motor end
L
SERVOPACK end Motor end
PinSignal
SignalWire Color
A
B
C
D
Servomotor Connector
FG
Phase W
Phase V
Phase U
FG
Phase W
Phase V
Phase U
Green/yellow
Blue
White
Red
SERVOPACK Leads
