4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.4 Cables without Connectors
4-20
4.3.4 Cables without Connectors
Selection Table
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, 30, 40, or 50).
 SGM7A-A5 to -06 (50 W to 600 W)
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, 30, 40, or 50).
Servomotor Model
Order Number*
Standard Cable Flexible Cable
SGM7A-A5 to -C2
50 W to 150 W
JZSP-CSM90-
-E JZSP-C7M29--E
SGM7A-02 to -06
200 W to 600 W
SGM7A-08 or -10
750 W or 1.0 kW
JZSP-CSM91-
-E JZSP-CSM81--E
Item Standard Cable Flexible Cable
Order Number*
JZSP-CSM90--E
(maximum length: 50 m)
JZSP-C7M29--E
(maximum length: 50 m)
Specifications
UL2517 (rated temperature:105°C)
AWG20 × 6C
UL2517 (rated temperature:105°C)
AWG20 × 4C, AWG22C × 2C
Power lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
Power lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Holding brake lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
Holding brake lines: AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Finished Diameter 7 mm ±0.3 mm

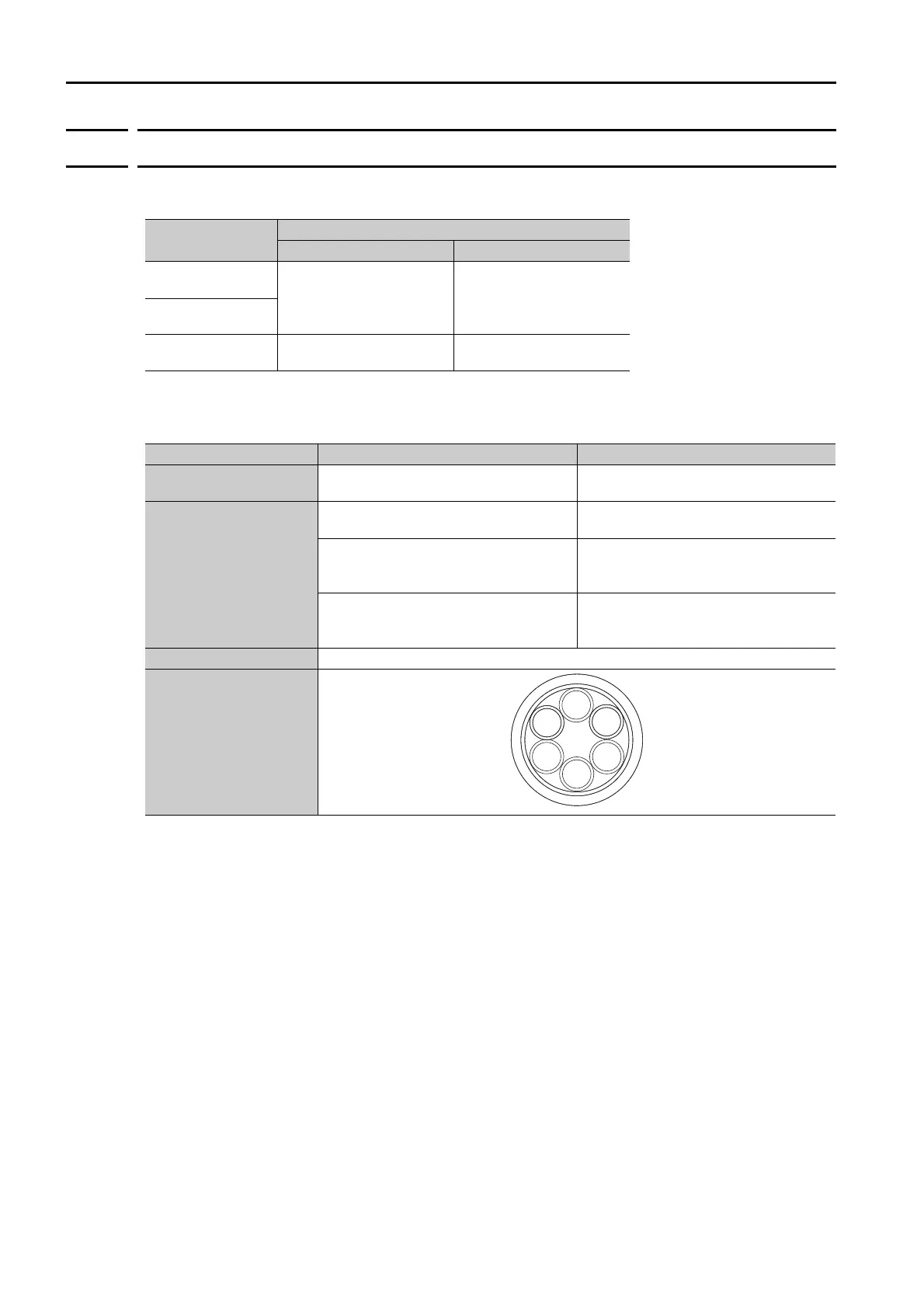

Internal Structure and
Lead Colors
Black
White
Red
Black
Blue
Green
/yellow
