3.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
3.3.2 Cables without Connectors
3-8
3.3.2 Cables without Connectors

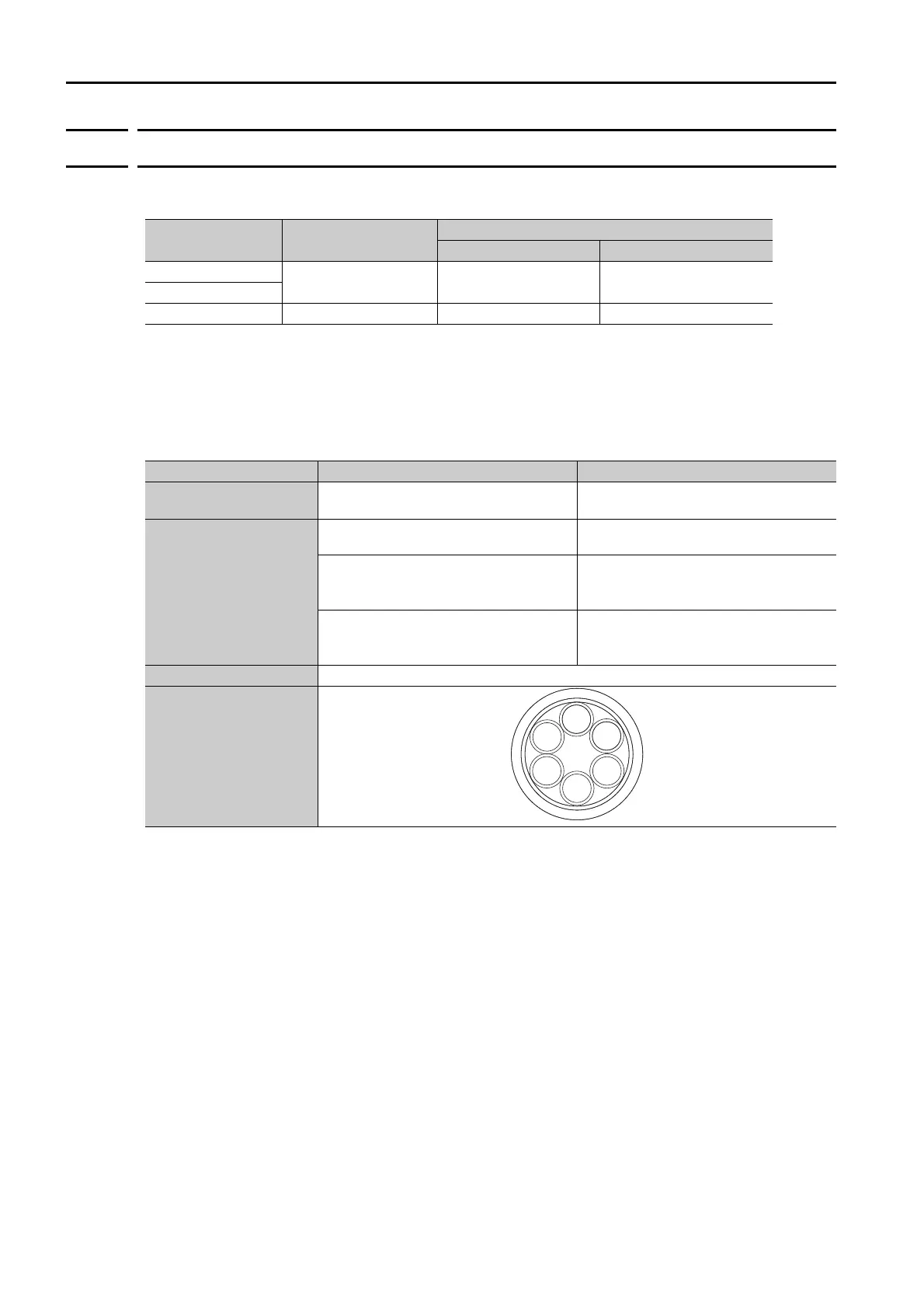

Selection Table
*1. Replace the boxes () in the order number with the cable length (05, 10, 15, 20, 30, 40, or 50).
*2. Use Flexible Cables for moving parts of machines, such as robots.
*3. The recommended bending radius (R) is 90 mm or larger.
Note: If the length of the Servomotor Main Circuit Cable exceeds 20 m, the intermittent duty zone in the torque-
motor speed characteristics will become smaller because the voltage drop increases.
 SGM7J-A5 to -06 (for 50 W to 600 W)
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, 30, 40, or 50).
Servomotor Model Servomotor Capacity
Order Number
*1
Standard Cable Flexible Cable
*2, *3
SGM7J-A5 to -C2
50 W to 600 W JZSP-CSM90-
-E JZSP-C7M29--E
SGM7J-02 to -06
SGM7J-08 750 W JZSP-CSM91-
-E JZSP-CSM81--E
Item Standard Cable Flexible Cable
Order Number*
JZSP-CSM90--E
(maximum length: 50 m)
JZSP-C7M29--E
(maximum length: 50 m)
Specifications
UL2517 (rated temperature:105°C)
AWG20 × 6C
UL2517 (rated temperature:105°C)
AWG20 × 4C, AWG22 × 2C
Power lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
Power lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Holding brake lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
Holding brake lines: AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Finished Diameter 7 mm ±0.3 mm
Internal Structure and
Lead Colors
White
Red
Black
Blue
Green/
yellow
Black
