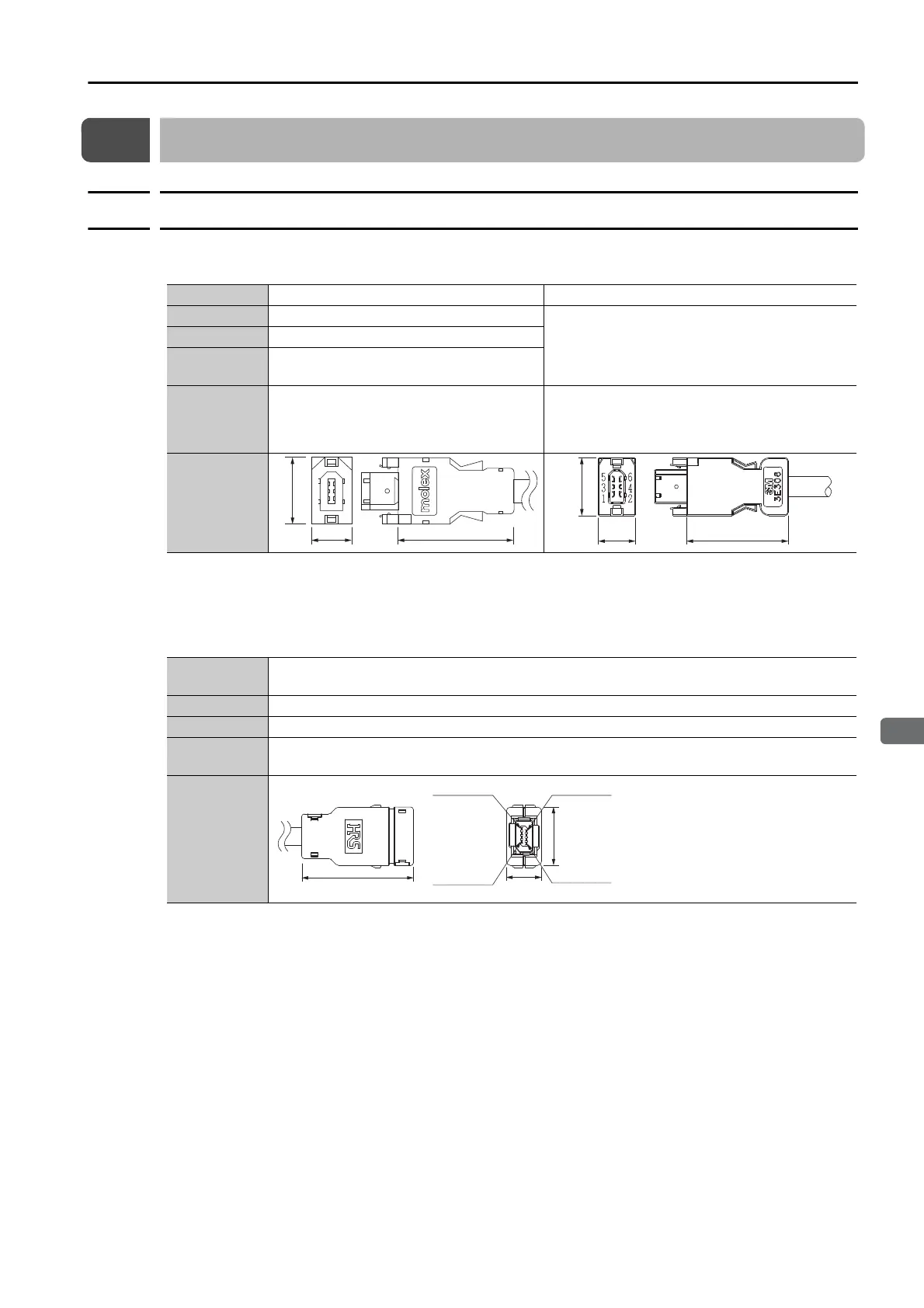

2.4 User-Assembled Wiring Materials for Encoder Cables
2.4.1 Connector Kits
2-7
2
Cables and User-Assembled Wiring Materials for SGM7M Rotary Servomotors
2.4 User-Assembled Wiring Materials for Encoder Cables
2.4.1 Connector Kits
SERVOPACK Connector Kits
* This item is not available from Yaskawa Controls Co., Ltd. Order it directly from 3M Japan Limited.
Note: Cables are not included. Purchase them separately.
Encoder Connector Kits
Type Standard Cable Compatible Connector Kit*
Inquiries Yaskawa Controls Co., Ltd.
3M Japan Limited
Manufacturer Molex Incorporated
Order
Number
JZSP-CMP9-1-E
Specifications
55100-0670 (soldered)
Product specifications: PS-54280
Receptacle: 3E206-0100 KV (soldered)
Shell Kit: 3E306-3200-008
Product specifications: JNPS-1042 and
JNPS-1043
External
Dimensions
[mm]
Order
Number
JZSP-C7MP9-2-E
Manufacturer Hirose Electric Co., Ltd.
Components IX40-A-8P-JC (7.1)
Product
Specifications
SLC-129407
External
Dimensions
[mm]
12
3 4
56
(19)
(12)
(33)
(33)
(12)
(19)
13.9 ± 0.4
8.4 ± 0.426.6 ± 0.4
Terminal No.4 Terminal No.5
Terminal No.1
Terminal No.8
