3.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
3.3.1 Servomotor Connector Kits
3-6
 SGM7J-02 to -06 (for 200 W to 600 W)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Item Description
Order Number JZSP-C7M9-2-E
Manufacturer J.S.T. Mfg. Co., Ltd.
User Instructions JFA Connector J-2700
Compo-
nents
Receptacle J27S-06FMH-7KL-M-CF
Contacts SJ2F-01GF-P1.0
Applicable Wire Sizes
Power terminals: AWG20
Holding brake terminals: AWG20 to AWG24
Applicable Cable
Diameter
7 mm ±0.3 mm
Outer Diameter of
Insulating Sheath
1.11 mm to 1.53 mm
Mounting Screws M2 pan-head screws
Crimp-
ing Tool*
Hand Tool YRS-8861
Applicator APLMK SJ2F/M01-10

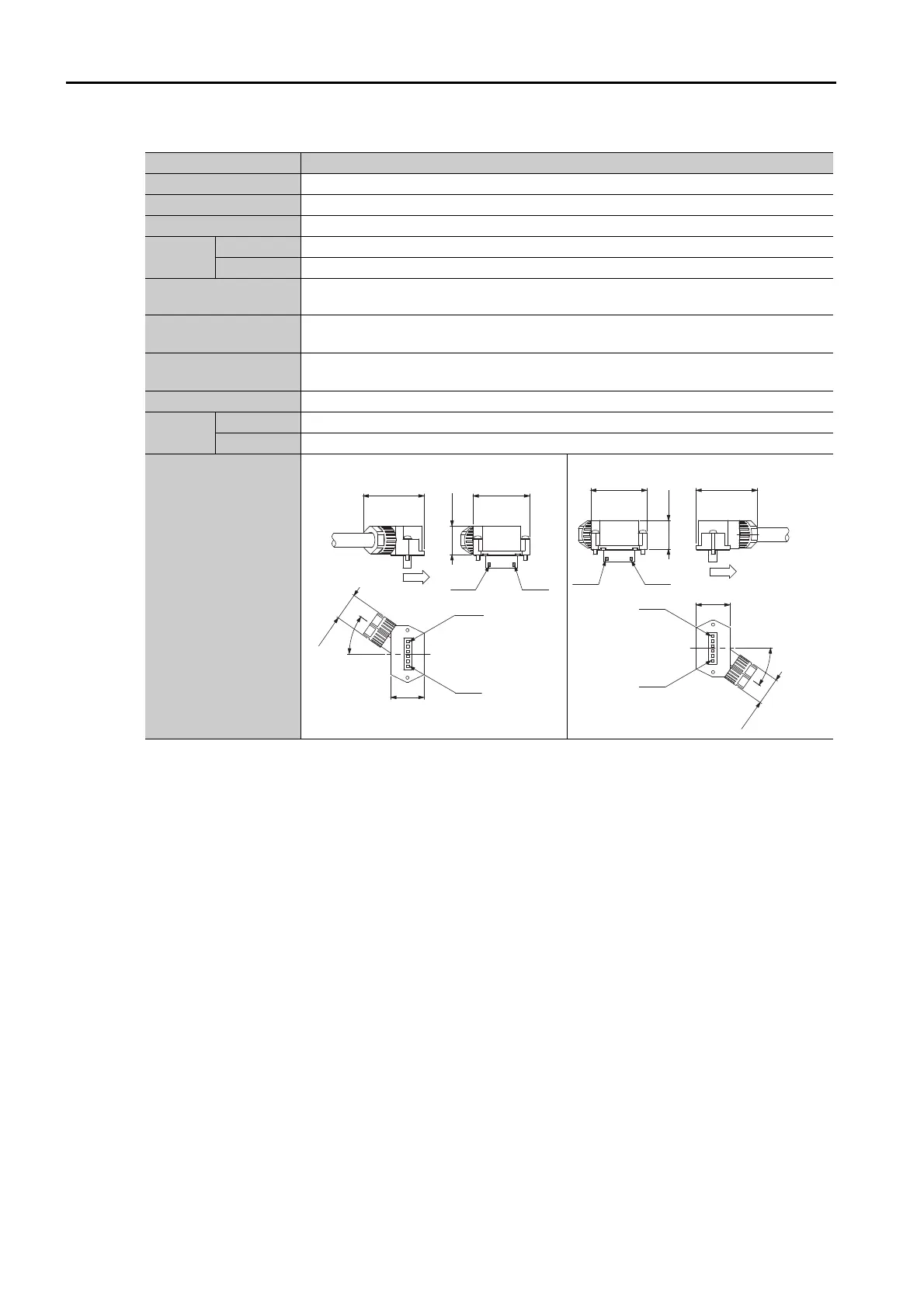

External Dimensions
[mm]
 Cable on Non-load Side
 Cable on Load Side
(31)
17.1
35°
14 dia.
28.7
14.7
Pin 6
Pin 1
Motor mounting
surface
Pin 1 Pin 6
14.7
28.7 (31)
17.1
35°
14 dia.
Motor mounting
surface
Pin 1
Pin 6
Pin 1
Pin 6
