10.1 System Configuration Diagrams and Selection Tables

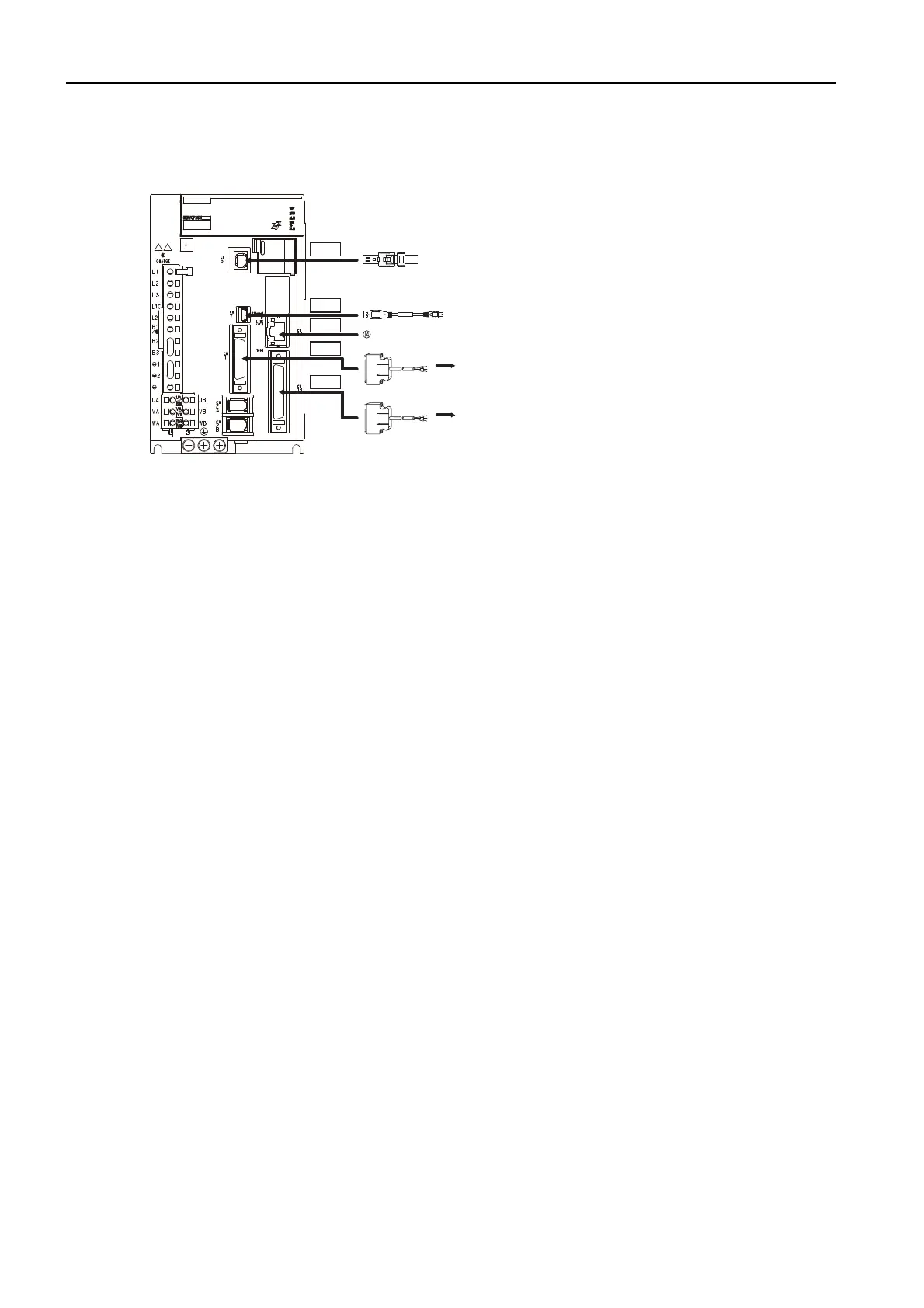

10.1.1 Cable Configurations
10-4
 Σ-7C (Two Axes with Built-in Controller)
SERVOPACKs with Bus Connection Reference
To next
MECHATROLINK-III station
 MECHATROLINK-III
Communications Cable
CN6
CN7
CN1
CN13
CN12
JZSP-CVS06-02-E
 Computer Cable
 I/O Signal Cable
To external devices,
such as LED indicators
 I/O Signal Cable
To external devices,
such as LED indicators
Ethernet Communications Cable
