YASKAWA SGD7W - Page 233

10.5 I/O Signal Cables for SERVOPACKs
10.5.1 For Σ-7S Analog Voltage/Pulse Train Reference SERVOPACKs
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10-15
Connector Kits
 Selection Table
 Wire Sizes
Note: Use a twisted-pair or screened twisted-pair cable.

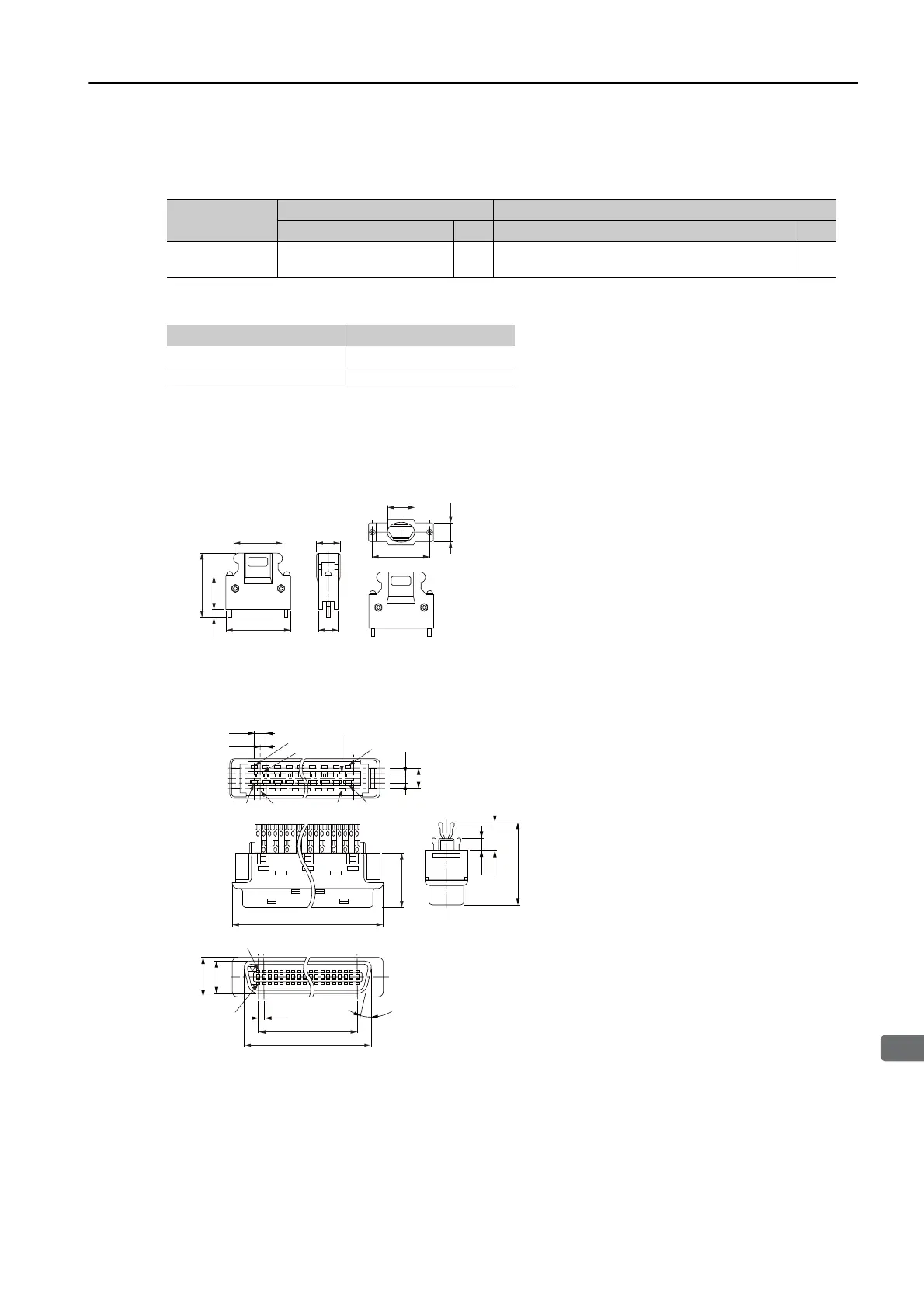

 Dimensional Drawings
 Case
 Connectors
Connector Kit
Order Number
Case Connectors
Model Qty Model Qty
JZSP-CSI9-1-E
10350-52Z0-008
(3M Japan Limited)
1 set 10150-3000PE (soldered) (3M Japan Limited) 1
Item Specification
Applicable Wires AWG24, 26, 28, 30
Cable Finished Diameter 16 mm max.
52.4
12.7
41.1
46.5
17.0
14.0
39.0
23.8
(5.2)
8.5
Unit: mm
2.54
1.27
36.7
30.48
15°
1.27
41.1
5.1
(6.8)
19.5
(2.9)
2.3
12.7
3M
9.1
7.5
Unit: mm
Pin 26
Pin 1
Pin 25Pin 24Pin 2Pin 1
Pin 27
Pin 50
Pin 26
Pin 49
