13.1 SigmaWin+: AC Servo Drive Engineering Tool
13-2

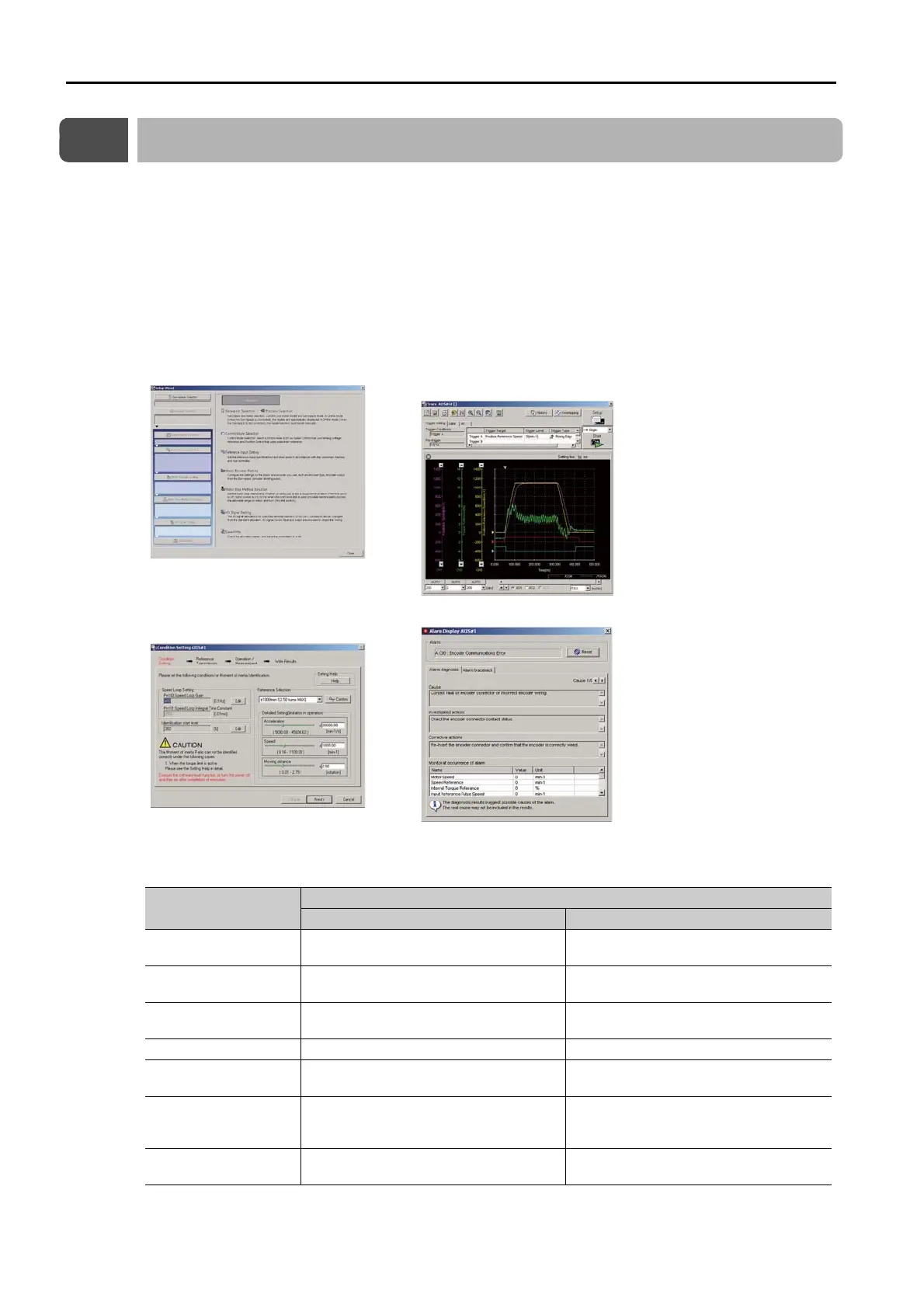

13.1 SigmaWin+: AC Servo Drive Engineering Tool
The SigmaWin+ Engineering Tool is used to set up and optimally tune Yaskawa Σ-series Servo
Drives.
Features
• Sets parameters with a wizard.
• Displays SERVOPACK data on a computer just like on a oscilloscope.
• Estimates moments of inertia and measure vibration frequencies.
• Displays alarms and provides alarm diagnostics.
System Requirements
Setting Parameters with a Wizard Displaying SERVOPACK Data on a Computer
Just Like on an Oscilloscope.
Estimating Moments of Inertia and
Measuring Vibration Frequencies
Displaying Alarms and Alarm Diagnostics
Item
System Requirement
Ver.5 Ver.7
Supported Languages English and Japanese
Japanese, English, and Chinese (simpli-
fied)
OS
Windows XP, Windows Vista, or Win-
dows 7 (32-bit or 64-bit edition)
Windows 10, Windows 8.1, Windows 8,
or Windows 7 (32-bit or 64-bit edition)
Software Environment –
Microsoft .NET Framework 4.5,
.NET Framework 4.6
CPU Pentium 200 MHz min. 1 GHz min. (recommended)
Memory
64 MB min.
(96 MB or greater recommended)
1 GB min. (recommended)
Available Hard Disk
Space
For Standard Setup:
350 MB min. (400 MB or greater recom-
mended for installation)
500 MB min.
Browser used to dis-
play Help
– Internet Explorer 9 or higher
