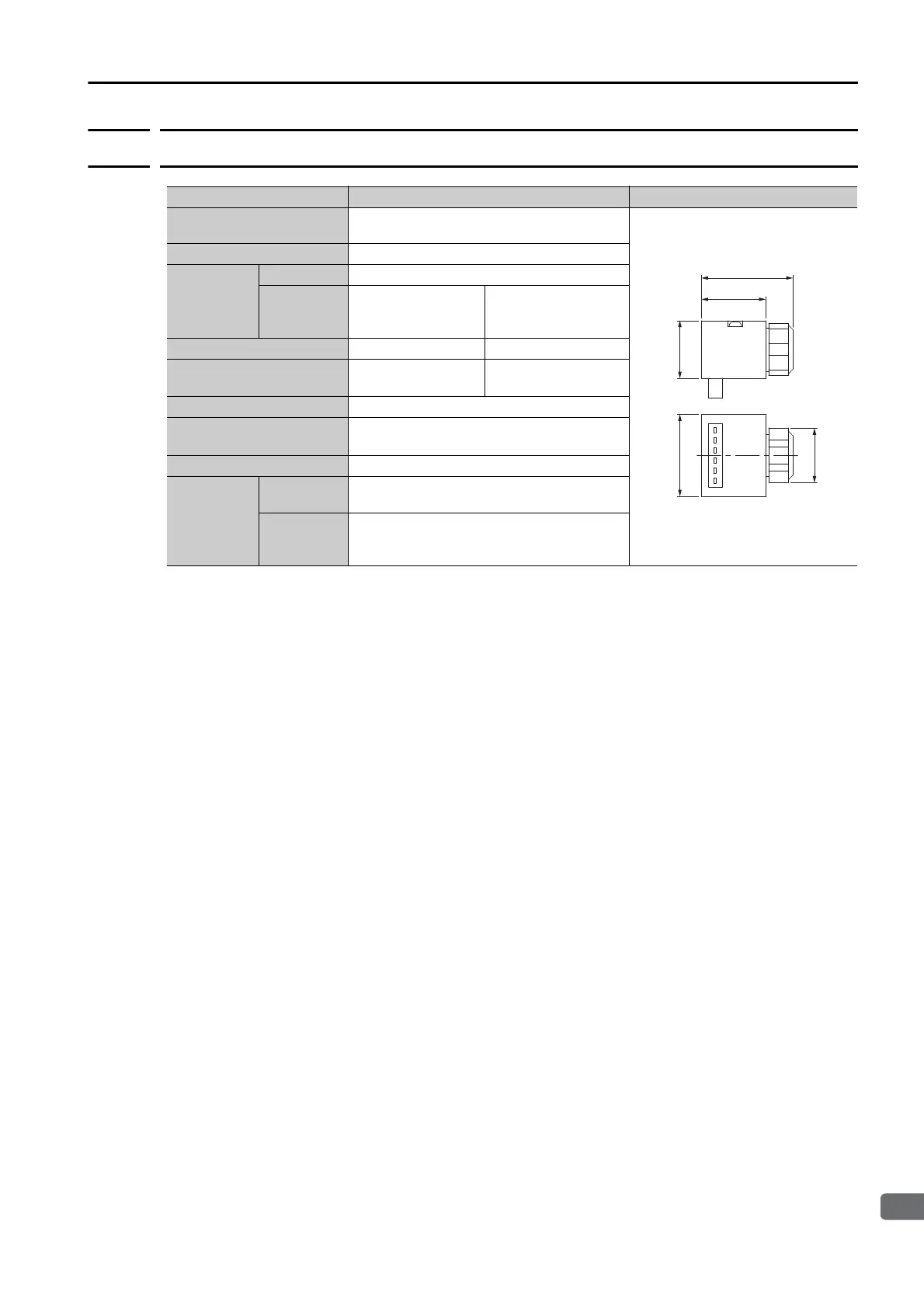

14.4 Optional Metal Connectors for Servomotor Main Circuit Cables
14.4.3 SGM7J and SGM7A (750 W and 1.0 kW)
14-9
14
Other Peripheral Devices and Options
14.4.3
SGM7J and SGM7A (750 W and 1.0 kW)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Item Description External Dimensions [mm]
Applicable Servomotors
SGM7J-08A
SGM7A-08A or -10A
Manufacturer J.S.T. Mfg. Co., Ltd.
Order
Number
Receptacle J37M-06FMH-8KL-ML
Contacts
Power terminals:
SJ3F-41GF-P1.8
Holding brake termi-
nals: SJ3F-01GF-
P1.8
Applicable Wire Sizes AWG16 AWG20 to AWG24
Outer Diameter of
Insulating Sheath
1.53 mm to 2.5 mm 1.11 mm to 1.86 mm
Mounting Screws M2.5 pan-head screws
Applicable Cable
Diameter
8 mm ±0.3 mm
User Instructions JFA Connector J-3700M
Crimping
Tool*
Hand Tool
Power terminals: YRF-880
Holding brake terminals: YRF-881
Applicator
Power terminals: APLMK SJ3F/M41-20
Holding brake terminals: APLMK SJ3F/
M01-20
(35.2)
24.3
21.6
31
20.6 dia.
To Next Page
