168 YASKAWA ELECTRIC SIEP C710636 02B YASKAWA U1000 Technical Manual
4.8 No-Load Operation Test Run
4.8 No-Load Operation Test Run
◆ No-Load Operation Test Run
This section explains how to operate the drive with the motor decoupled from the load during a test run.
■
Before Starting the Motor
Check the following items before operation:
• Ensure the area around the motor is safe.
• Ensure external emergency stop circuitry is working properly and other safety precautions have been taken.
■
During Operation
Check the following items during operation:
• The motor should rotate smoothly (i.e., no abnormal noise or oscillation).
• The motor should accelerate and decelerate smoothly.
■

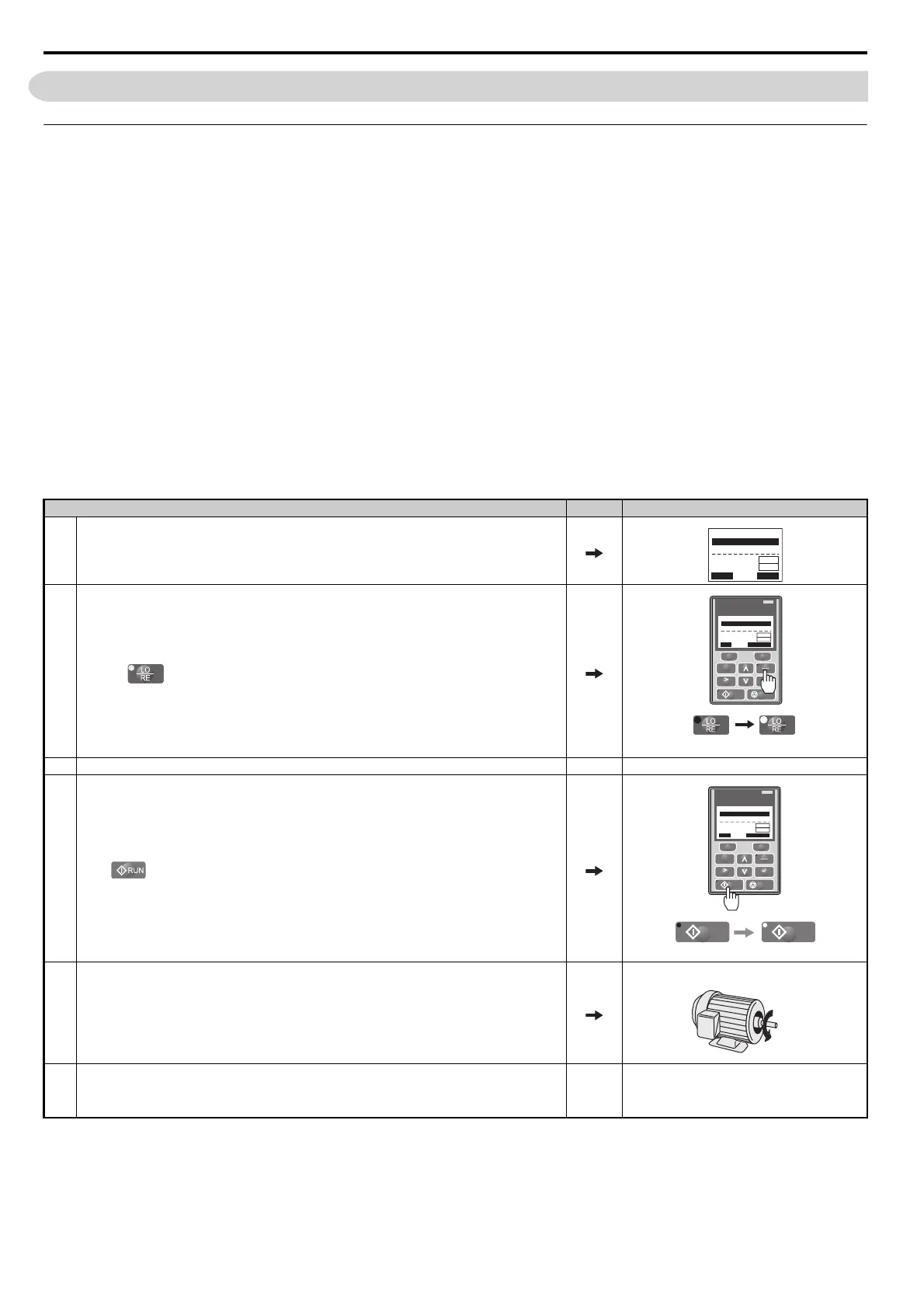

No-Load Operation Instructions
The following example illustrates a test run procedure using the digital operator.
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press the key to select LOCAL. The LO/RE light will turn on.
3. Set the frequency reference to 6 Hz. Refer to Figure 4.6 (page 138) for the setting procedure. – –
4.
Press to give the drive a Run command. RUN will light and the motor will rotate at 6 Hz.
5. Ensure the motor is rotating in the correct direction and that no faults or alarms occur.
6.
If there is no error in step 4, increase the frequency reference. Refer to Figure 4.6 (page 138) for the procedure
to change the frequency reference. Increase the frequency in increments of 10 Hz, verifying smooth operation
at all speeds. For each frequency, check the drive output current using monitor U1-03. The current should be
well below the motor rated current.
––
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (AI)
Rdy
RSEQ
RREF
FWD
JOG
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-180
Off On
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-180
RUNRUN
Off On
- MODE -
U1-01= 6.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
Motor
Forward
SIEP_C710636_02B_1_0.book 168 ページ ２０１５年１１月２５日 水曜日 午後４時５６分
