Setting the BNC Output Terminal

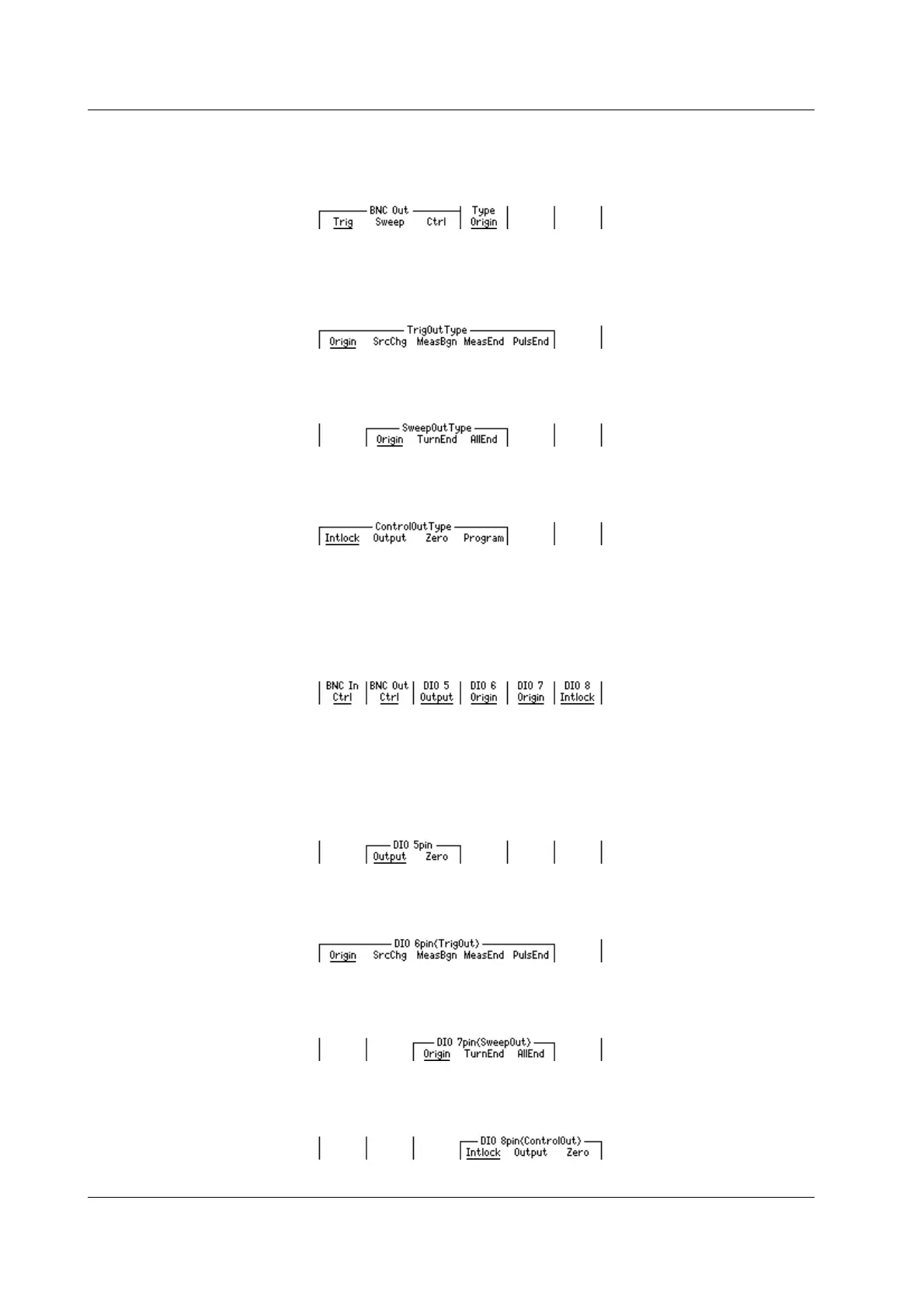

9. Press the BNC Out soft key to select the signal to output from the BNC output

terminal from Trig, Sweep, and Ctrl.

10. Press the Type soft key to select the appropriate signal for your application.

• If Trig is selected in the BNC Out menu

Select Origin, SrcChg, MeasBgn, MeasEnd, or PulsEnd.

• If Sweep is selected in the BNC Out menu

Select Origin, TurnEnd, or Allend.

• If Ctrl is selected in the BNC Out menu

Select Intlock, Output, Zero, or Program.

11. Press ESC to return to the External I/O menu.

Setting the External Input/Output Connector

12. Press any of the keys from DIO 5, DIO 6, DIO 7, and DIO 8 to select the signal

to input or output from pins 5 to 8 of the external input/output connector.

Proceed to one of the steps from 13 to 16 depending on the selected pin

number.

13. Press the DIO 5pin soft key to set the trigger input signal of the external input/

output connector to Output or Zero.

14. Press the DIO 6pin soft key to set the trigger output signal of the external input/

output connector to Origin, SrcChg, MeasBgn, MeasEnd, or PulsEnd.

15. Press the DIO 7pin soft key to set the sweep synchronization output signal of

the external input/output connector to Origin, TurnEnd, or AllEnd.

16. Press the DIO 8pin soft key to set the control output signal of the external input/

output connector to Intlock, Output, or Zero.
