PROGRAM
A directory for storing the pattern files of program sweeps.
The files in this directory can be selected for the program sweep function.
By factory default, sample program files are stored in this directory.
The sample program files are not erased even if the disk is formatted.
SETUP
A directory for storing the GS610 panel settings.
The files in this directory can be selected as setup files.
By factory default, a default setup file is stored in this directory.
The default setup file is not erased even if the disk is formatted.
Volatile Disk (GS610RAM)
GS610RAM is a RAM disk that is automatically formatted when the power is turned ON.

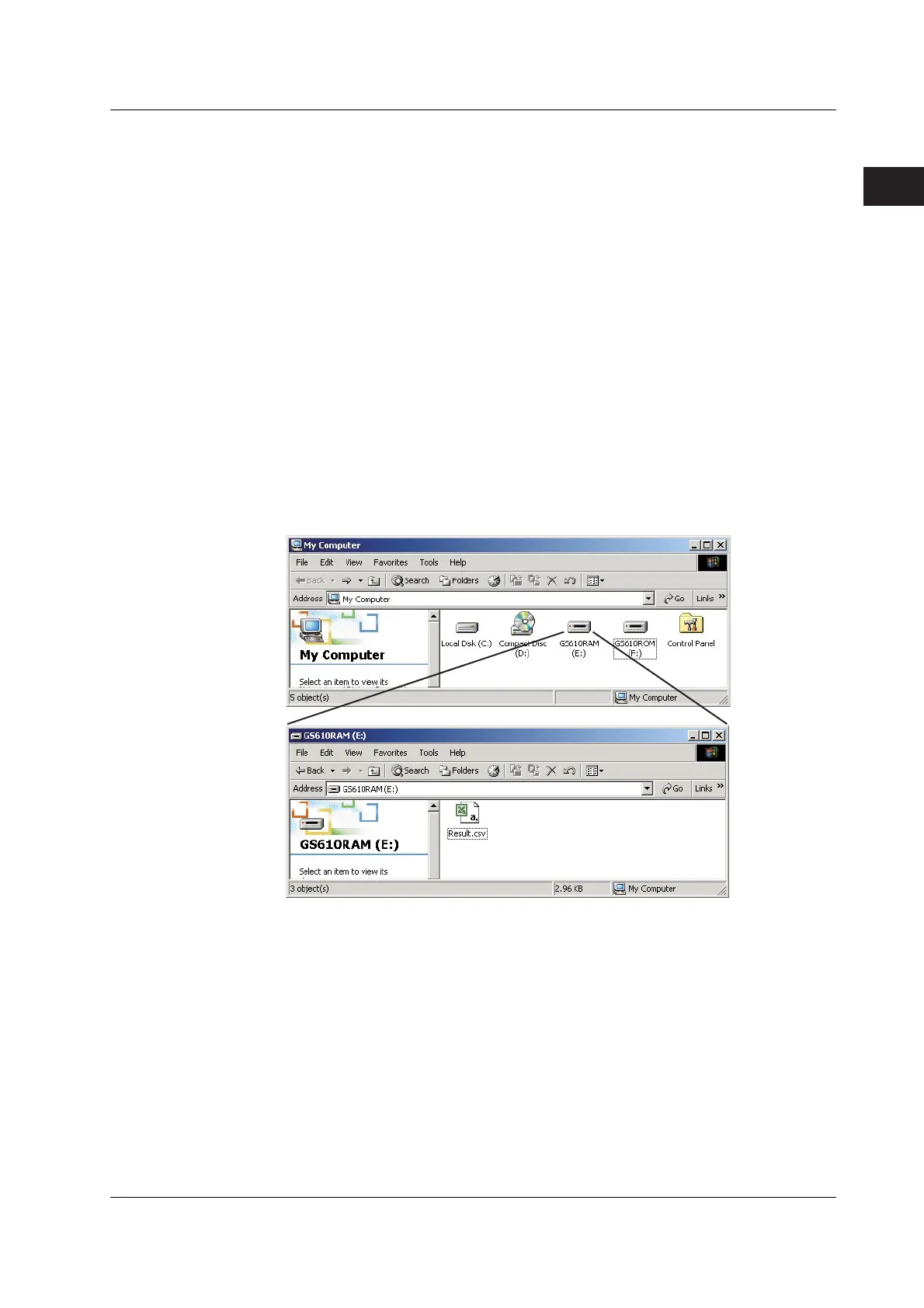

When the storage operation is carried out, the result file (Result.csv) file is created on
this disk. If the settings are saved to the GS610RAM, the current settings are saved to a
file named Setup.txt.
This directory is usually used to pass files that the GS610 creates to the PC. However,
this disk is also used to write the system file (System.bin) from a PC when updating the
system firmware. For details, see section 17.5, “Updating the System Firmware.”
You can also create subdirectories and write files to this disk, but be sure that the disk
does not become full. The data on this disk is lost when the power is turned OFF.
Formatting the Disk (See section 4.3 for the procedure)
You can format the disk when you wish to reset the GS610 to factory default conditions,
when the non-volatile or volatile disk cannot be detected on your PC, or if you believe the
data on the disk is corrupt.
