6-4 IM 765501-01E
Explanation

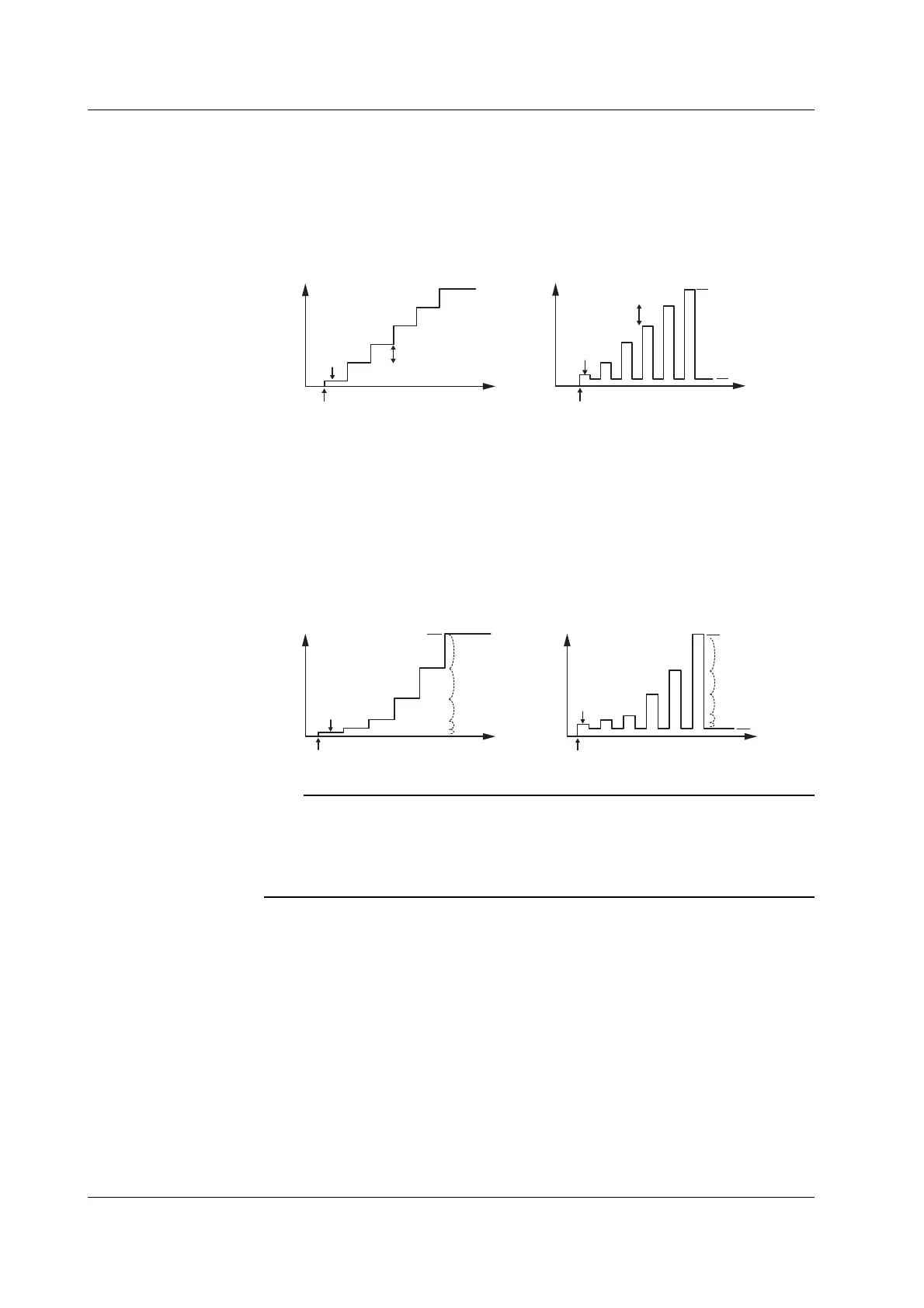

Linear Sweep
Sweeps using evenly spaced step values that increase linearly from the specified start
value to the stop value.
If the sweep count calculated from the start, stop, and step values exceeds 65535 points,
an error occurs, and the sweep operation can be carried out only up to 65535 points.
Initial
value
Start
Start value
Start value
Initial
value
Start
Step value
Step value
Stop value
Stop value
When the source mode is DC
Base value
When the source mode is pulse
Trigger count Trigger count
Source level
Source level
Log Sweep
Sweeps exponentially from the specified start value to the stop value at the specified
step count.
The step count can be set arbitrary in the range of 2 to 65535. However, if the start
value and stop value have opposite signs, an error occurs, and the sweep operation
cannot be carried out.
In addition, if the start value or stop value is 0, an error occurs, and the sweep operation
cannot be carried out.
Start
Start
Start value
Start value
Stop value
Stop value
Step count
Step count
Initial
value
Base value
When the source mode is pulse
Trigger count
Source level
Initial
value
When the source mode is DC
Trigger count
Source level
Note
Use a fixed range so that the range setting does not change during the sweep operation.
Sweep operation is possible in auto range, but the time of each source measure cycle will
be irregular. In addition, if the range setting changes, the source level will be
discontinuous.
When fixed range is used, the sweep operation is carried out in the range setting best
suited to the source level with the highest resolution.
<<Corresponding Command Mnemonic>>
:SOURce:MODE
:SOURce:VOLTage:SWEep:SPACing
:SOURce:VOLTage:SWEep:STARt
:SOURce:VOLTage:SWEep:STOP
:SOURce:VOLTage:SWEep:STEP
:SOURce:VOLTage:SWEep:POINts
:SOURce:CURRent:SWEep:SPACing
:SOURce:CURRent:SWEep:STARt
:SOURce:CURRent:SWEep:STOP
:SOURce:CURRent:SWEep:STEP
:SOURce:CURRent:SWEep:POINts
6.1 Setting the Linear or Log Sweep
