6-6 IM 765501-01E
6.2 Setting the Program Sweep
Explanation
Program Sweep
Sweeps according to the values in a pattern file containing an arbitrary sweep pattern.

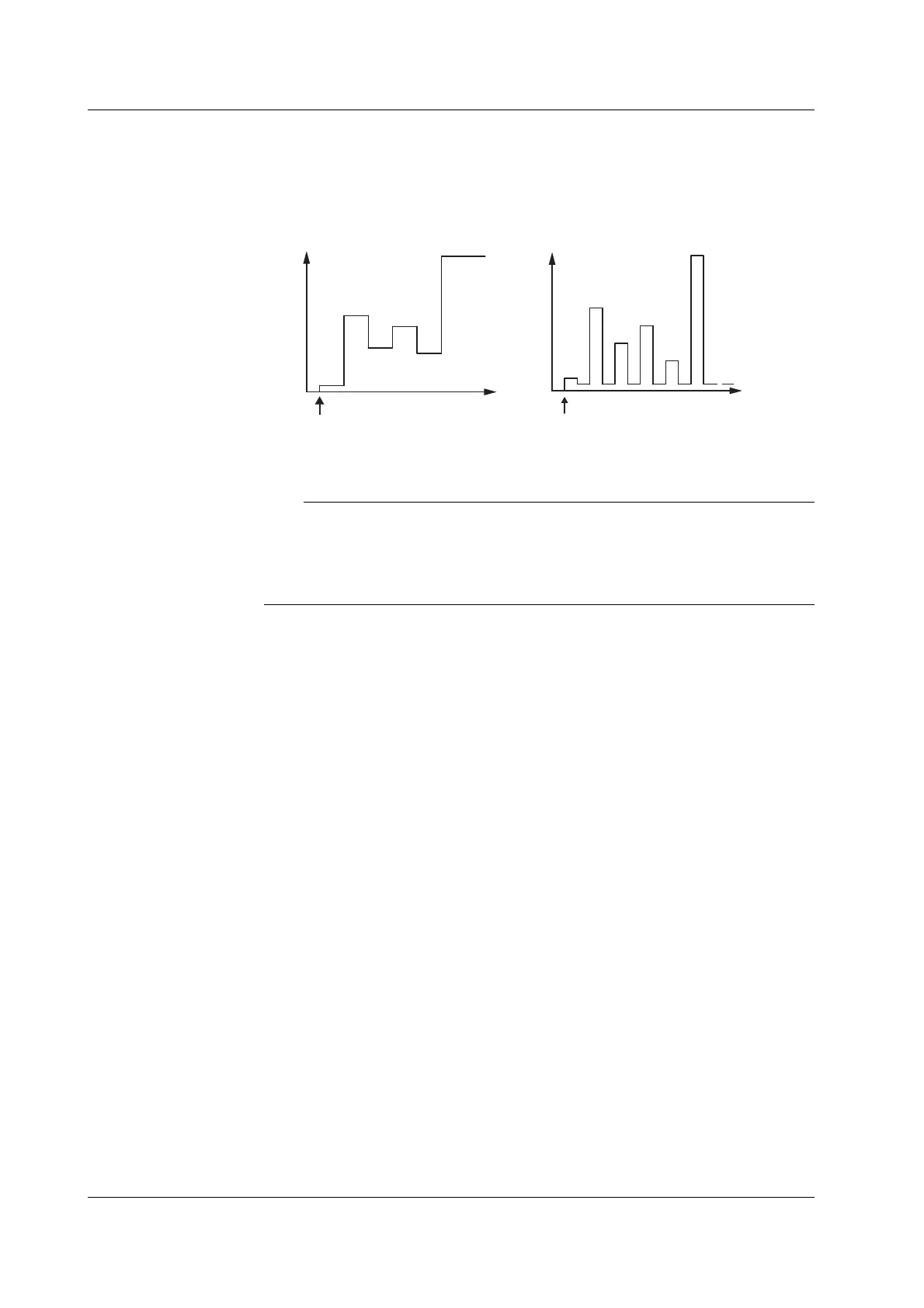

Program Sweep Example
Initial
value
Start
Initial
value
Start
When the source mode is DC
When the source mode is pulse
Base value
Trigger count
Trigger count
Source level
Source level
For details on the pattern file of program sweep, see section 6.6, “Program Pattern File.”
Note
Use a fixed range so that the range setting does not change during the sweep operation.
Sweep operation is possible in auto range, but the time of each source measure cycle will
be irregular. In addition, if the range setting changes, the source level will be
discontinuous.
When fixed range is used, the sweep operation is carried out in the range setting best
suited to the source level with the highest resolution.
<<Corresponding Command Mnemonic>>
:SOURce:MODE
:SOURce:LIST:SELect
:SOURce:LIST:CATalog?
:SOURce:LIST:DELete
:SOURce:LIST:DEFine
