6-10
IM 701310-01E

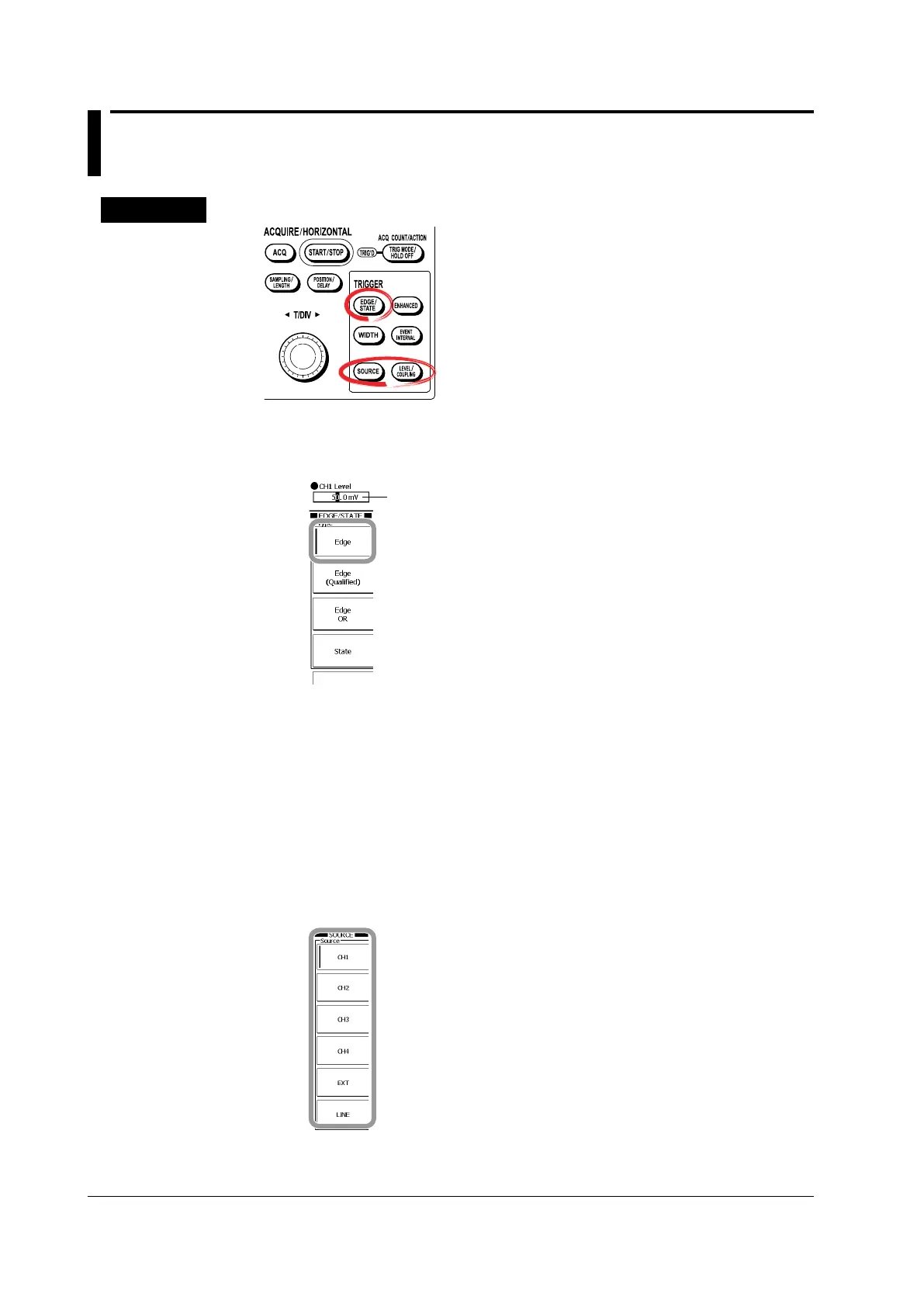

6.6 Activating an Edge Trigger
Procedure
Selecting the Trigger Type
1.
Press EDGE/STATE.
2.
Press the Edge soft key.
If the trigger source is set to CH1 to CH4 or
EXT and the window comparator is OFF, you
can set the trigger level using the rotary
knob.
When Triggering on CH1 to CH4, EXT, or LINE
Selecting the Trigger Source
3.
Press SOURCE.
4.
Press the appropriate trigger source soft key.
To trigger using an external signal, select EXT. To trigger using the DL9000 commercial
power supply signal, select LINE.
• To trigger using an external signal, you must specify the following settings.
Trigger slope, trigger level, attenuation ratio, holdoff time, window comparator (if
necessary)
• To trigger using the DL9000 power supply signal, you must specify the following settings.
Holdoff time
To Next Page
