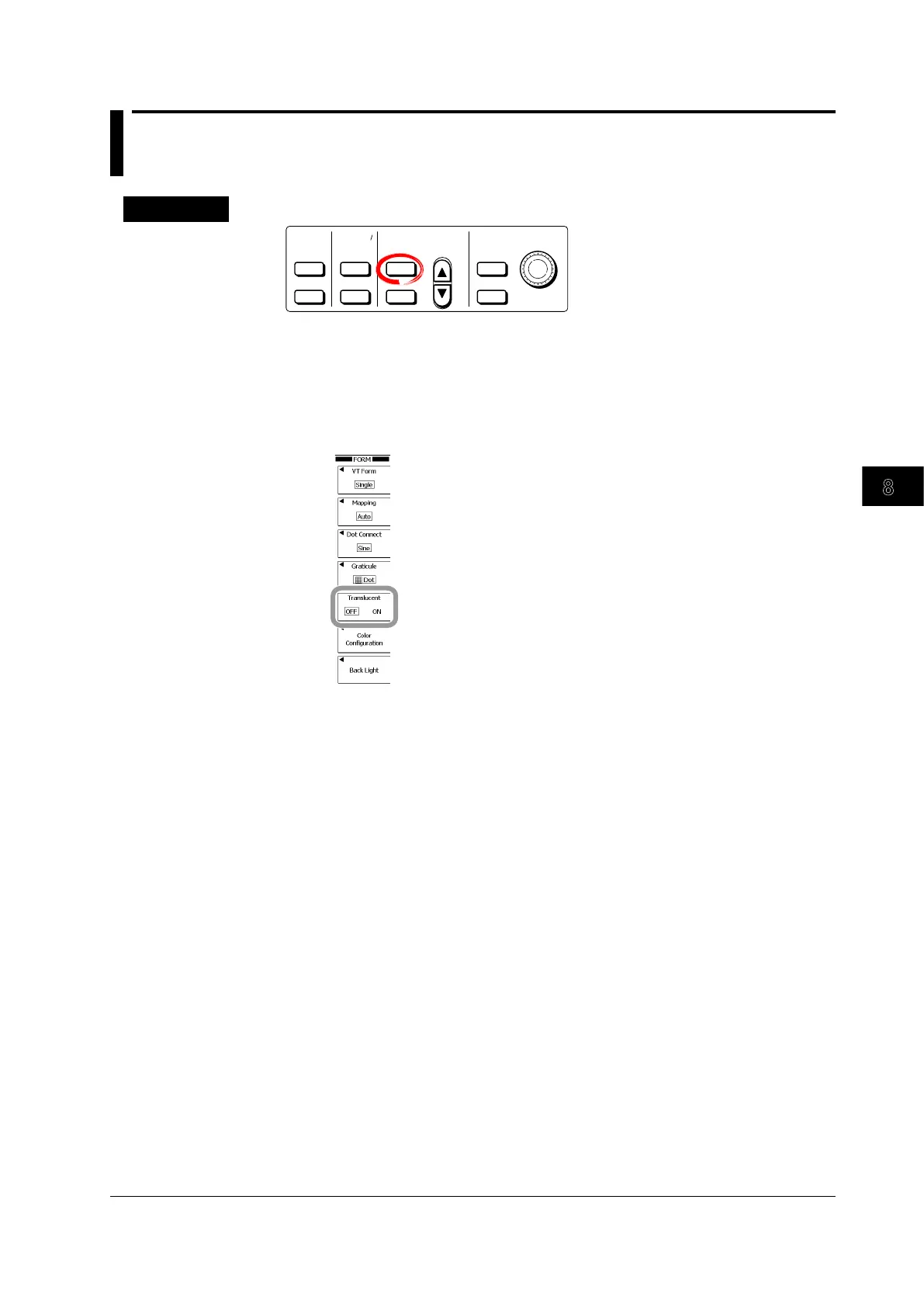

8.8 Setting the Translucent Display, Waveform

Display Colors, and Brightness

Procedure

CURSOR

PARAM

TELECOM

TEST

WINDOW 1

WINDOW 2

FORM

ACCUM

CLEAR

ZOOM 1

ZOOM 2

DISP

MAG

INTENSITY

MEASURE

ANALYSIS

DISPLAY ZOOM

ACCUM

Press FORM.

Turning the Translucent Display ON and OFF

Press the Translucent soft key to select ON or OFF.

ON: Enable translucent display; OFF: Disable translucent display

Default Chapter5
- Checking the Contents of the Package5
- Safety Precautions8
- Waste Electrical and Electronic Equipment10
- Symbols and Notation Used in this Manual11
- Workflow12
- Table of Contents13
