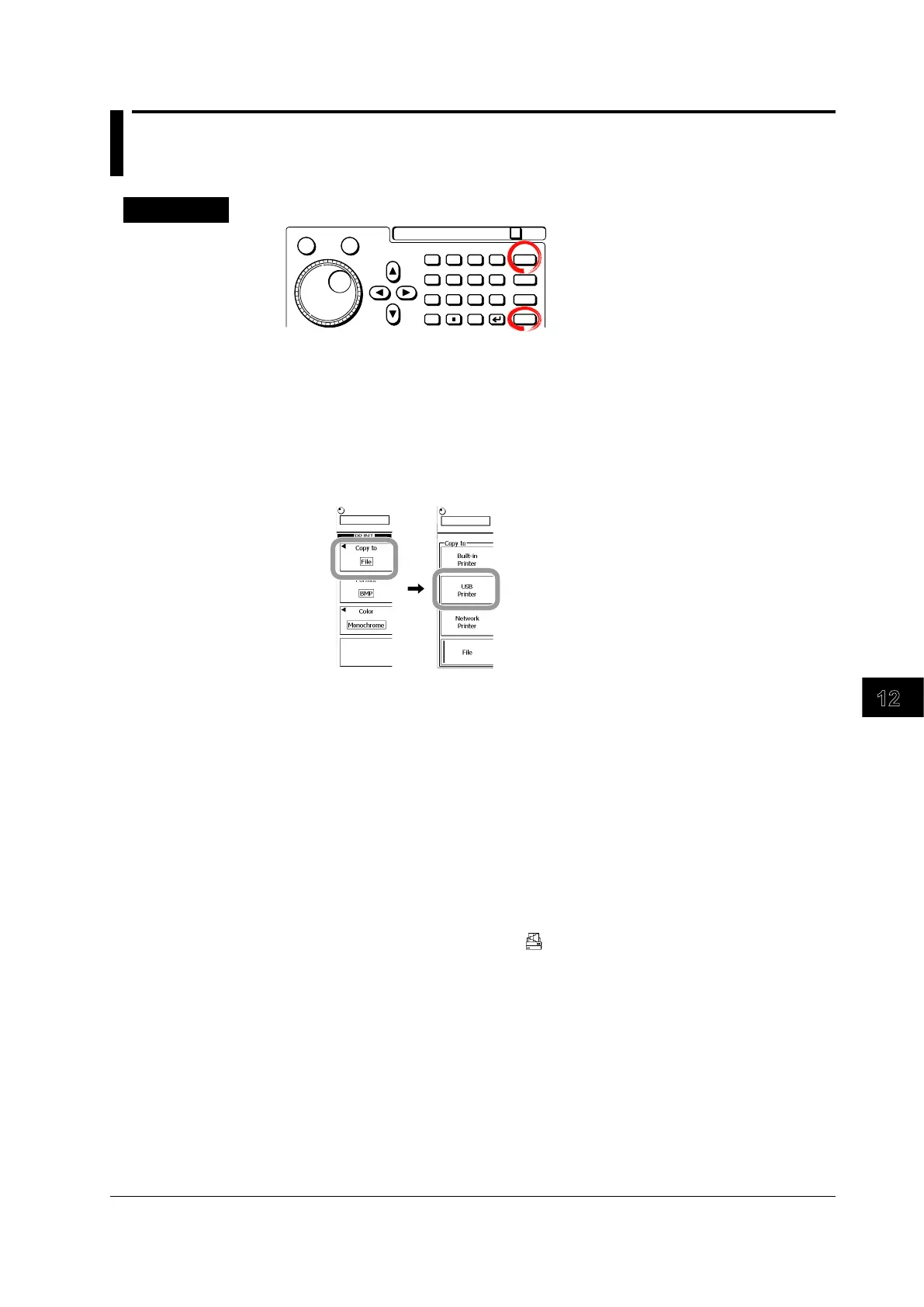

12.3 Printing Using a USB Printer

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Connect the DL9000 and a USB printer using a USB cable.

Selecting a Printer

Press the SHIFT+PRINT (MENU).

Press the Copy to soft key.

Press the USB printer soft key.

Checking the Connected Printer

Press the Printer soft key.

Press the soft key corresponding to the connected printer.

Setting the Color

Press the Color soft key to select ON or OFF.

Printing

Press PRINT.

The screen image is printed on the USB printer.

To abort printing, press PRINT while printing is in progress.

While the data is being printed, the is displayed at the lower left corner of the screen.
