YOKOGAWA DL9040L User Manual

16-4
IM 701310-01E

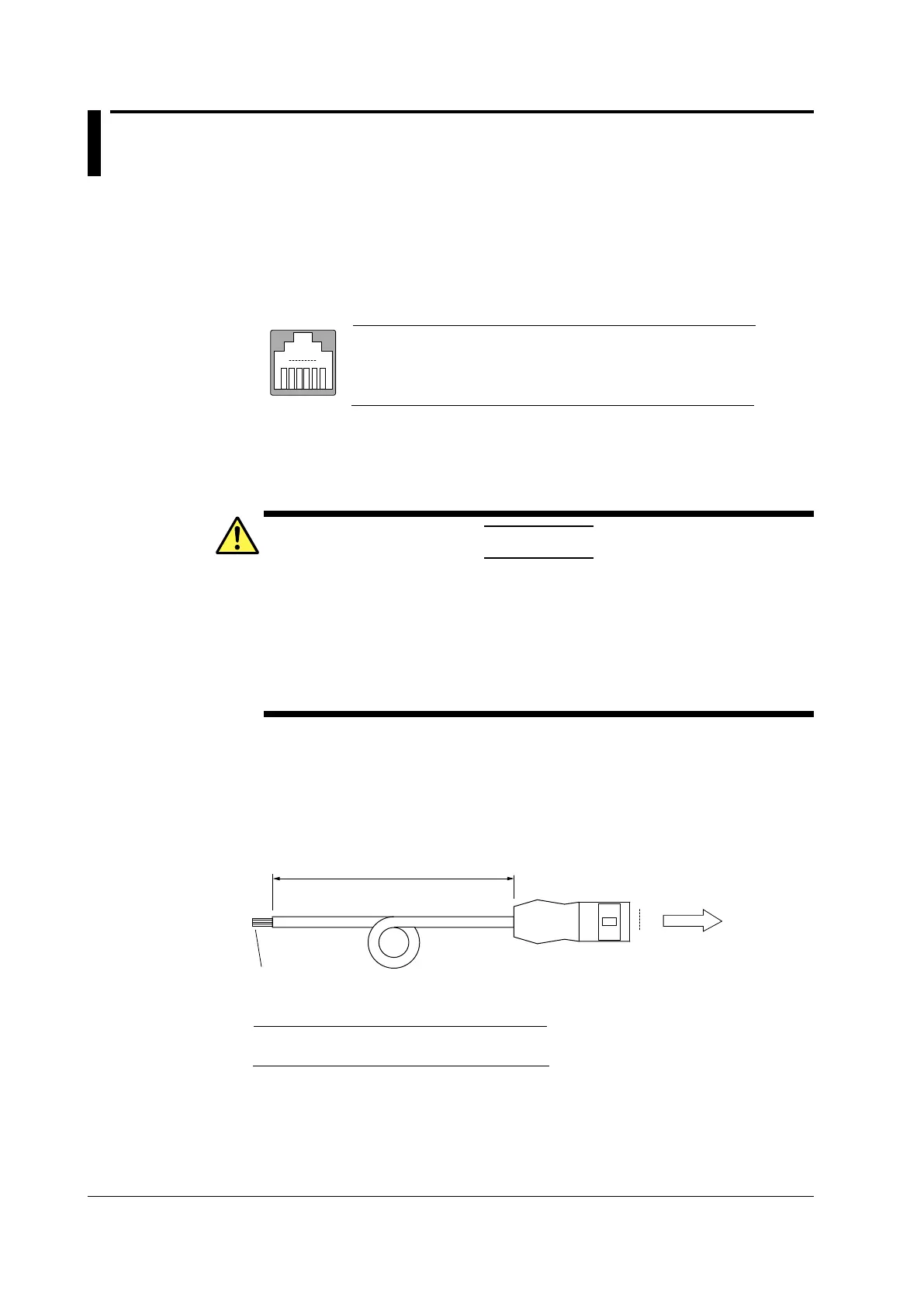

16.4 GO/NO-GO Signal Output
The DL9000 can output a signal indicating a GO/NO-GO determination.
Input/Output Connector
The connector uses a modular jack (RJ-12). A cable is available as optional accessory
366973.
1
Pin No. Signal
2
3
4
5
6
NC (Not connected)
NC (Not connected)
GO OUT (Negative logic)
NO-GO OUT (Negative logic)
GND
NC (Not connected)
6
1
GO/NO-GO
Connector on
the DL9000
Input levels: TTL (0 to 5 V)
GO/NO-GO Output Signal
CAUTION
● DonotapplyanexternalvoltagetotheNO-GOOUToutputpinorGOOUT
output pin. Doing so can cause damage to the DL9000.
● WhenmakingtheexternalconnectiontotheGO/NO-GOdeterminationsignal
output, be careful not to connect to a different signal pin. A wrong connection
could result in damage to the DL9000 or to other connected equipment.
● DonotconnectaUSBcabletotheGO/NO-GOoutputconnector.Doingsocan
cause damage to the DL9000.
For connection to an external device, use the special-purpose optional accessory GO/
NO-GO cable (part no.: 366973).
Do not use the special-purpose optional accessory GO/NO-GO cable (part no.: 366973)
for any purpose other than a GO/NO-GO determination from the DL9000.
1
6
Approx. 1.5 m
RJ-12 modular jack
To the GO/NO-GO output
connector on the rear
panel of the DL9000.
Wire ends are unfinished
for modification as needed.
Pin No. Signal Logic
3
4
5
GO OUT
NO-GO OUT
Negative logic
Negative logic
GND
Wire color
White
Green
Blue
Specifications of the GO/NO-GO cable (model 366973)
