YOKOGAWA DL9040L User Manual

5-7
IM 701310-01E
Vertical and Horizontal Axes
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

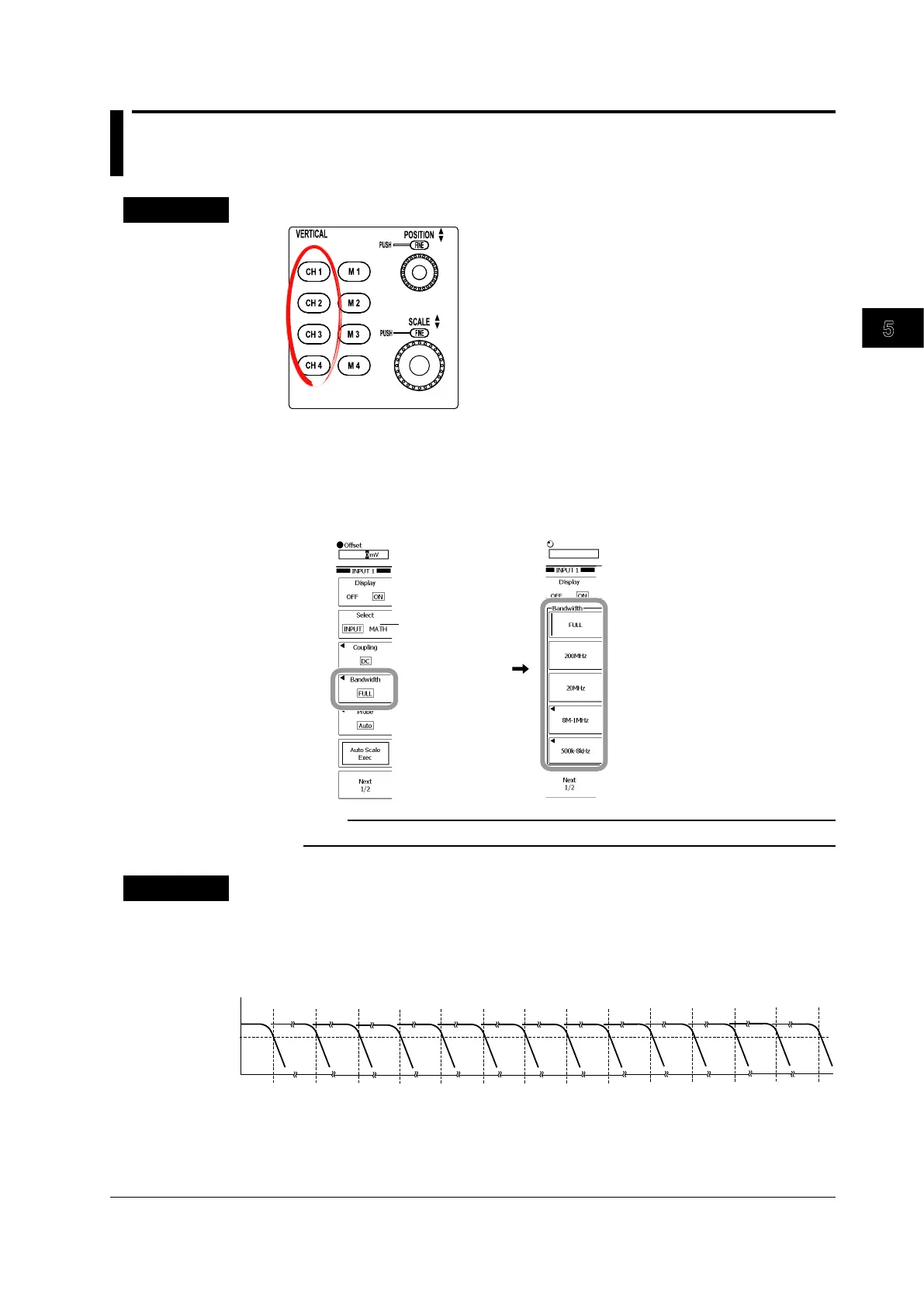

5.5 Setting Bandwidth Limits
Procedure
1.
Press one of the CH1 to CH4 keys to select the channel.
2.
Press the Bandwidth soft key.
3.
Press the soft key corresponding to the desired bandwidth.
If “8 M - 1 MHz” or “500 - 8 kHz” is selected, another Bandwidth menu appears. Press a soft
key to select the bandwidth.
This option should be
set to INPUT.
Note
The bandwidth limit is set for each channel. Set the bandwidth limit for all desired channels.
Explanation
Bandwidth
It is possible to remove the high frequency components from the input signal.
The frequency characteristics when the bandwidth has been given limits are shown
below. If you select FULL, the largest bandwidth is selected.
– 3dB
Approx. 2 MHz
FULL
Approx. 8 kHz
Approx. 16 kHz
Approx. 32 kHz
Approx. 62.5 kHz
Approx. 125 kHz
Approx. 250 kHz
Approx. 500 kHz
Approx. 1 MHz
Approx. 4 MHz
Approx. 8 MHz
Approx. 20 MHz
Approx. 200 MHz
In high resolution mode, a 200 MHz filter is used internally even for FULL.
