Triggering

App

Index

6-41

IM 701310-01E

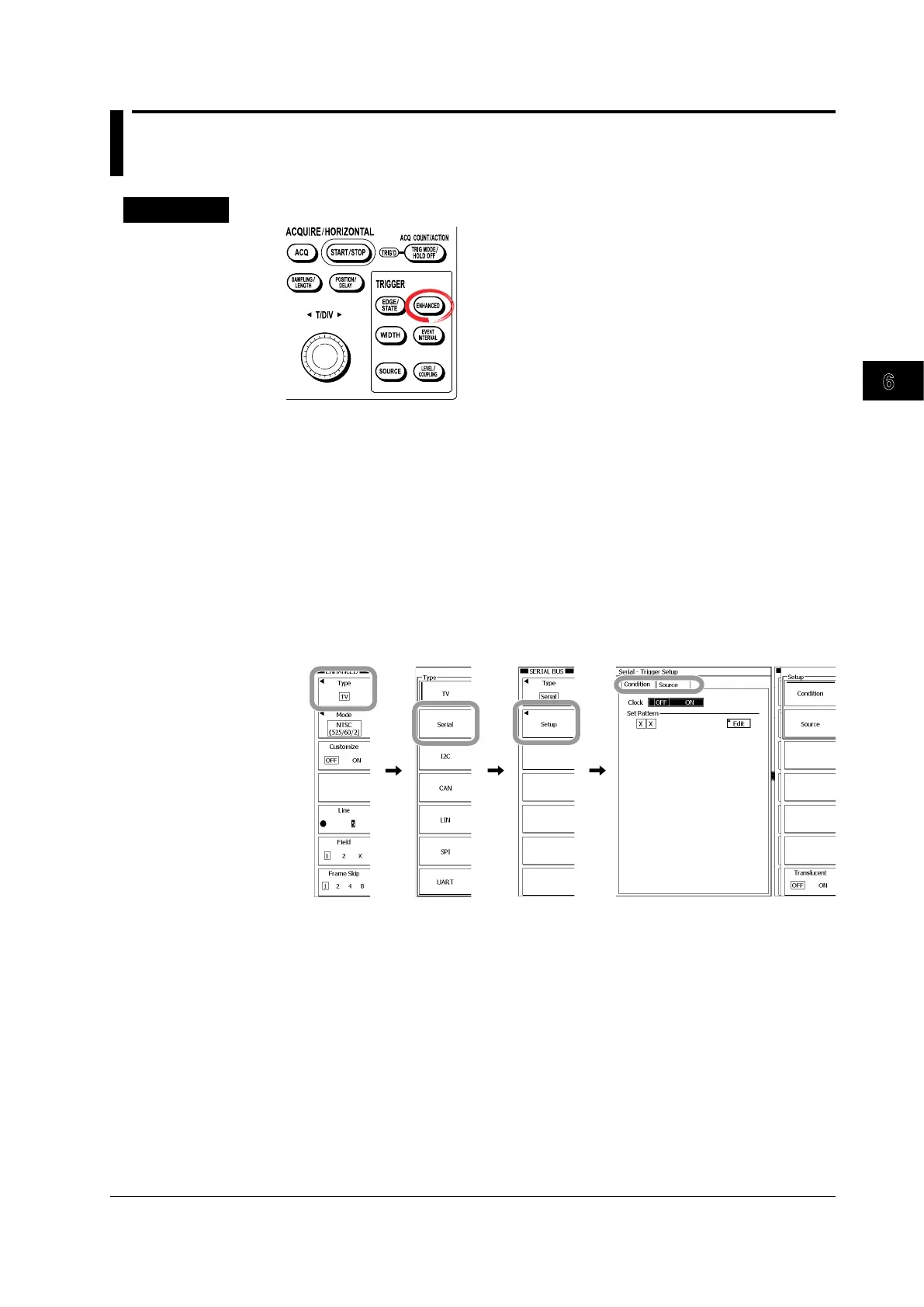

6.14 Triggering on a Serial Pattern Signal

Procedure

Press ENHANCED.

Press these soft keys: Type > Serial > Setup.

The Setup dialog box appears.

Setting the Trigger Condition

Use the rotary knob and SET to select the Condition tab.

You can also press the Condition soft key to select the tab.

Turning the Clock ON and OFF

Use the rotary knob and SET to set the clock to ON or OFF.

For the procedure to set the bit rate, clock source, CS state condition, and latch source, see

pages 6-43 and 6-44.
