15.1 Connecting the DL9000 to the Network
Ethernet Interface Specifications
A 100BASE-TX port is provided on the rear panel of the DL9000.
Item Specifications
Number of communication ports 1
Electrical and mechanical specifications Conforms to IEEE802.3
Transmission system Ethernet (100BASE-TX/10BASE-T)
Transmission rate 100 Mbps max.
Communication protocol TCP/IP
Supported service DHCP, DNS, Microsoft network file shared client/server
Connector type RJ-45 connector
100BASE-TX
ETHER NET
ACT
LINK
USB
GO/NOGO
)
12
V
DC
TRIG OUT

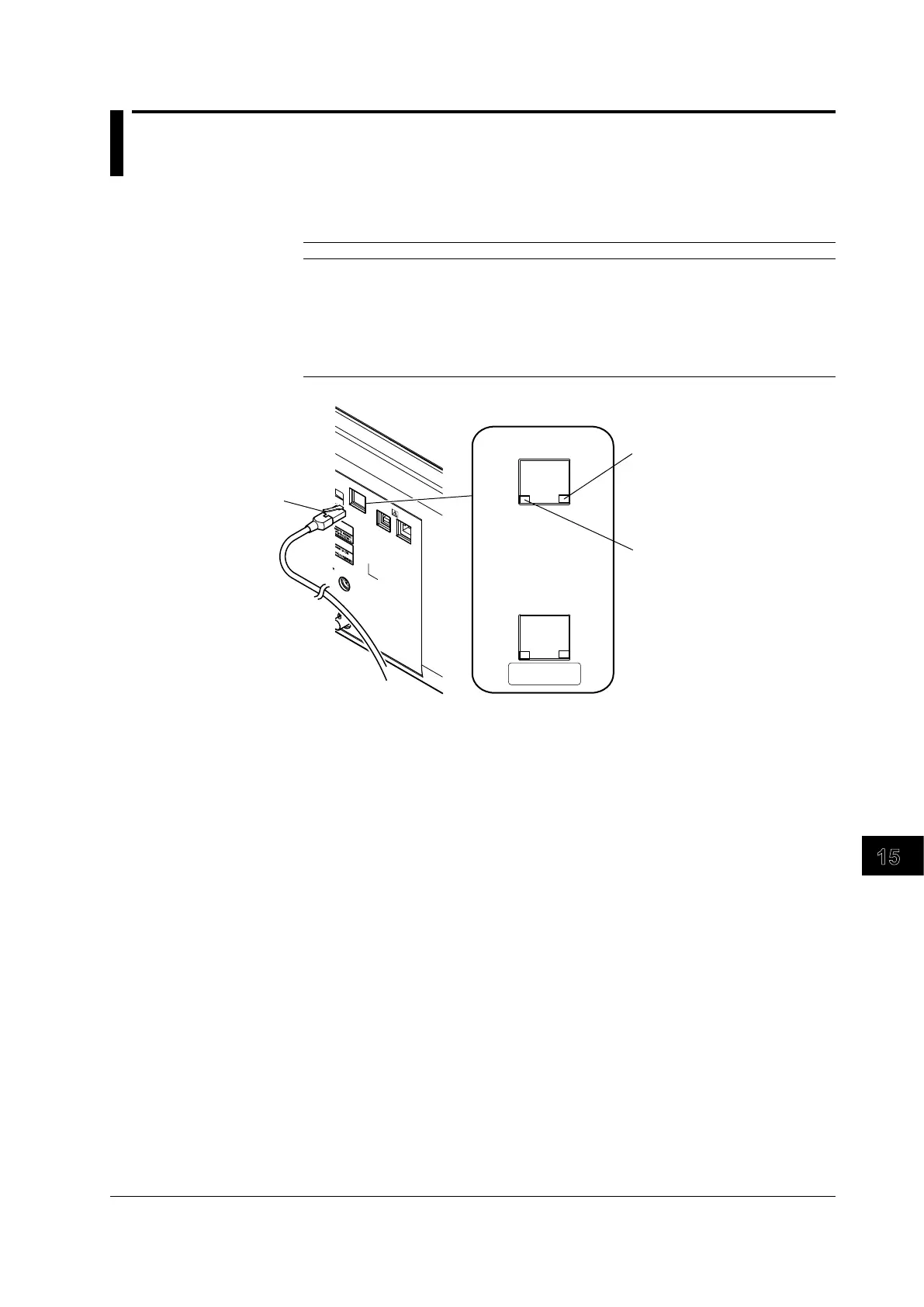

ETHERNET 100BASE-TX port
RJ-45 modular
jack
ACT LED
Blinks when packet transmission
is normal.
LINK LED
Illuminates when the link
between the port on the DL9000
and the connected device is
established and communication
is mutually possible.
ETHERNET
100BASE-TX
ACT LINK
ETHERNET
100BASE-TX
ACT LINK
No Auto-MDIX
Markingonmodels
withtheLXIoption
(/C9and/C12)
Items Necessary for Connection
Cable
Be sure to use one of the following cables for connection.
• UTP (Unshielded Twisted-Pair) cable (category 5 or better)
• STP (Shielded Twisted-Pair) cable (category 5 or better)
