11.4 Searching History Waveforms Using a

Polygonal Zone (POLYGON History Search)

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

CURSOR

PARAM

WINDOW 1

WINDOW 2

SETUP

ACCUM

ZOOM 1

ZOOM 2

DISP

2 HISTORY

CLEAR

DISP

MAG

INTENSITY

SETUP

HELP

HISTORY

MEASURE

FORM

ZOOM

EYE DIAGRAM

DECODE

ANALYSIS

DISPLAY

SERIAL

BUS

Loading a Polygon

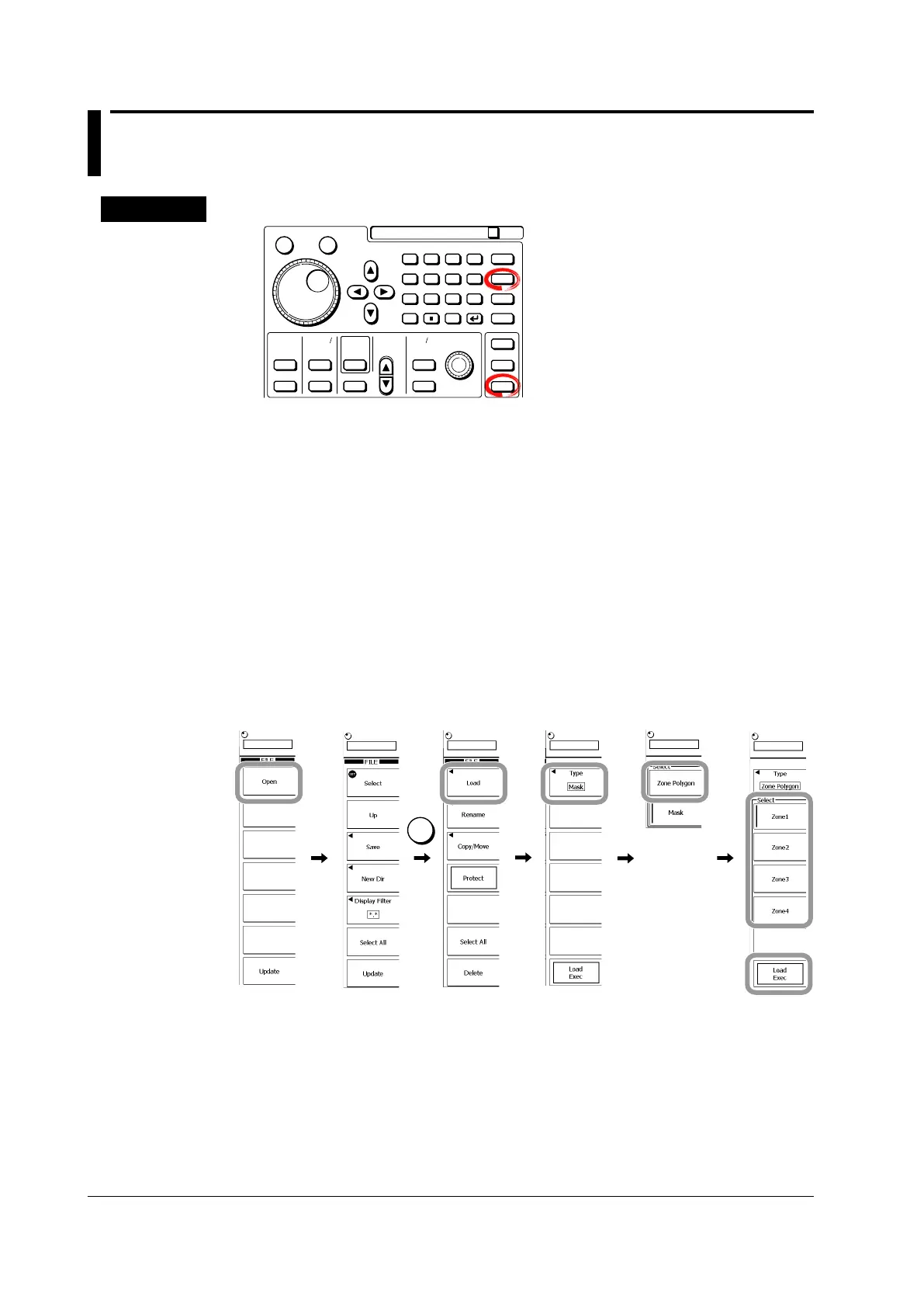

Follow these steps to load a polygon image file.

Press FILE.

Select the directory on the PC card, USB, or other storage media that the polygon

image file is saved to.

Press the OPEN soft key.

Select the file you want to open, and press SET.

Press the LOAD soft key.

Press the Type soft key.

Press the Zone Polygon soft key.

Press the soft key that corresponds to zone number that you want to load into.

Press the Load EXEC soft key.

The DL9000 will load the selected file.
