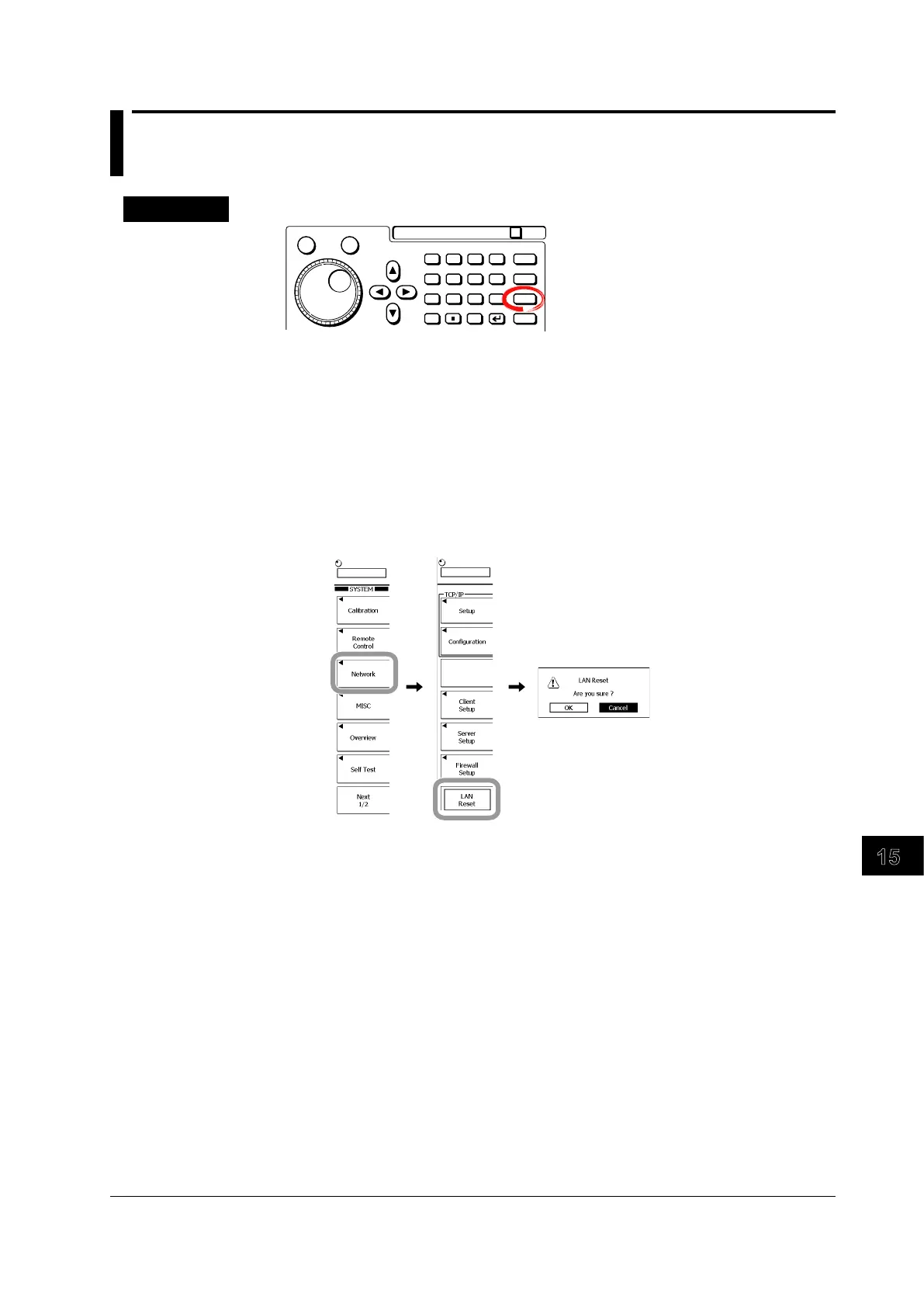

15.11 Initializing All Ethernet Interface Settings (Only

on models with the LXI option, /C9 and /C12)

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Press SYSTEM.

Press these soft keys: Network.

The TCP/IP setup menu appears.

Initializing All Ethernet Interface Settings

Press the LAN Reset soft key.

A confirmation message appears.

Use the rotary knob to select OK or Cancel, and then press SET.

If you select OK, all of the Ethernet interface settings are initialized.
