10-36
IM 701310-01E

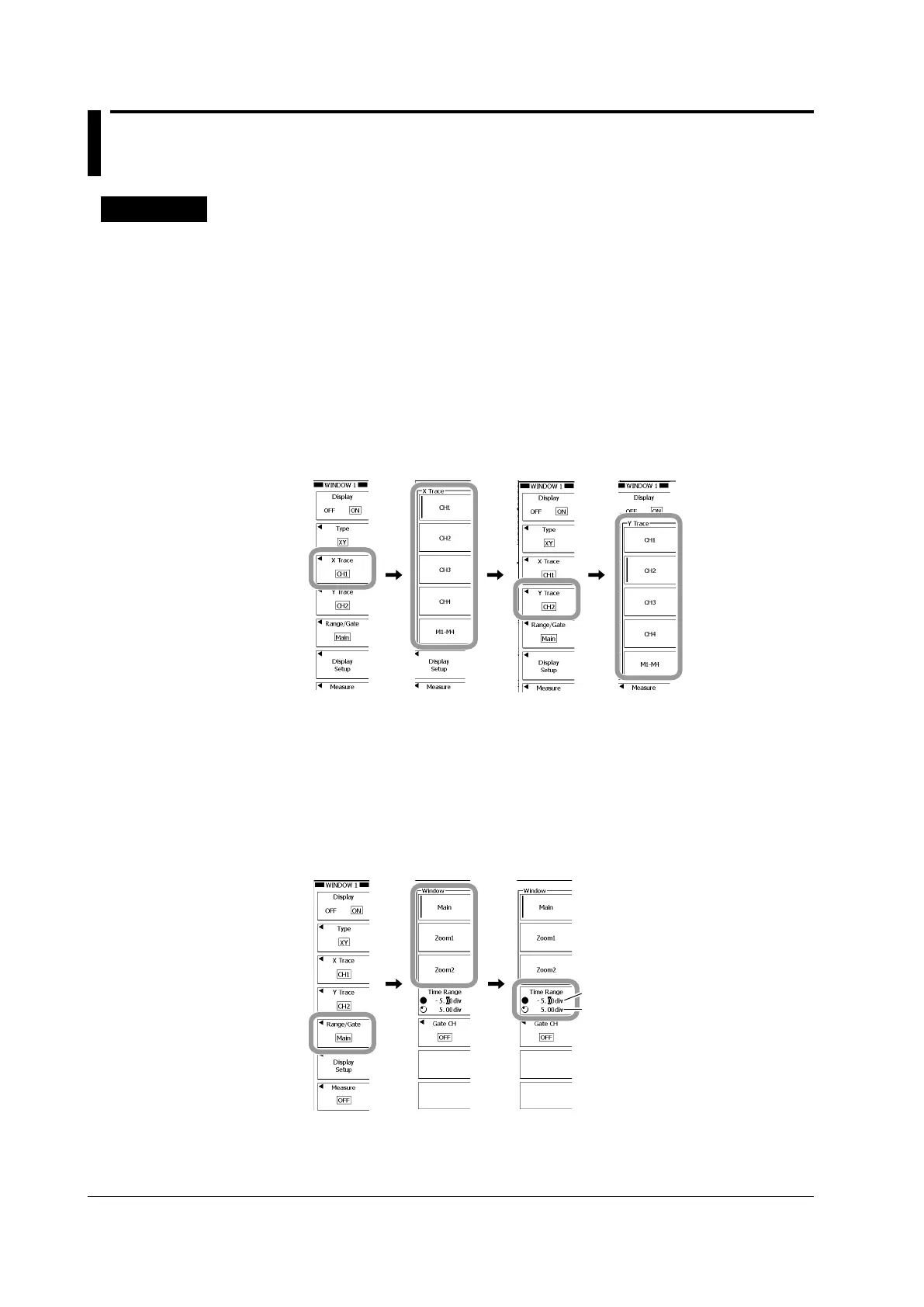

10.6 Viewing the Phase between Measured
Waveforms on the XY Display
Procedure
1.
Carry out steps 1 to 4 in section 10.5 to set the analysis type to XY.
Selecting the X-Axis Waveform
2.
Press the X Trace soft key.
3.
Press the appropriate waveform soft key to select the X trace.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
Selecting the Y-Axis Waveform
4.
Press the Y Trace soft key.
5.
Press the appropriate waveform soft key to select the Y trace.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
Setting the Time Range
6.
Press the Range/Gate soft key.
7.
Press the appropriate soft key from Main to Zoom2 to select the window that you
want to set the time range for.
8.
Press the Time Range soft key.
9.
Use the rotary knob to set the start point (T1) and end point (T2).
Press the soft key to select the point that you want to set using the rotary knob.
To Next Page
