Analysis and Search
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index

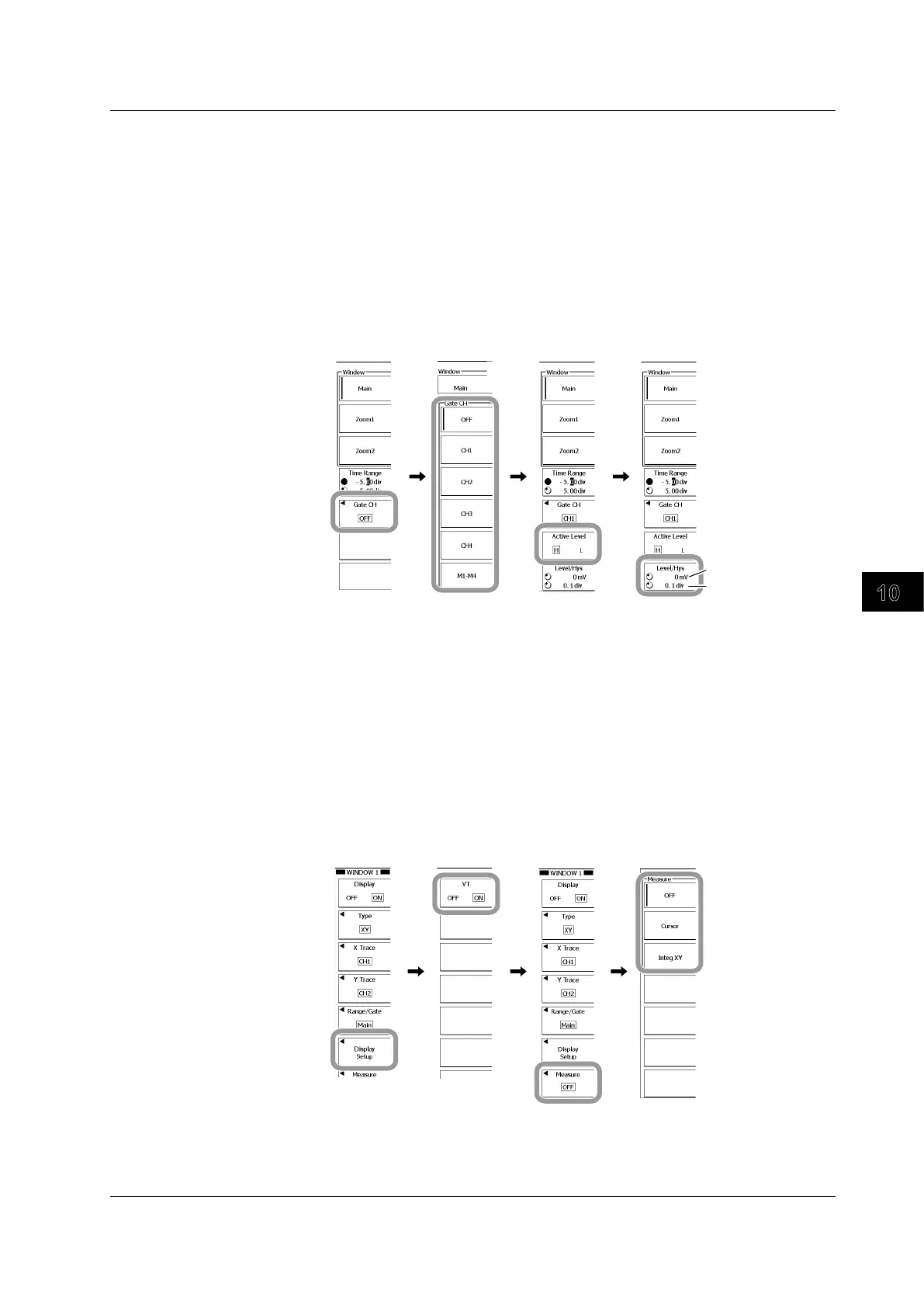

Selecting the Gate Channel
10.
Press the Gate CH soft key.
11.
Press the appropriate waveform soft key to select the gate channel.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
If you select OFF, proceed to step 15.
12.
Press the Active Level soft key to select H or L.
13.
Press the Level/Hys soft key.
14.
Use the rotary knob to set the active reference level and hysteresis.
Press the soft key to select the setting that you want to set using the rotary knob.
15.
Press ESC.
Level
Hys
Turning the T-Y Waveform Display ON and OFF and Selecting the Analysis
Function
16.
Press the Display Setup soft key.
17.
Press the VT soft key to select ON or OFF.
18.
Press ESC.
19.
Press the Measure soft key.
20.
Press the appropriate soft key from OFF to Integ XY to select the analysis
function.
If you select OFF, you are done with the settings.
If you select Cursor, proceed to step 21.
If you select Integ XY, proceed to step 25.
10.6 Viewing the Phase between Measured Waveforms on the XY Display
