10-38
IM 701310-01E
Analyzing by Using Cursors
21.
Press the X1/X2 soft key.
22.
Use the rotary knob to move the X1 or X2 cursor.
Press the soft key to select the cursor that you want to move using the rotary knob.
23.
Press the Y1/Y2 soft key.
24.
Use the rotary knob to move the Y1 or Y2 cursor.
Press the soft key to select the cursor that you want to move using the rotary knob.
Computing the Area
25.
Press the Loop soft key to select Open or Close.
26.
Press the Polarity soft key to select CW or CCW.

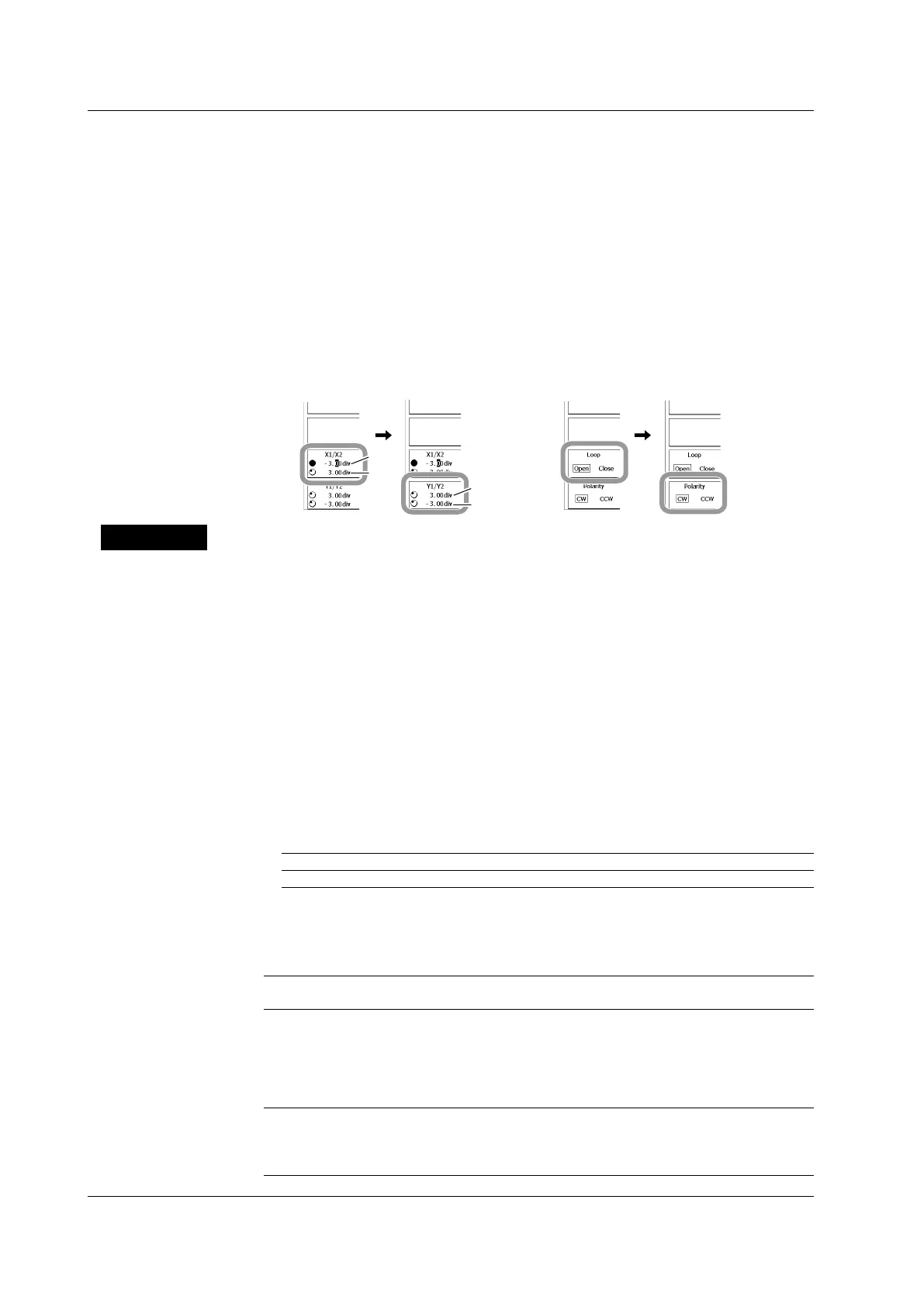

X1
X2
Y1
Y2
Cursor analysis Area calculation (Integ XY)
Explanation
X-Axis and Y-Axis Waveforms
Select the waveform from CH1 to CH4 or from M1 to M4.
Time Range
You can set the source window to Main, Zoom1, or Zoom2.
Set the time range within the selected window.
The selectable range is �5.00 divisions.
Gate Channel
The DL9000 displays an XY waveform when the selected gate channel signal is greater
than or equal to the reference level or when the signal is less than or equal to the
reference level.
• Active Level
Select whether to display an XY
waveform when the signal is greater than or equal to
or less than or equal to the reference level.
H Greater than or equal to the reference level
L Less than or equal to the reference level
• Reference Level and Hysteresis
Set the level used to determine high or low and the hysteresis.
Analysis Function
OFF
Disables the analysis function.
Cursor
The two X-axis cursors and the two Y-axis cursors can be used at the same time.
X1/X2: Measures the X-axis values for the X1 and X2 cursors. The selectable range is �4
divisions, and the resolution is 0.01 divisions.
Y1/Y2: Measures the Y-axis values for the Y1 and Y2 cursors. The selectable range is �4
divisions, and the resolution is 0.01 divisions.
Integ XY
Determines the total area of the XY waveform. See appendix 2 for details.
Loop: Select how to determine the area: Open (trapezoidal area) or Close (triangular area).
Polarity: Set the positive direction to CW (clockwise) or CCW (counterclockwise).
10.6 Viewing the Phase between Measured Waveforms on the XY Display
