7.12 Setting Polygonal Zone GO/No-Go

Determination Conditions

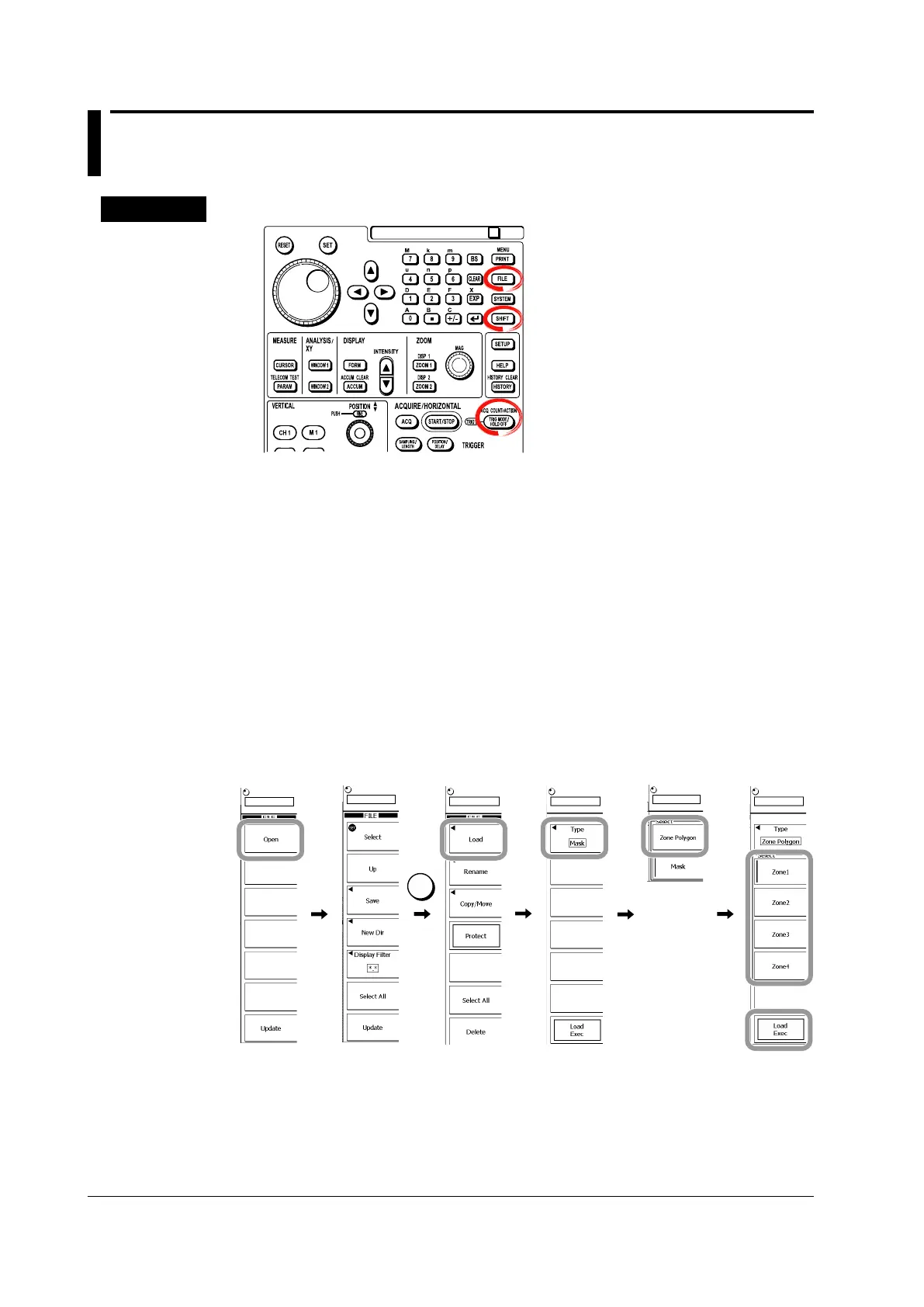

Procedure

Loading a Polygon

Follow these steps to load a polygon image file.

Press FILE.

Select the directory on the PC card, USB, or other storage media that the polygon

image file is saved to.

Press the OPEN soft key.

Select the file you want to open, and press SET.

Press the LOAD soft key.

Press the Type soft key.

Press the Zone Polygon soft key.

Press the soft key that corresponds to zone number that you want to load into.

Press the Load EXEC soft key.

The DL9000 will load the selected file.
