13-1
IM 701310-01E
Saving and Loading Measurement Data
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
App
Index
13.1 Flash ATA Memory Card
PC Cards That Can Be Used
The DL9000 supports flash ATA cards (PC card TYPE II) and compact flash (using the
PC card TYPE II adapter). In addition, some of the Flash ATA HDD cards can be used.
For details, contact your nearest YOKOGAWA dealer.
Note
Make sure that the PC (personal computer) card that you use is compatible with the PC that
you are using. The PC cards mentioned above may not work properly with all PCs. Check it
beforehand.

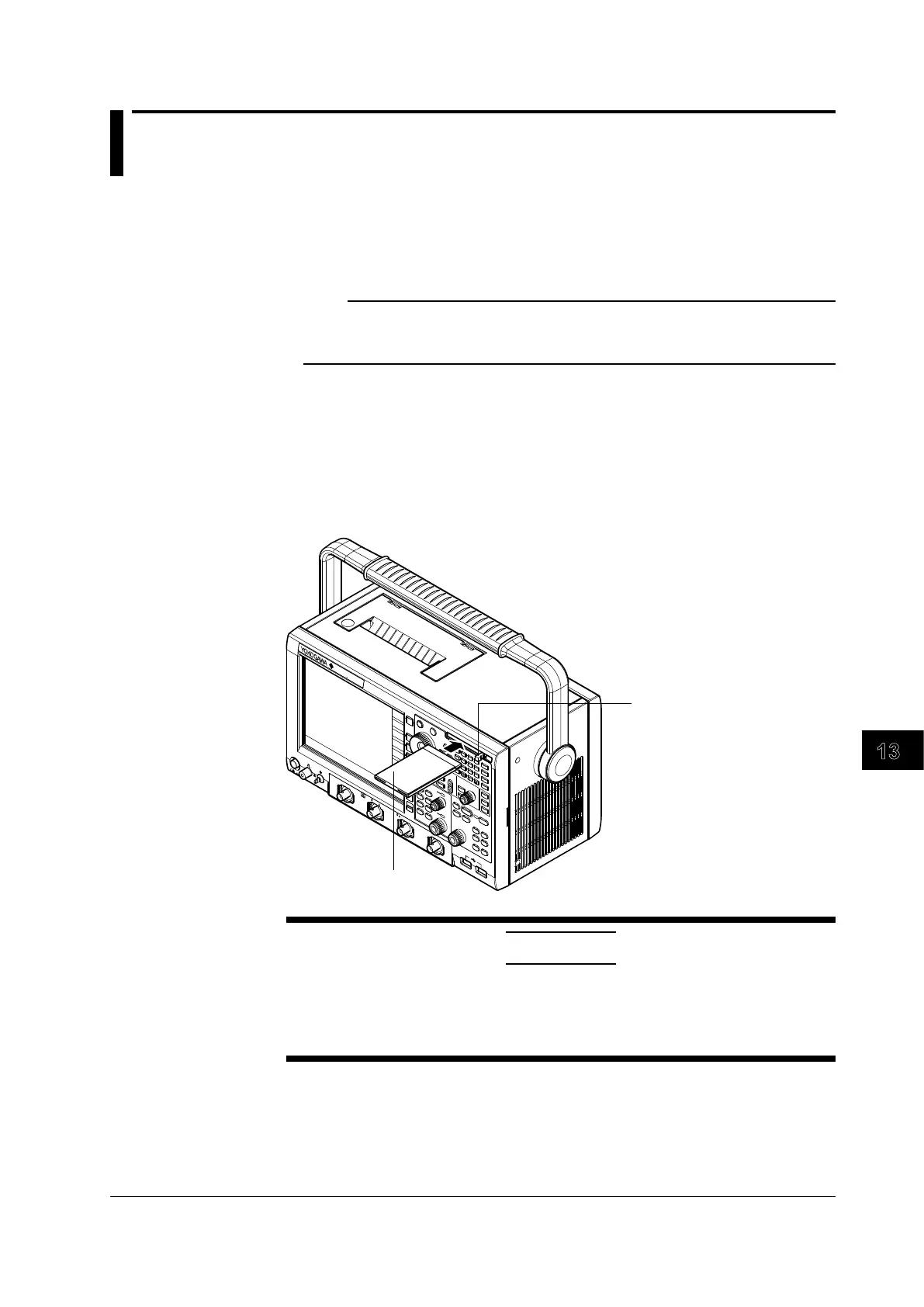

Inserting the PC Card
With the front side of the PC card facing up, insert the PC card into the drive.
There is a PC card drive is located on the front panel and the rear panel of the DL9000.
Ejecting the PC Card
Check that the PC card is not being accessed, and press the PC card eject button to the
right of the drive.
ESC
RESET
SET
M
k
m
u
n
p
D
E
F
X
A
B
C
7
8
9
4
5
6
1
2
3
0
BS
CLEAR
EXP
MENU
PRINT
FILE
UTILITY
FILE
SYSTEM
SHIFT
SETUP
HELP
HISTORY
CLEAR
HISTORY
ACQ
COUNT/ACTION
ZO OM
DISP
1
DISP
2
ZOOM
1
ZOOM
MAG
ACQUIRE/HORIZONTAL
ACQ
START/STOP
SAMPLING/
LENGTH
POSITION/
DELAY
T/DIV
TRIG GER
EDGE/
STATE
ENHANCED
WIDTH
EVENT
INTERVAL
SOUR CE
INTENSI TY
ACCUM
FORM
ACCUM
AN ALY SIS /
XY
WINDOW
1
WINDOW
2
CUR SOR
TELE COM
TEST
PARAM
VE RT ICA L
CH
1
M
1
CH
2
CH
3
CH
4
M
2
M
3
M
4
POSITIO N
TRIG'D
TRIG MOD E/
HOLD OFF
PUSH
FINE
PUSH
FINE
SCAL E
SNAP
CL EAR
SNAP
POWE R
COMP
CH
2
3
4
1
M
/20 pF
150
Vrms
CATI 50
5
Vrms,10 Vpk
LEVEL/
COUPLING
DL924 0L
10G S/s
1. 5GH z
DI GITA L O SCI LL OSC OPE
CH
CH
1
CH
DI SPL AY
CLEAR
Eject button
Top face
CAUTION
• The DL9000 may malfunction if the PC card is inserted and ejected within a
1-second time period.
• Removing the PC card while it is being accessed may destroy
the data on the
PC card.
General Handling Precautions of PC Cards
For the general handling precautions of the PC card, read the instruction manual that
came with the PC card.
Chapter 13 Saving and Loading Measurement Data
