14-2

IM 701310-01E

14.2 Displaying Stored Data as Reference Waveform

Procedure

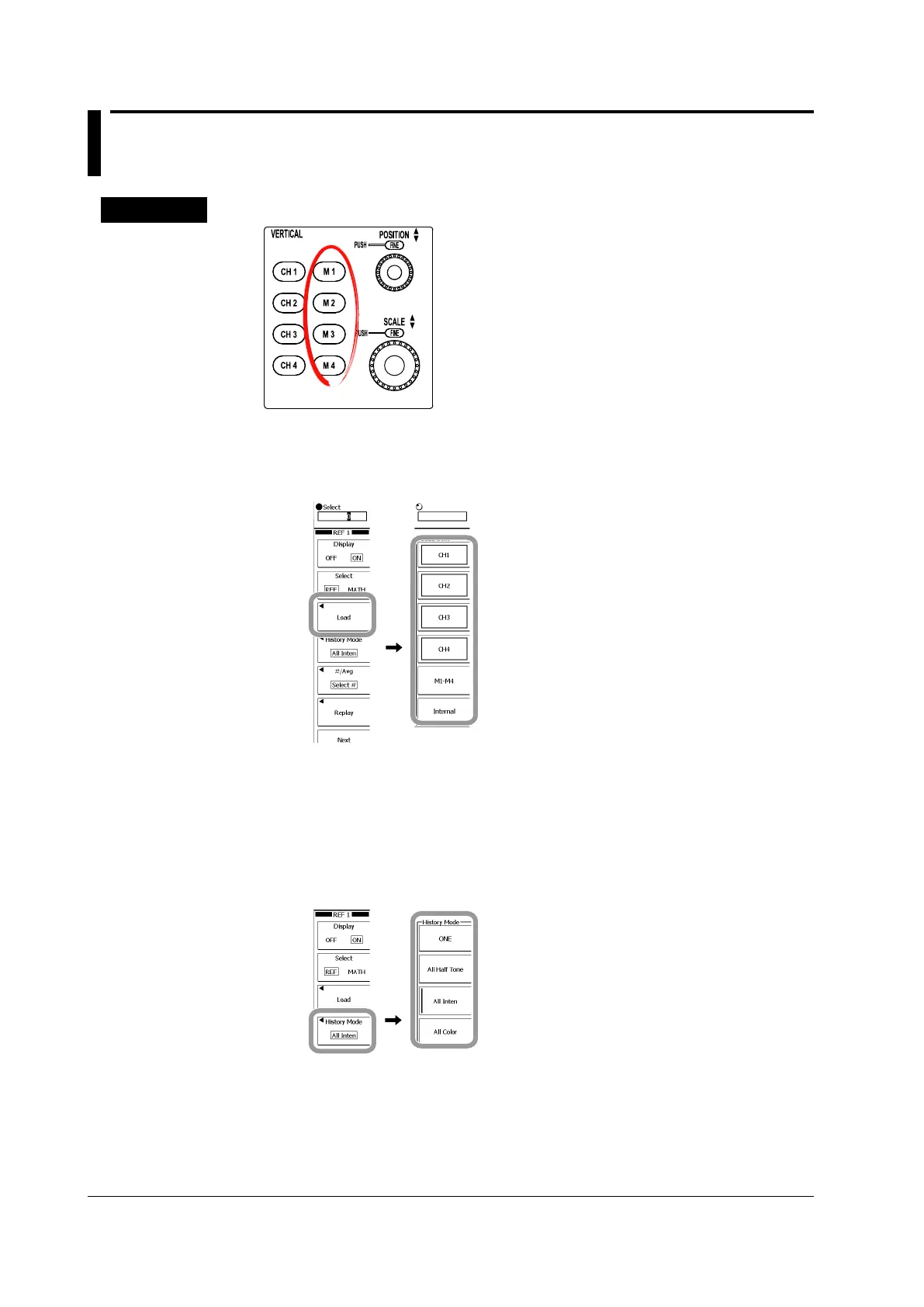

Press the key from M1 to M4 to display reference waveforms.

Press the Load soft key.

Press the soft key corresponding to the waveform to be loaded.

Selecting History Mode

Press the History Mode soft key

Press one of the following soft keys.

ONE: Displays only highlight waveforms selected in the following procedure

All Half Tone: Displays waveforms other than highlight waveforms in neutral color

All Inten: Displays the frequency of data appearance at intensity

All Color: Displays the frequency of data appearance in color
