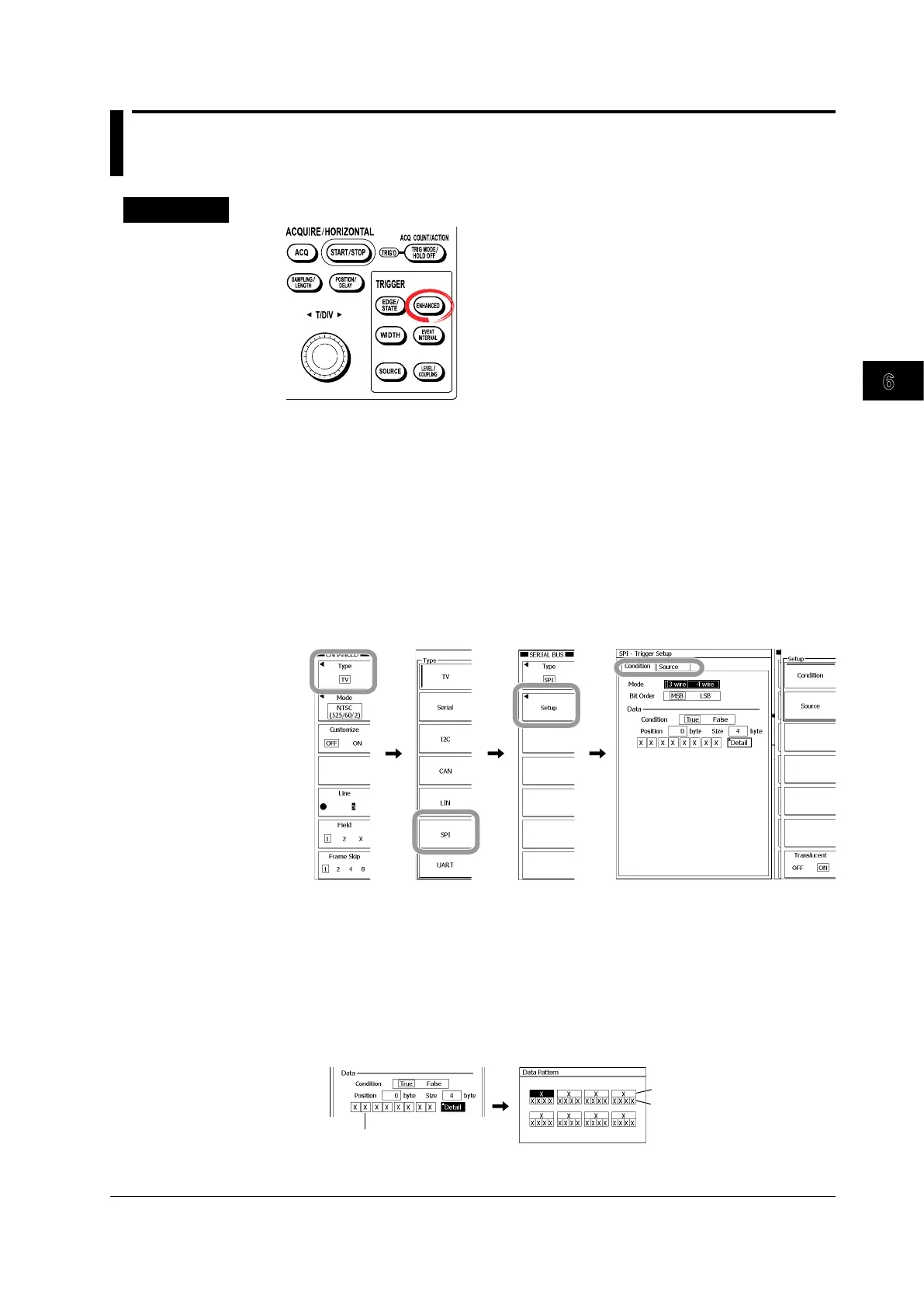

6.18 Triggering on a SPI Bus Signal
Procedure
1.
Press ENHANCED.
2.
Press these soft keys: Type > SPI > Setup.
The Setup dialog box appears.
Setting the Wiring System, Bit Order, and Data
3.
Use the rotary knob and SET to select the Condition tab.
You can also press the Condition soft key to select the tab.
Selecting the Wiring System and Bit Order
4.
Use the rotary knob and SET to set the mode to 3 wire or 4 wire and the bit order
to MSB or LSB.
Setting the Data Trigger Condition
5.
Use the rotary knob and SET to set the condition to True or False, and set the
position and size.
6.
Use the rotary knob and SET to set the data pattern to compare with.
• You can also set the data pattern by selecting Detail to open a dialog box and use the
rotary knob and SET and soft keys. When you are done setting the address pattern,
press
ESC
to return to the previous screen.
• If you select 4 wire in step 4, set Data 1 and Data 2.
Hexadecimal
Binary
Set the data pattern
(hexadecimal)
