15.9 Checking the Availability of the Ethernet

Interface

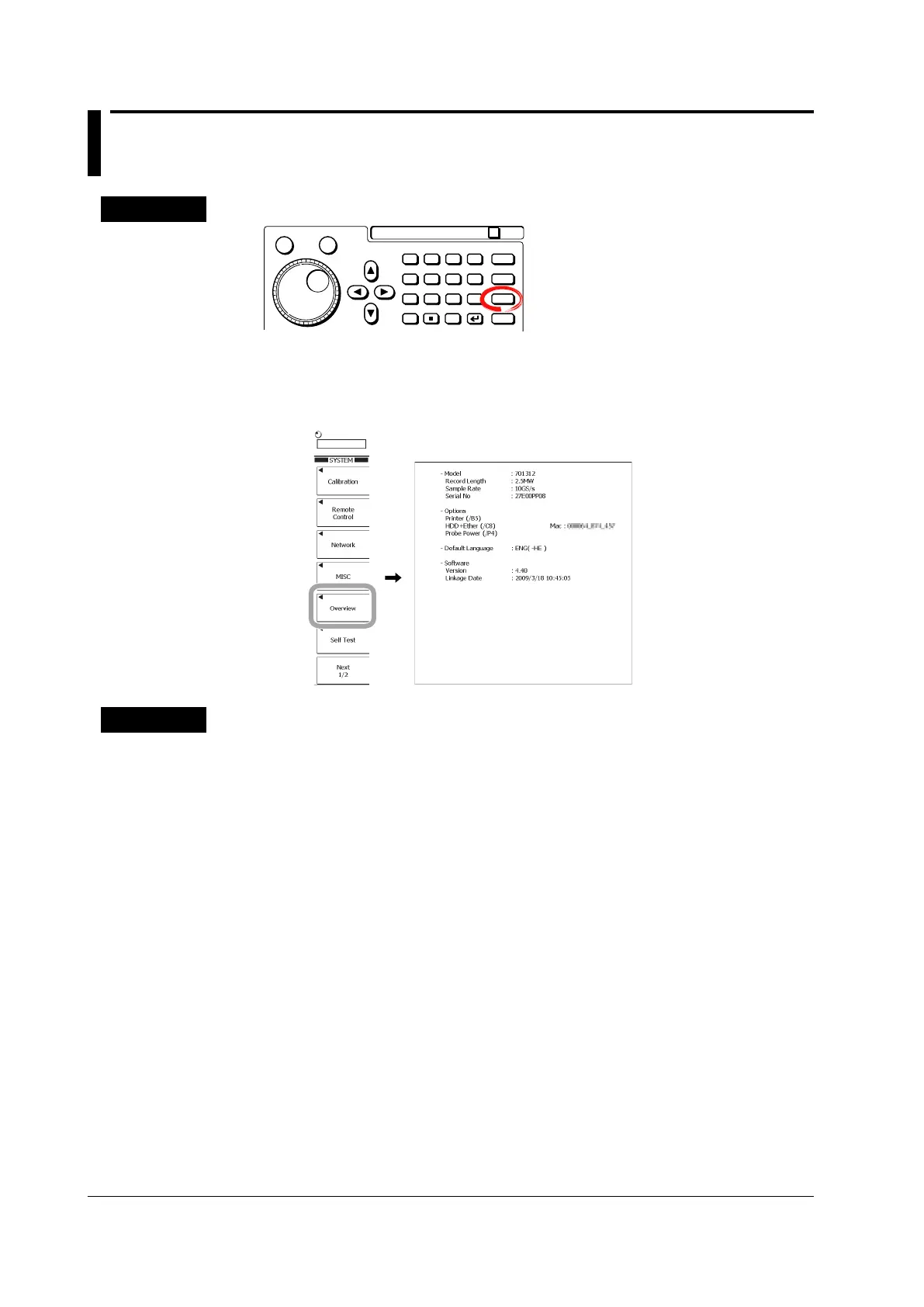

Procedure

RESET

SET

7 8 9

FILE

SHIFT

SYSTEM

EXP

CLEAR

D E F X

k m

u n p

4 5 6

1 2 3

+/-

CA B

Press SYSTEM.

Press the Overview soft key.

The Overview screen appears.

Explanation

This function allows you to check the Presence of the Ethernet Interface.

Presence of Ethernet Interface

Ether (/C10) or HDD+Ether (/C8) appears in the Overview screen.
