7.7 Displaying Accumulated Waveforms

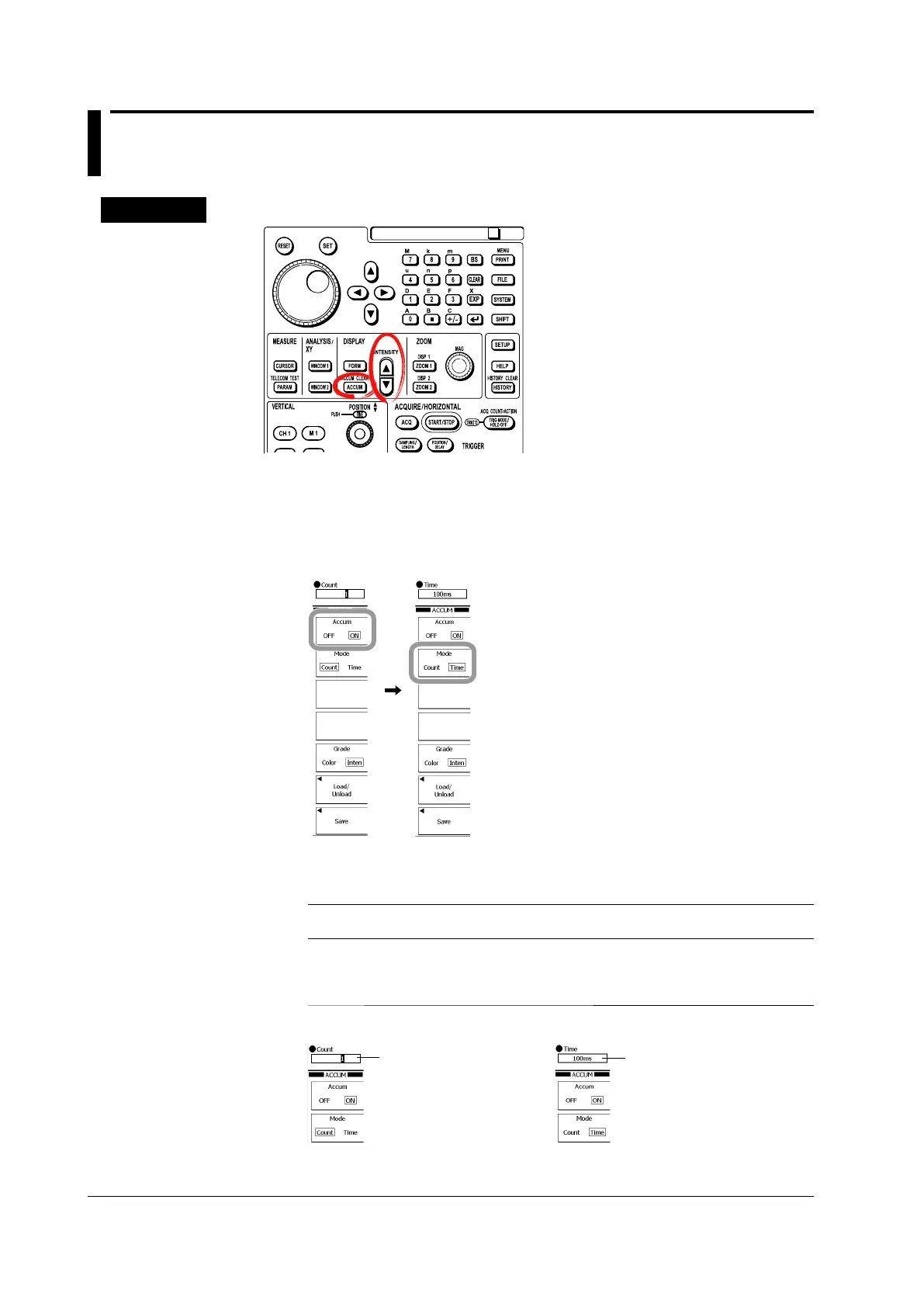

Procedure

Setting the Accumulation Mode

Press ACCUM.

Press the Accum soft key to switch accumulation ON.

Press the Mode soft key to select the accumulation mode.

Setting the Accumulation Count or the Accumulation Time

Use the rotary knob to set the value.

Count 0 (infinite)

1 to the number of history waveforms

Time Infinite

100 ms to 1 s, set in 100-ms intervals

1 s to 10 s, set in 0.2-s intervals

10 s to 100 s, set in 2-s intervals

When the accumulation mode is Count When the accumulation mode is Time

Accumulation count

Accumulation time

Default Chapter5
