15.3 Saving and Loading Measurement/Setup/Image
Data on a Network Drive
Procedure
RESET SET
7 8 9 BS
PRINT
FILE
SHIFT
SYSTEM
EXP
CLEAR
M
MENU
D E F X
k m
u n p
4 5 6
1 2 3
0
+/-
CA B

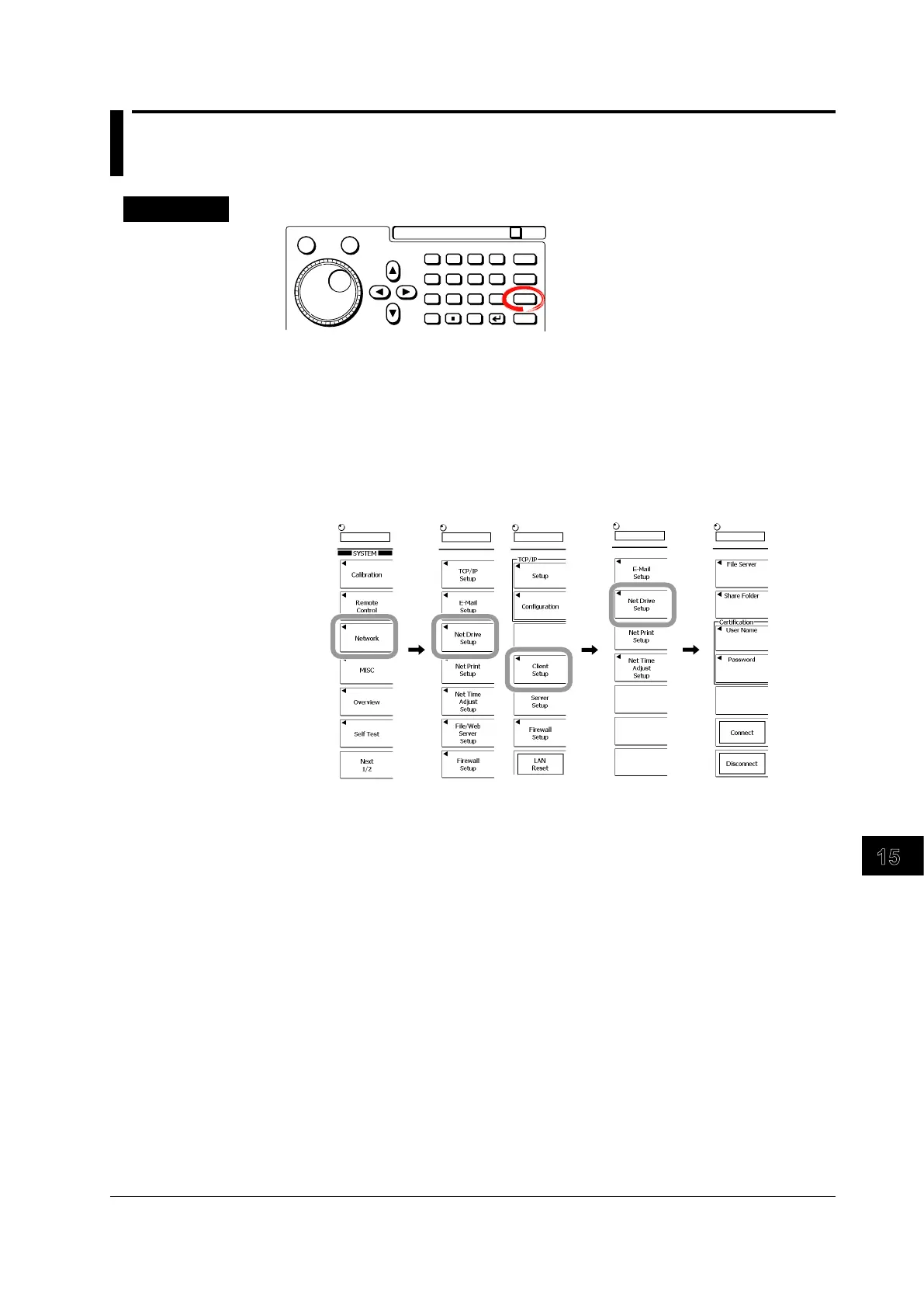

1.
Press SYSTEM.
On Models without the LXI Option (/C8 and /C10)
2.
Press these soft keys: Network > Net Drive Setup.
The Net Drive setup menu for that key appears.
On Models with the LXI Option (/C9 and /C12)
2.
Press these soft keys: Network > Client Setup > Net Drive Setup.
The Net Drive setup menu for that key appears.
Without the LXI option
With the LXI option With the LXI option
Setting a Network Drive to Be Connected
3.
Press the File Server soft key.
A screen appears, allowing you to set up server name for the file server.
4.
Enter the server name for the file server as described in section 4.2.
The IP address cannot be used to set up the file server.
5.
Press the Share Folder soft key.
A screen appears, allowing you to set up the shared folder name.
6.
Set up the folder name as described in section 4.2.
Setting User Name/Password
7.
Press the User Name soft key.
A screen appears, allowing you to set up a user name.
8.
Enter a user name using up to 30 characters as described in section 4.2.
9.
Press the Password soft key.
A screen appears, allowing you to set up a password.
10.
Enter a password using up to 30 characters for the user name as described in
section 4.2.
