2.10 Other Useful Functions
Entering Numeric and Text Data from a USB Keyboard â–ºFor the procedure, see
section 4.3
A USB keyboard can be connected, and used for entering file names and comments.
Since the functions of the keys on the DL9000 front panel are also assigned to keys on
the keyboard, the keyboard can be used in the same way as the keys on the DL9000
itself.

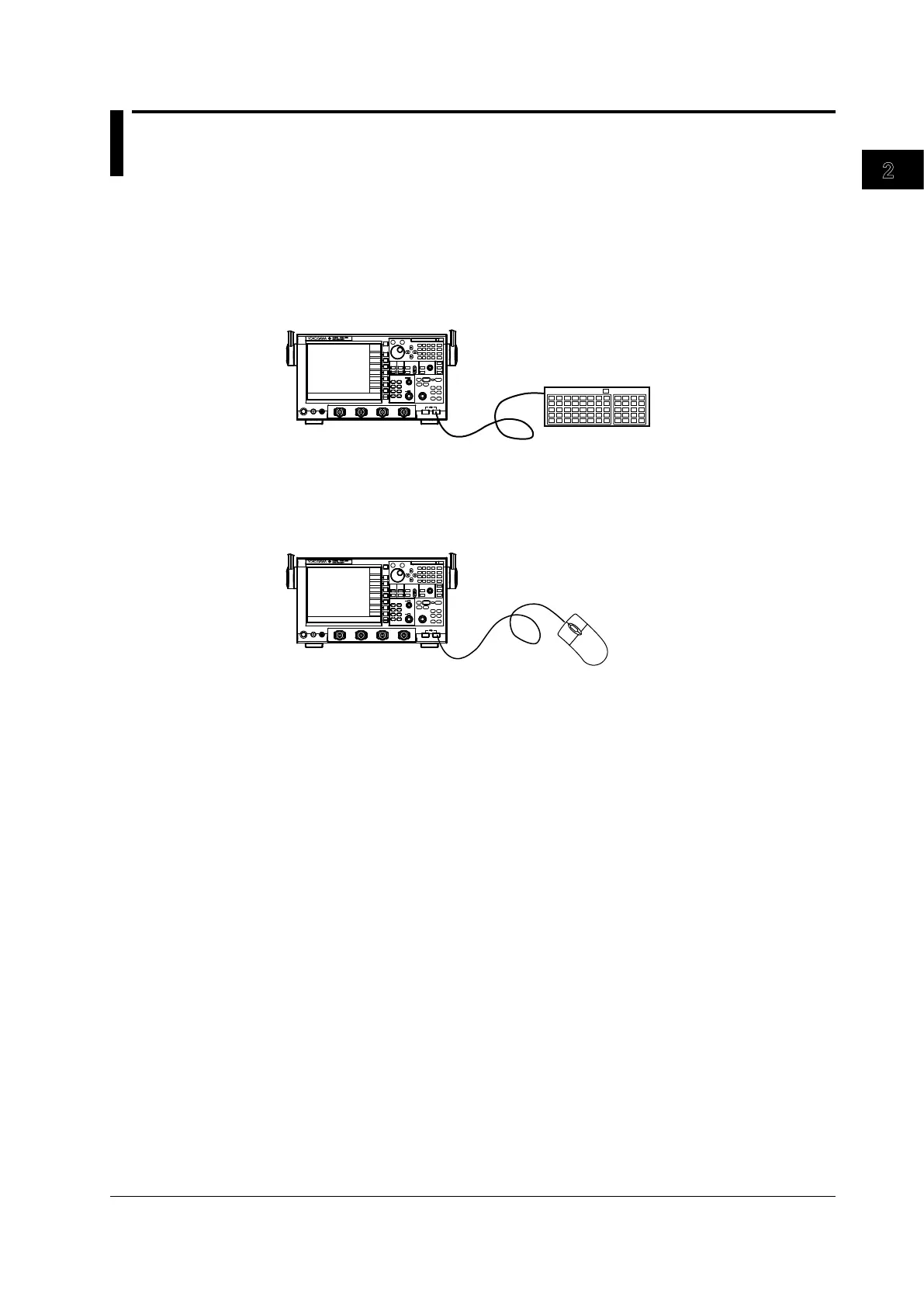

USB keyboard
USB
connection
DL9000
Operating the DL9000 Using a USB Mouse â–ºFor the procedure, see section 4.3
You can use a USB mouse to operate the DL9000 as you would using the front panel
keys. In addition, you can point to a desired item on a menu and click the item. This is
analogous to pressing a soft key corresponding to a menu and pressing the SET key.
Initialization â–ºFor the procedure, see section 4.4
You can return all settings to their default values. However, some of the settings are not
initialized (see section 4.4). To initialize all settings excluding the date/time setting (display
ON/OFF is initialized) to their factory defaults, turn ON the power while holding down the
RESET key. Release the RESET key after a beep sounds.
Auto Setup â–ºFor the procedure, see section 4.5
This function automatically sets the voltage axis, time axis, trigger settings, and other
settings to suit the input signal. This is useful when the characteristics of the input signal
are unknown. The auto setup function may not work depending on the input signal.
Serial Bus Auto Setup â–ºFor the procedure, refer to the Serial Bus Signal
Analysis Function User’s Manual
This feature automatically configures trigger, decode, and search settings based on a
serial bus signal. The auto setup feature may not work properly for some input signals.
The /F5, /F7, or /F8 option is needed to use this feature., or /F8 option is needed to use this feature.
Screen Image Printing â–ºFor the procedure, see chapter 12 and section 15.8
Screen images can be printed on the built-in printer (option), USB printer, or network
printer (when the Ethernet interface option is installed).
