NO-GO OUT Signal
When the determination result is “NO-GO”, the output signal level (TTL levels) goes
temporarily from high level to low level.
GO OUT signal
When the determination result is “GO”, the output signal level (TTL levels) goes
temporarily from high level to low level.

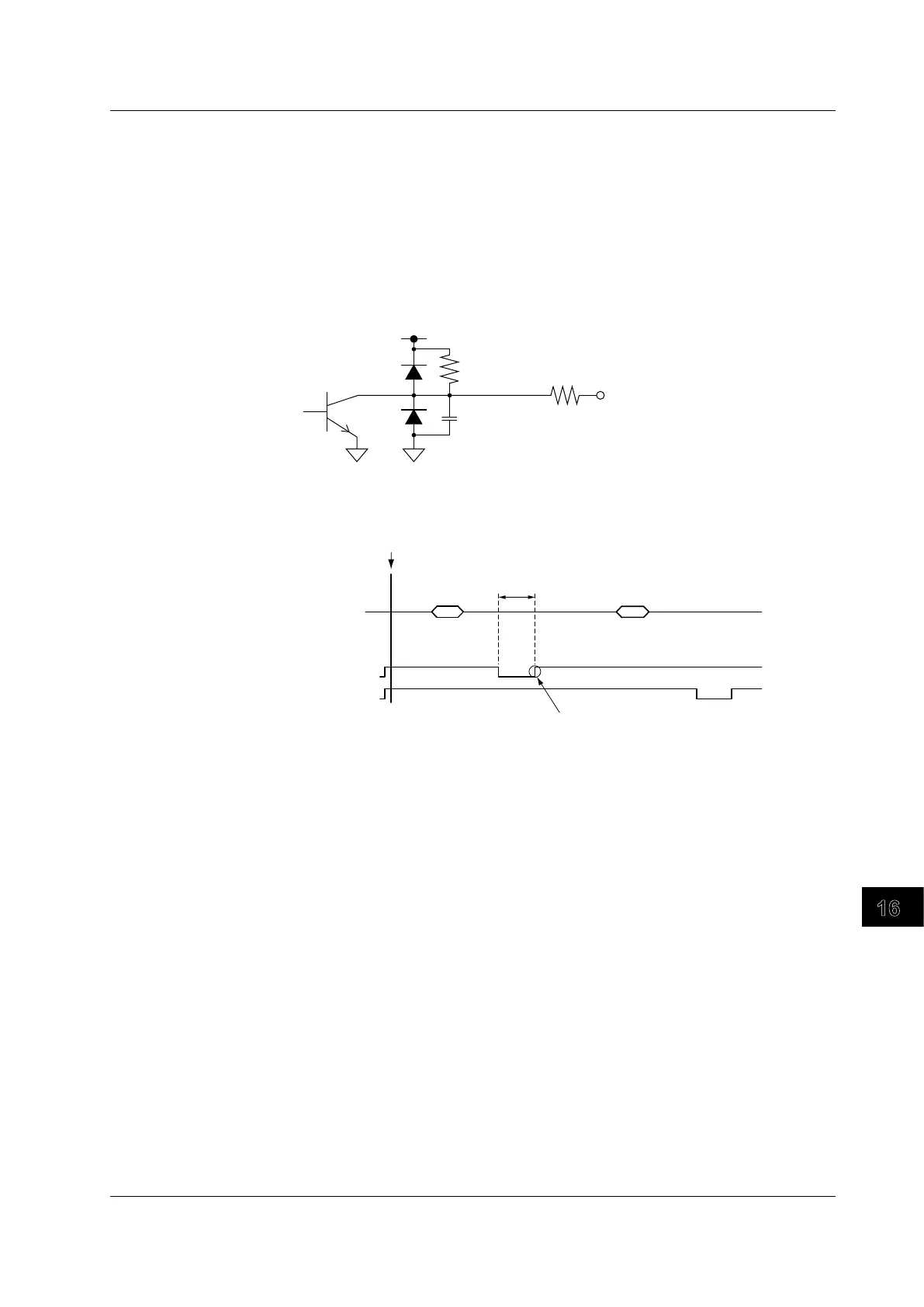

Signal Output Circuit Diagram
GO OUT
NO-GO OUT
5 V
120 Ω
4.7 kΩ
100 pF
GO/NO-GO Output Timing
Waveform
acquisition
Waveform
acquisition
Result
Measurement Measurement
Result
NO-GO OUT
GO OUT
Output timing
EXEC
5 µs
or more
The signal remains low until ready
to accept the next measurement.
If you have specified an action to
perform when conditions are true,
this time is extended until that
action is complete.
16.4 GO/NO-GO Signal Output
