8-14

IM 701310-01E

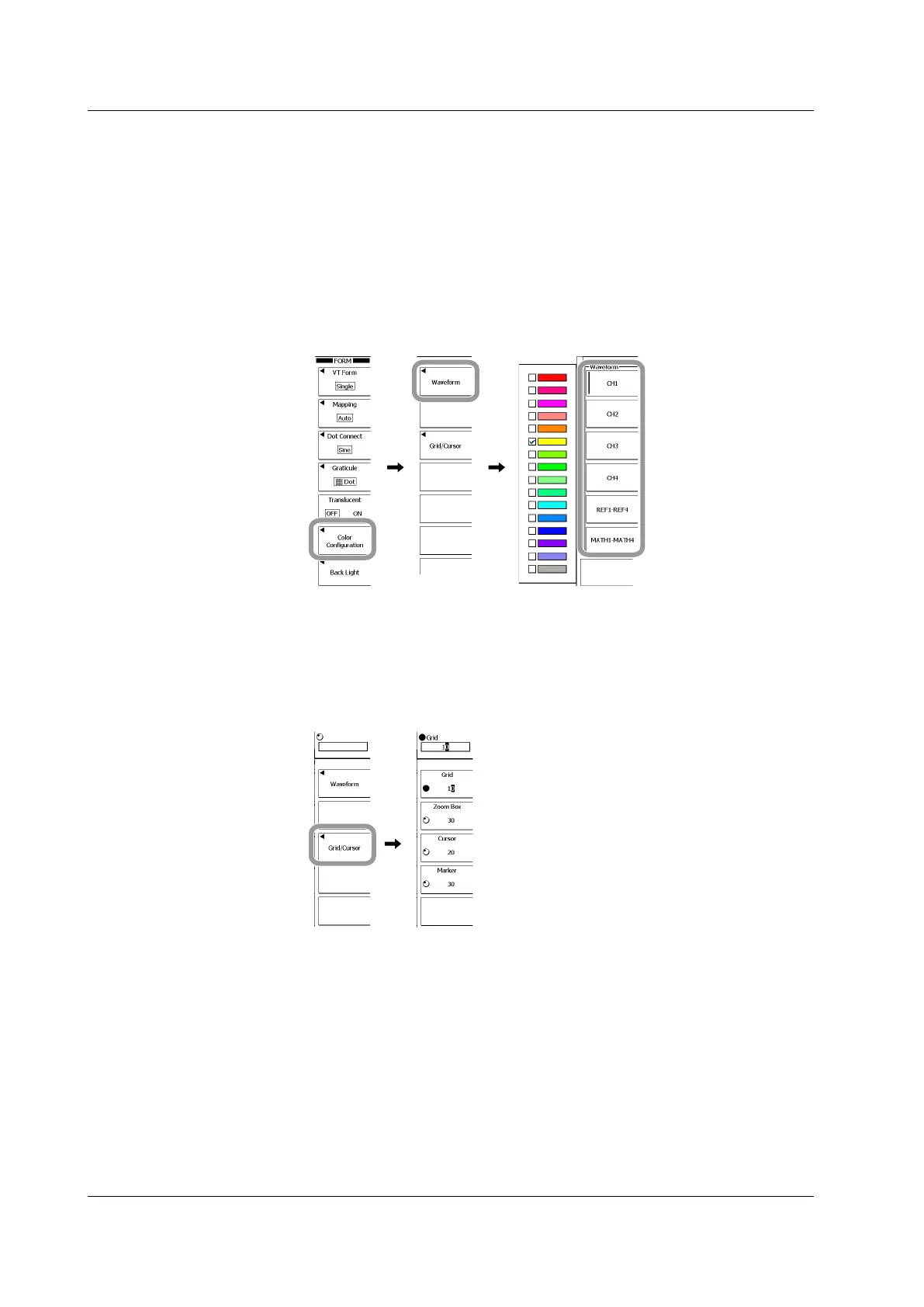

Setting the Display Color and Brightness

Press the Color Configuration soft key.

• Setting the Waveform Display Color

Press the Waveform soft key.

Press the appropriate waveform soft key.

• To select a channel from REF1 to REF4, press the

REF1-REF4

soft key first.

• To select a channel from MATH1 to MATH4, press the

MATH1-MATH4

soft key first.

Use the rotary knob and SET to select the color.

Press ESC to return to the previous screen.

• Setting the Brightness of the Grid, Zoom Box, Cursor, and Marker

Press the Grid/Cursor soft key.

Press a soft key from Grid to Marker soft key to select the item you want to

change the brightness of.

Use the rotary knob to set the brightness.

8.8 Setting the Translucent Display, Waveform Display Colors, and Brightness
