Selecting the Trigger Slope
6.

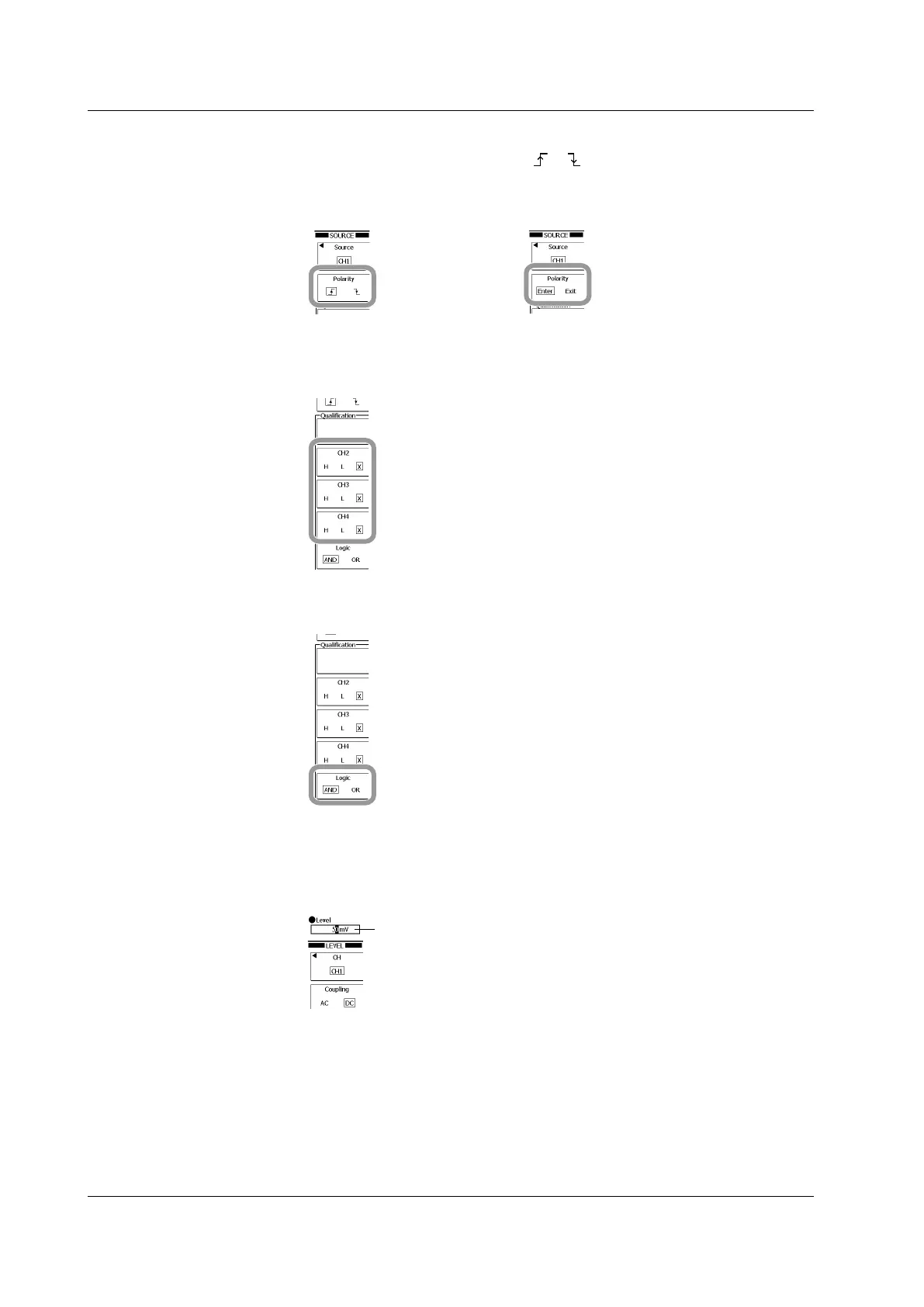

Press the Polarity soft key to select or .
If the trigger source is set to a signal that a window comparator is applied to, select Enter or
Exit.
Window comparator: OFF Window comparator: ON
Setting the Qualification
7.
Press the appropriate channel soft key to select H, L, or X.
When the window comparator is ON, select IN, OUT, or X.
Selecting the Logic
8.
Press the Logic soft key to select AND or OR.
Setting the Trigger Level
9.
Press LEVEL/COUPLING.
10.
Use the rotary knob to set the trigger level.
When the window comparator is ON, the trigger level is set to the window’s center position.
Trigger level
Setting the Trigger Coupling, HF Rejection, Trigger Hysteresis, and
Window Comparator (when the trigger source is CH1 to CH4)
11.
Set the items according to the procedure given in section 6.5.
Setting the Holdoff
12.
Set the items according to the procedure given in section 6.4.
6.7 Activating a Conditional Edge Trigger
