6-28
IM 701310-01E

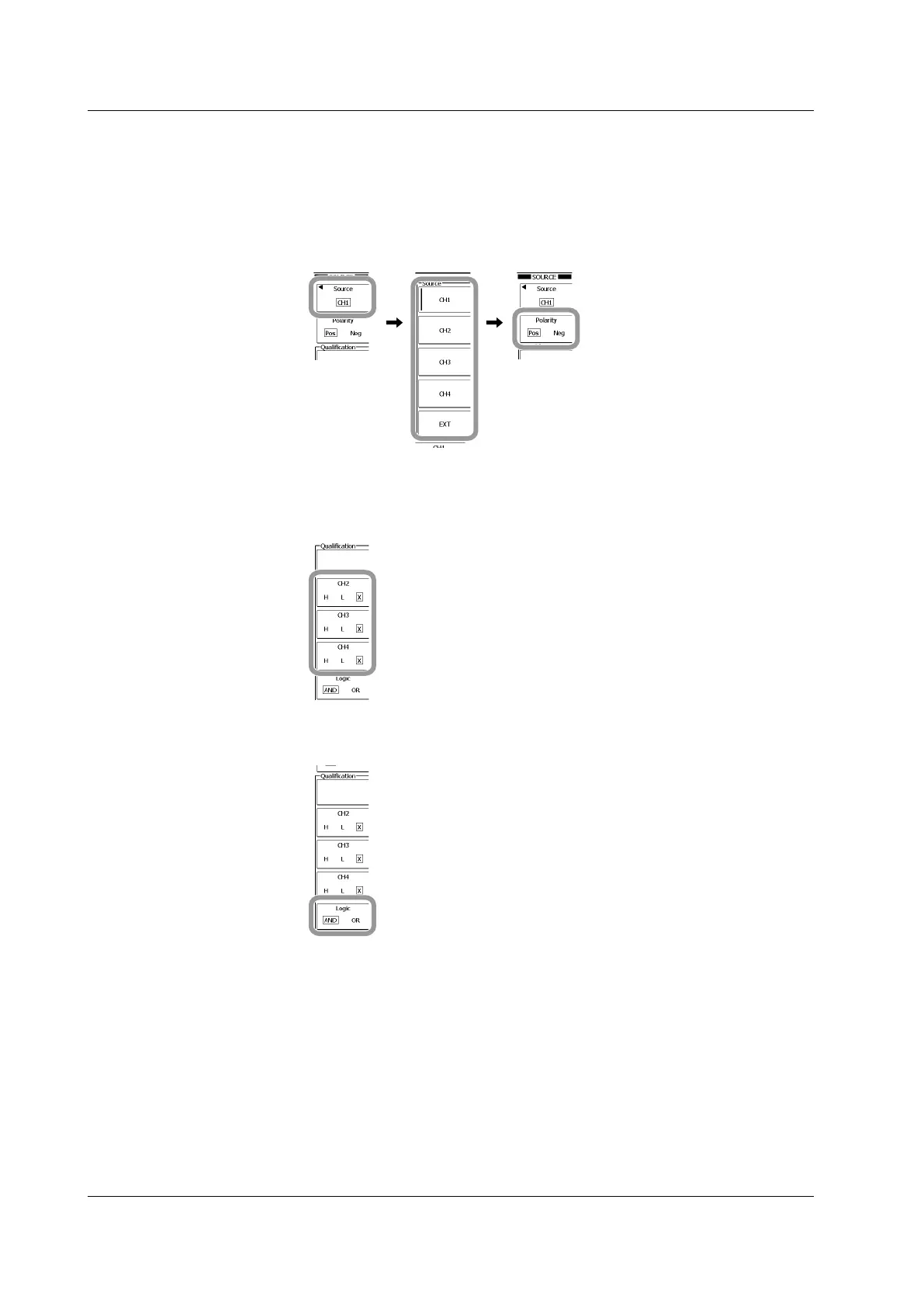

Selecting the Trigger Source
6.
Press SOURCE.
7.
Press the Source soft key.
8.
Press the appropriate trigger source soft key.
9.
Press the Polarity soft key to select Pos or Neg.
When the window comparator is ON, select IN or OUT.
Setting the Qualification
10.
Press the appropriate channel soft key to select H, L, or X.
When the window comparator is ON, select IN, OUT, or X.
Selecting the Logic
11.
Press the Logic soft key to select AND or OR.
Setting the Trigger Level
12.
Set the items according to the procedure given in section 6.6.
Setting the Trigger Coupling, HF Rejection, Trigger Hysteresis, and
Window Comparator (when the trigger source is CH1 to CH4)
13.
Set the items according to the procedure given in section 6.5.
Setting the Holdoff
14.
Set the holdoff according to the procedure given in section 6.4.
6.11 Activating a Trigger on a Conditional Pulse Width
