6-32
IM 701310-01E

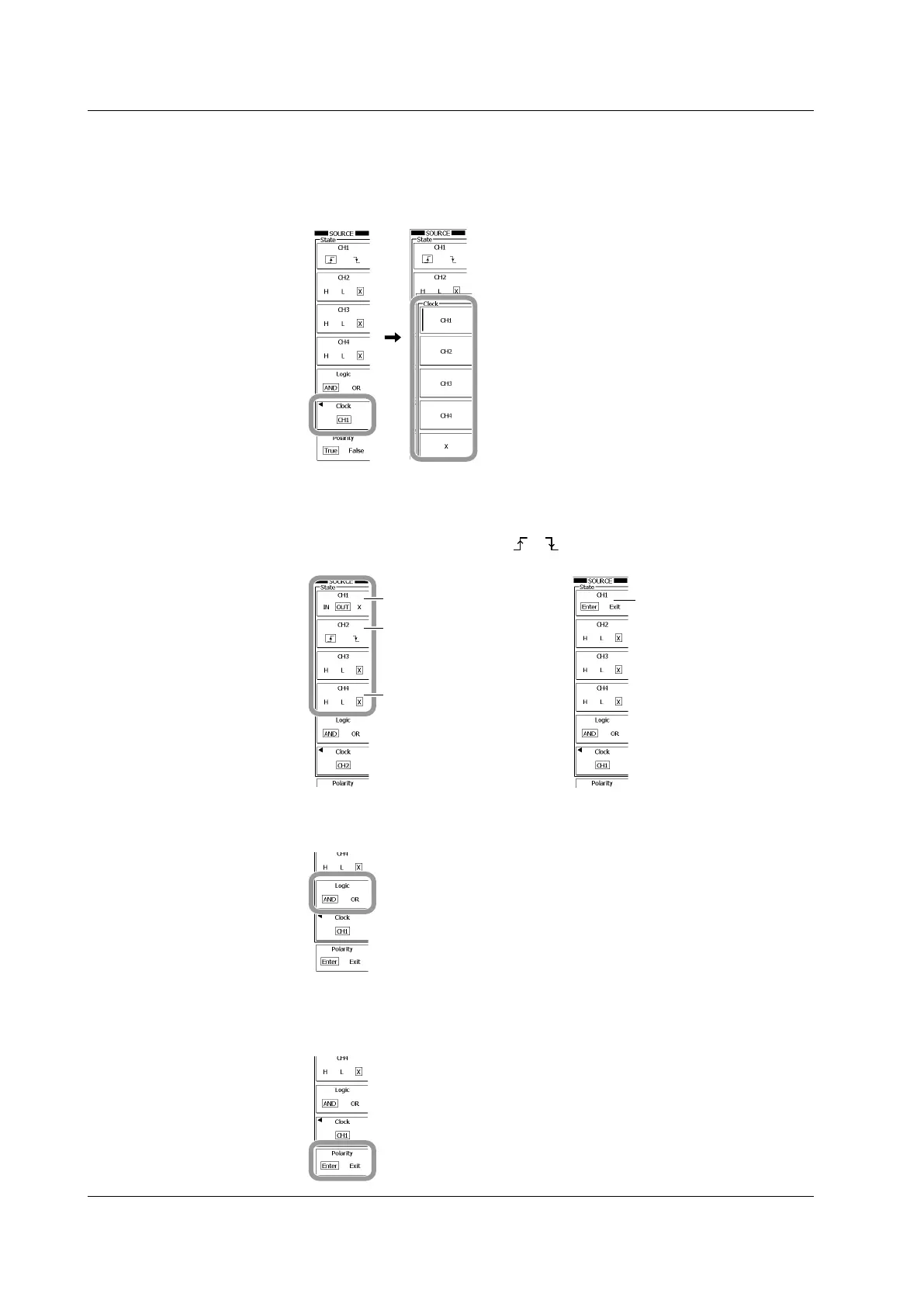

Selecting the Clock Source
6.
Press SOURCE.
7.
Press the Clock soft key to display the Clock menu.
8.
Press the appropriate clock source soft key.
Setting the State Condition
9.
Press each signal soft key to select H, L, or X.
• When the window comparator is ON, select IN, OUT, or X.
• For the clock source signal, select
or . When the window comparator is ON, select
Enter or Exit.
When the window comparator
is ON
Clock source with window
comparator turned OFF
When the window comparator
is OFF
Clock source with window
comparator turned ON
Selecting the Logic
10.
Press the Logic soft key to select AND or OR.
Selecting the False-to-True Condition Change or the True-to-False
Condition Change
11.
Press the Polarity soft key to select Enter or Exit.
6.12 Activating a Trigger on a State Condition True Period
To Next Page
