When the Mode Is ID/Data OR
Setting the ID/Data 1 to ID/Data 4 Trigger Conditions
5.
Use the rotary knob and SET to set ID/Data 1 to ON or OFF.
Select ON to enable the trigger condition. Select OFF to disable the trigger condition.
If you select OFF, proceed to step 10.
6.

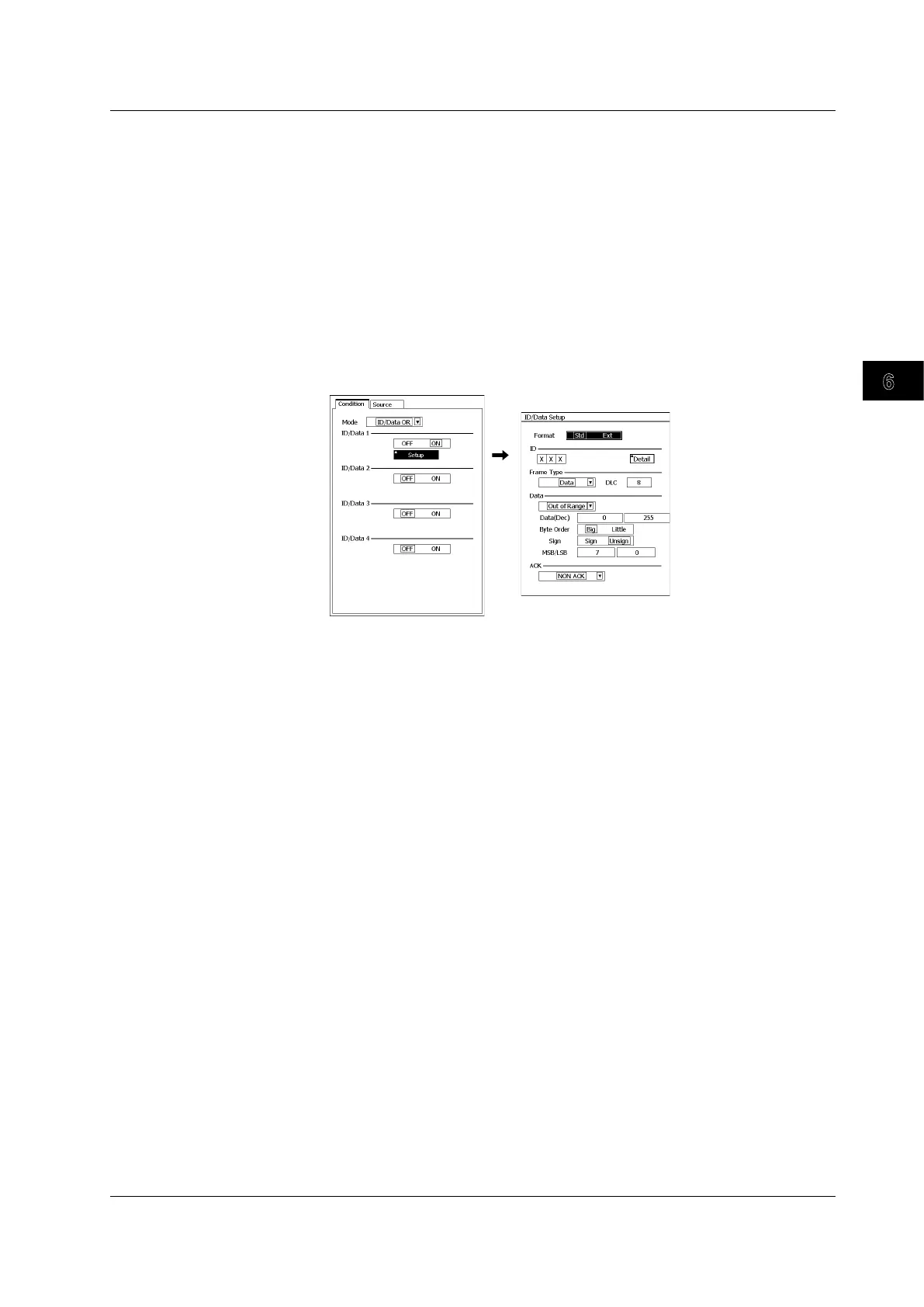

Use the rotary knob and SET to select ID/Data 1 Setup.
The ID/Data Setup dialog box appears.
7.
Use the rotary knob and SET to set the format to Std or Ext.
8.
Use the rotary knob and SET to set the ID, Frame Type, Data, and ACK trigger
conditions.
For the procedure to set each condition, see pages 6-57 and 6-58.
9.
Press ESC to return to the previous screen.
10.
Likewise, set ID/Data2 to ID/Data4 according to steps 5 to 9.
Proceed to step 12 on page 6-60.
6.16 Triggering on a CAN Bus Signal
