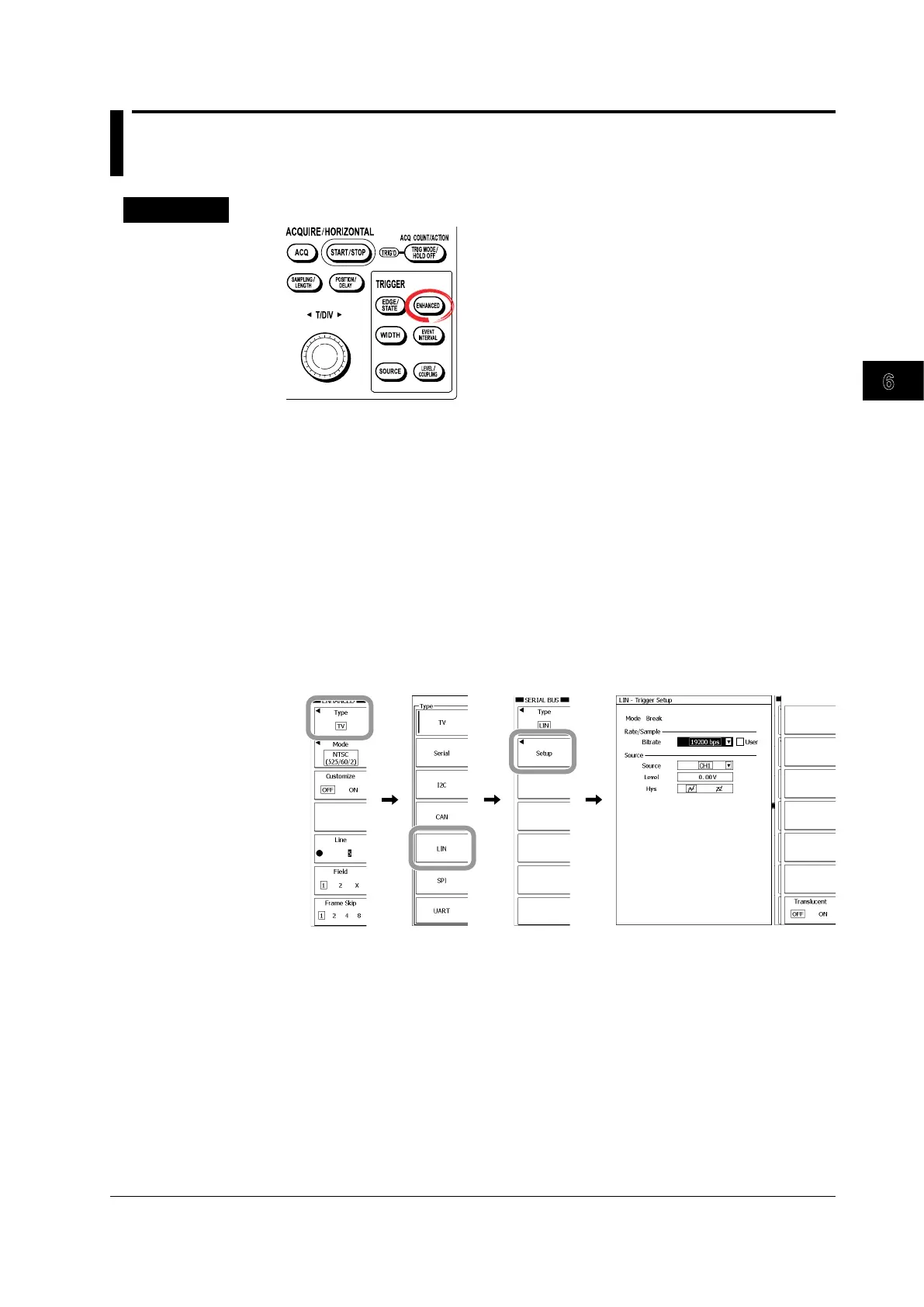

6.17 Triggering on a LIN Bus Signal
Procedure
1.
Press ENHANCED.
2.
Press these soft keys: Type > LIN > Setup.
The Setup dialog box appears.
Setting the Bit Rate
3.
Use the rotary knob and SET to select the bit rate from 19200bps to 1200bps.
If you select the
User
check box, you will be able to set the bit rate from 1000bps to
20000bps using the rotary knob and SET.
Setting the Trigger Level and Hysteresis
4.
Use the rotary knob and SET to select the source from CH1 to CH4.
5.
Use the rotary knob and SET to set the level and hysteresis.
To Next Page
