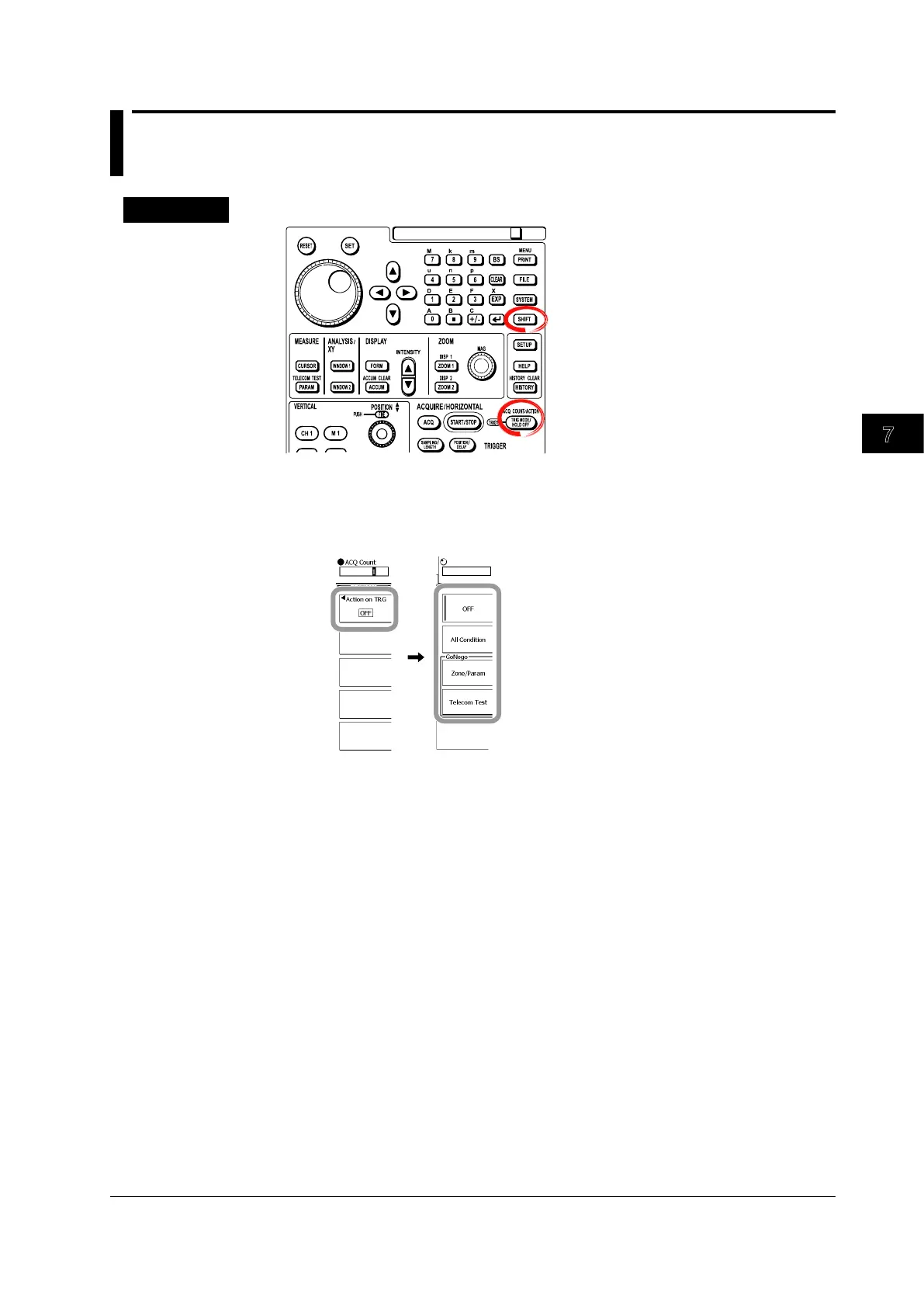

7.8 Setting theing theng the Action-On-Trigger Function

Procedure

Press SHIFT+TRIG MODE/HOLD OFF (ACQ COUNT/ACTION).

Press the Action on TRG soft key.

Press the soft key that corresponds to the appropriate mode.

• OFF

Acquires the set number of signals. No action is performed.

• All Condition

When a trigger is activated, the signal is acquired and the spe

cified actions

are performed. This stops when the signal has been acquired a set number of

times.

•

Zone/Param

See sections 7.10 to 7.15.

• T

elecom Test

See section 7.16.
