Acquisition and Display

7-23

IM 701310-01E

App

Index

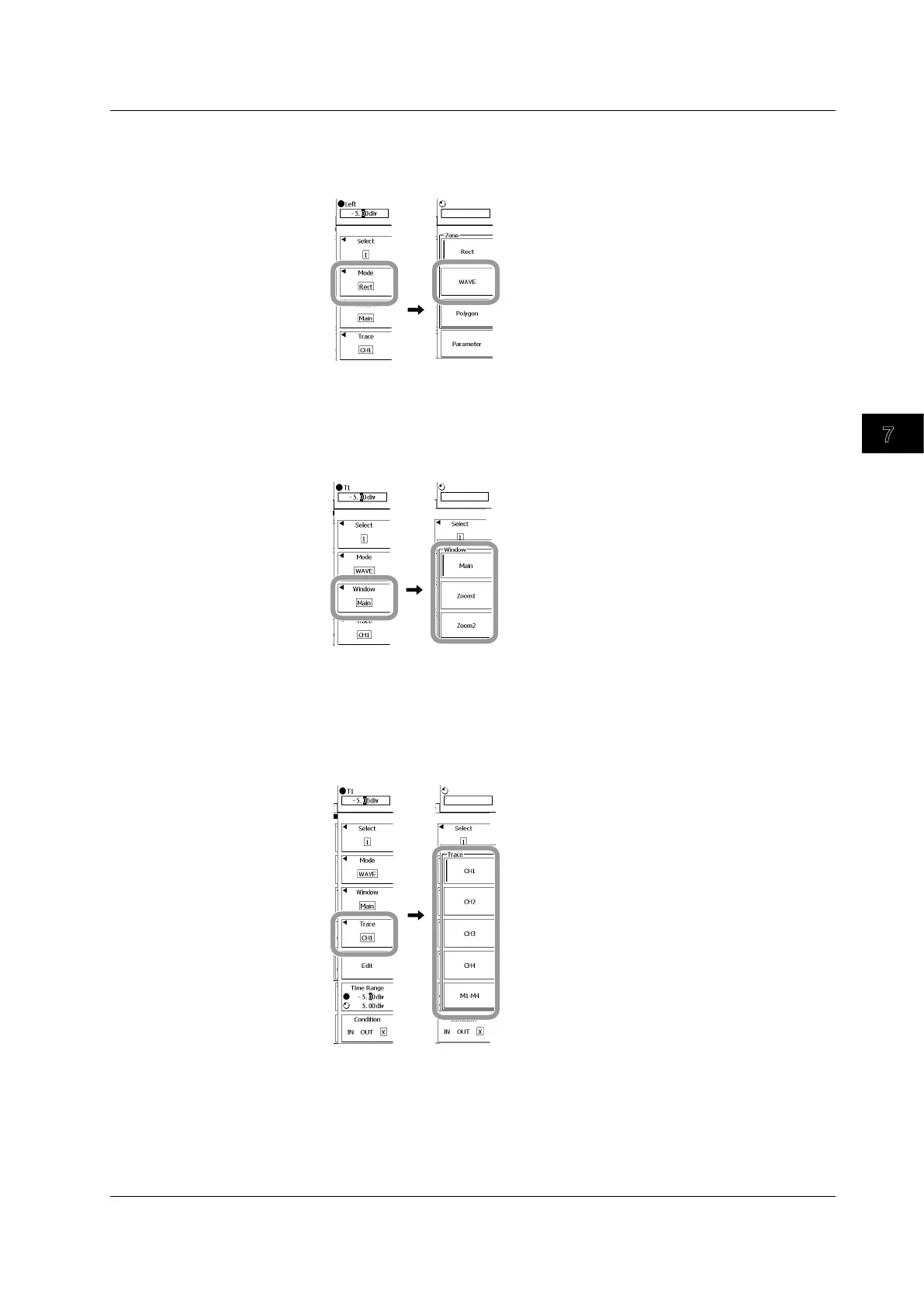

Setting the Determination Mode

Press these soft keys: Mode > WAVE.

This sets the determination mode to WAVE (waveform zone).

Selecting the Source Window

Press the Window soft key.

Select a soft key from Main to Zoom2 to select the window that you want to apply

the test to.

Selecting the Source Waveform

Press the Trace soft key.

Press the soft key that corresponds to the channel you want to determine the

GO/NO-GO results for.

To select a channel from M1 to M4, press the

M1-M4

soft key first.

7.10 Setting Waveform Zone GO/NO-GO Determination Conditions
